Description

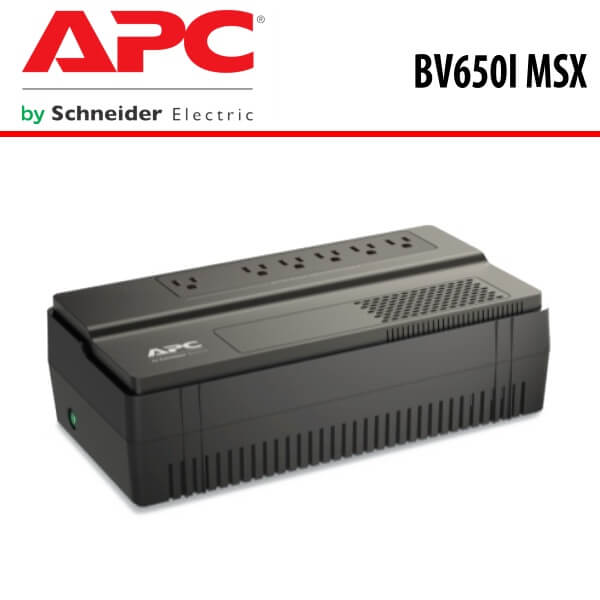

APC BV650I MSX Dubai

The APC BV650I MSX Dubai stands as an iconic Smart-UPS renowned globally for its unmatched reliability, especially in the realm of servers, storage, and networks. Its primary function is to safeguard vital data and equipment from potential power disturbances, ensuring a consistent supply of pristine, high-quality power. Boasting a sleek, contemporary design, the APC BV650I MSX Dubai can be positioned upright, flat, or mounted on a wall, seamlessly blending into any electronic arrangement and enhancing the overall home ambiance.

Features:

Protection
- Battery backup and surge protection : APC BV650I MSX Dubai is equipped with outlets which provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
- Battery and surge protected outlets : Back up and protect your hardware and data during power outages, surges and spikes.
Manageability
- LED Indicators : APC BV650I MSX Dubai is integrated with convenient LED indicators which provide easy-to-read status of the unit and utility power conditions.
- Audible alarms : Provides notification of changing utility power and UPS power conditions
Safety
- Safety-agency approved : Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Sleek design : APC BV650I MSX Dubai features a slim, modern design which can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR) : Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable : Provides temporary battery power when the utility power is out.
Transformer-block spaced outlets : Protect equipment with input transformer blocks without blocking access to other receptacles.
Availability
- Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features : Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification : Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Technical Specs :

Output

Max Configurable Power (Watts)

375Watts / 650VA

Output Frequency (not synced)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6ms typical : 10ms maximum

Input

Input frequency

50/60 Hz +/- 5 Hz (auto sensing)

Input voltage range for main operations

170 – 280V

Number of Power Cords

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

8hour(s)

Expected Battery Life (years)

3 – 5

Communications & Management

Control panel

LED Status display with On Line : On Battery

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

156Joules

Physical

Maximum Height

92MM, 9.25CM

Maximum Width

165MM, 16.5CM

Maximum Depth

305MM, 30.5CM

Net Weight

4.5KG

Shipping weight

4.8KG

Shipping Height

237MM, 23.7CM

Shipping Width

143MM, 14.3CM

Shipping Depth

373MM, 37.3CM

Color

Black

SCC Codes

1073130433833 5

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 90 %

Operating Elevation

0-2000.1meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 90 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

40.0dBA

Protection Class

IP 20

Conformance

Approvals

Sustainable Offer Status

RoHS

Compliant

REACH

REACH : Contains No SVHCs
