Description

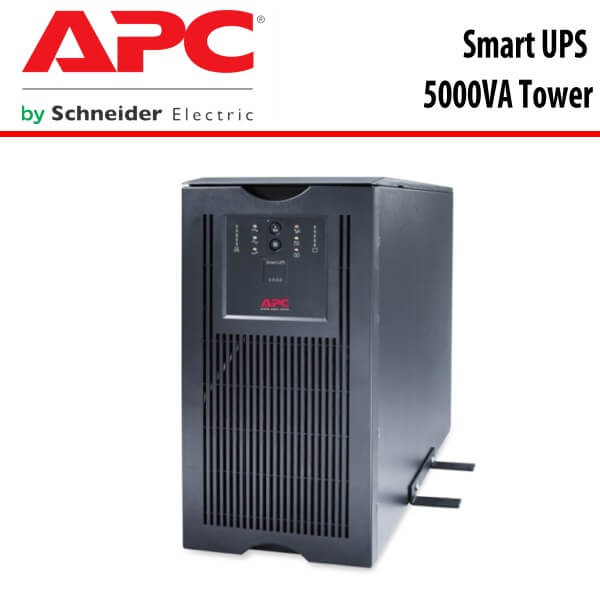

APC Smart-UPS-5000VA Tower Dubai
The APC Smart-UPS-5000VA Tower Dubai delivers expert power protection and reliable battery backup tailored for computer systems. Its advanced power management capabilities ensure secure system shutdown, keeping both systems and data safeguarded. For added convenience, the UPS can establish communication with a computer via serial connection to enable automatic shutdown during power failures. Equipped with 4 outlets, all providing battery backup, its battery facilitates an impressive 26.7 minutes of runtime at half-load capacity. Additionally, APC supports the UPS with a substantial $150,000 equipment protection policy.
Smart-UPS Features & Benefits
Manageability
- Network manageable
Provides remote power management of the UPS over the network.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Serial connectivity
Provides management of the UPS via a serial port.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
- Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED status indicators
Quickly understand unit and power status with visual indicators.
Serviceability
- User-replaceable batteries
APC Smart-UPS-5000VA Tower Dubai is integrated with powerful batteries which increase availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Resettable circuit breakers
Enables a quick recovery from overload events.
- Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
- Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
- Smarter productivity with ability to tailor to your specific application needs
The APC Smart-UPS-5000VA Tower Dubai is equipped with an Intuitive LCD interface which provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
APC Smart-UPS-5000VA Tower Dubai provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
- Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
- Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Availability
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
APC 5000VA Specs
General
| Total Outlets | 2 x NEMA L6-20R 2 x NEMA L6-30R |
| Plug Type | NEMA L6-30P |
| Data Line Protection | RJ45 |
| Communications | Serial via DE-9/DB-9 |
Power
| Surge Energy Rating | 480 Joules |
| Maximum Wattage | 4000 W |
| Nominal Input Voltage | 208 VAC |
| Input Voltage Adjustable Range | 131 to 268 VAC |
| Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) |
| Nominal Output Voltage | 208 VAC |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Voltage Distortion | <5% |
| Load Capacity | 5000 VA |
| Crest Factor | 5:1 |
| Waveform | Sine Wave |
Battery
| Chemistry | Lead-Acid |
| Full-Load Runtime | 9.4 Minutes |
| Half-Load Runtime | 26.7 Minutes |
| Replacement Battery | RBC55 |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | 23 to 131°F / -5 to 55°C |
| Operating Altitude | 10,000′ / 3000 m |
| Storage Altitude | 50,000′ / 15,000 m |
Physical
| Cable Length | 8′ / 2.4 m |
| Rackmount Size | 5 RU (with Included Hardware) |
| Dimensions (W x H x D) | 19 x 8.75 x 26″ / 48.3 x 22.2 x 66 cm |
| Weight | 215 lb / 97.7 kg |
Packaging Info
| Package Weight | 271.8 lb |
| Box Dimensions (LxWxH) | 38.9 x 23.8 x 16″ |
