Description

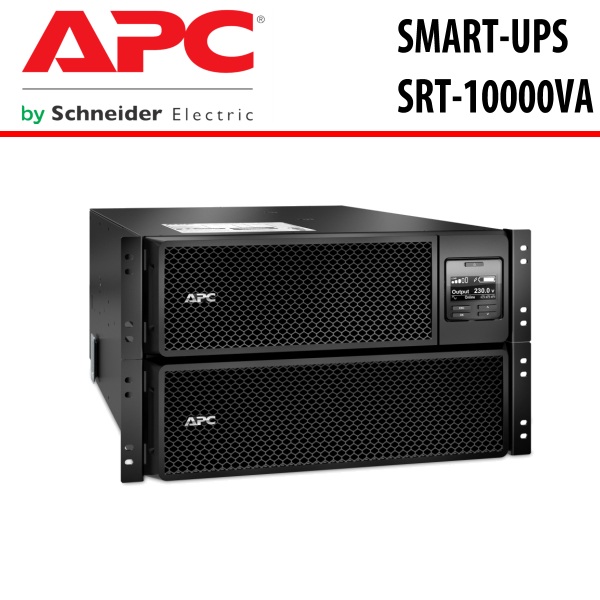

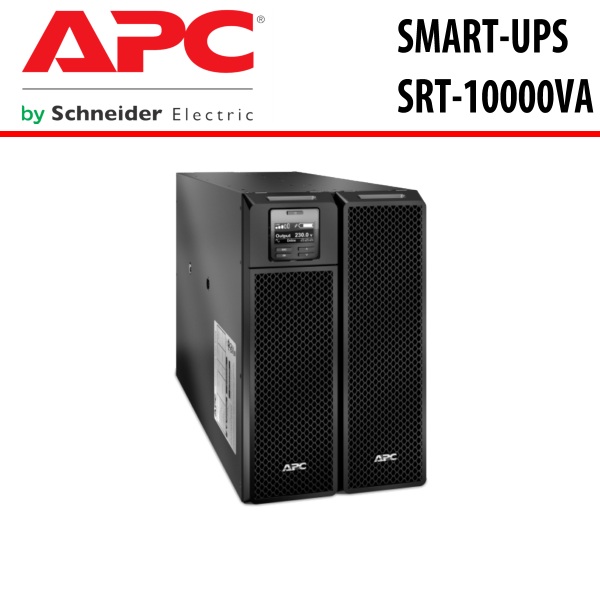

APC Smart-UPS SRT 10000VA Dubai

The APC Smart-UPS SRT 10000VA Dubai represents a versatile UPS engineered to withstand the most challenging power conditions worldwide. Offering high-density, true double-conversion online power protection, the Smart-UPS On-Line serves an array of critical applications, including servers, voice/data networks, medical labs, and light industrial setups. It supports loads from 1 to 20kVA in a convertible rack/tower design, with variations ranging from 2U to 12U. Recent extensions at 15 and 20kVA cater to power-intensive blade servers and heavily equipped equipment racks.

When business-critical systems require prolonged runtime, the Smart-UPS On-Line can be easily configured with compatible battery packs to meet aggressive runtime demands. The APC Smart-UPS SRT 10000VA Dubai comes equipped with PowerChute management software, enabling the seamless, unattended shutdown of network operating systems. Models of 5kVA and above are furnished with an integrated Network Management Card for convenient remote management (optional for models below 5 kVA). The entire Smart-UPS On-Line family is tailored to provide exceptional value to customers operating in demanding power environments, boasting a broad input voltage range, precise output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features

• Green mode
  • APC Smart-UPS SRT 10000VA Dubai has a patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
• Battery failure notification
  • APC Smart-UPS SRT 10000VA Dubai comes with convenient battery notifications which provide early-warning fault analysis on batteries enabling timely preventive maintenance
• LCD graphics display
  • Text and mimic diagrams that display modes of operation, system parameters and alarms
• 10/100 BaseT Connection
  • Connect the APC Smart-UPS SRT 10000VA Dubai to a network using a 10 or 100 BaseT connection
• Safety-agency approved
  • Ensures the APC Smart-UPS SRT 10000VA Dubai has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• ECO Mode
  • APC Smart-UPS SRT 10000VA Dubai has an integrated operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
• User-replaceable batteries
  • Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
• Rack/Tower convertible
  • Protects the initial investment in the APC Smart-UPS SRT 10000VA Dubai when migrating from tower to rack-mount environment.

Technical Specifications:

• Header
  • Manufacturer :APC
  • Brand :APC
  • Product Line :APC Smart-UPS SRT
  • Model :10000VA RM
  • Packaged Quantity :1
• General
  • Subcategory :UPS
  • Product Type :UPS
• Networking
  • Remote Management Interface :Ethernet 10/100, USB
• Expansion Slots
  • Expansion Slots :1 (total) / 1 (free) x SmartSlot
• Interface Provided
  • Interfaces :1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x serial – RJ-45
• Power Device
  • Form Factor :Rack-mountable
  • UPS Technology :On-line
  • Voltage Provided :AC 208/220/240 volt
  • Voltage Provided Margin :± 3%
  • Frequency Provided :50/60 hertz
  • UPS Output Waveform :Sinewave
  • Power Provided :10 kilograms per millimetere
  • Power Capacity (VA) :10000 volt ampere per kilogram
  • Voltage Required :AC 208/220/240 volt
  • Input Voltage Range :AC 160 – 275 V
  • Input Voltage Range (Adjustable) :AC 100 – 275 V
  • Frequency Required :40 – 70 hertz
  • Input Connector Type :Hardwire 3-wire (1PH + N + G), Hardwire 5-wire (3PH + N + G)
  • Output Connector Qty :14
  • Surge Suppression :Yes
  • Surge Energy Rating :480 joules
  • Efficiency :98%
  • Power Device Features :Audible alarm, LCD display
• Power Output Connectors Details
  • Power Output Connectors Details :1 x hardwire 3-wire (HN + G), 3 x IEC connector, 4 x power IEC 60320 C19, 6 x power IEC 60320 C13
• Battery
  • Run Time (Up To) :4 minute (time unit)
  • Load Type :At full load
  • Recharge Time :1.5 Hours
  • Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
• Run Time Details
  • Run Time (Up To) :11 min at half load, 4 min at full load
• UPS
  • Batteries Qty :2
  • Battery Technology :Lead acid
• Miscellaneous
  • Color :Black
  • Color Category :Black
  • Height (Rack Units) :6
  • Compliant Standards :CSA C22.2 No. 107.3, FCC Part 15 A, IP20, REACH, RoHS, UL 1778
• Environmental Standards
  • ENERGY STAR :Yes
• Dimensions & Weight
  • Width :17 inch
  • Depth :28.1 inch
  • Height :10.4 inch
  • Weight :245.99 lbs
• Dimensions & Weight (Shipping)
  • Shipping Width :23.6 inch
  • Shipping Depth :3.3 ft
  • Shipping Height :18.1 inch
  • Shipping Weight :286 lbs
• Service & Support
  • Type :3-year warranty
• Service & Support Details
  • Service & Support :Limited warranty – 3 years, Limited warranty – batteries – 2 years
• Environmental Parameters
  • Min Operating Temperature :32 degree Fahrenheit
  • Max Operating Temperature :104 degree Fahrenheit
  • Humidity Range Operating :0 – 95% (non-condensing)
  • Sound Emission :55 dBA
