Description

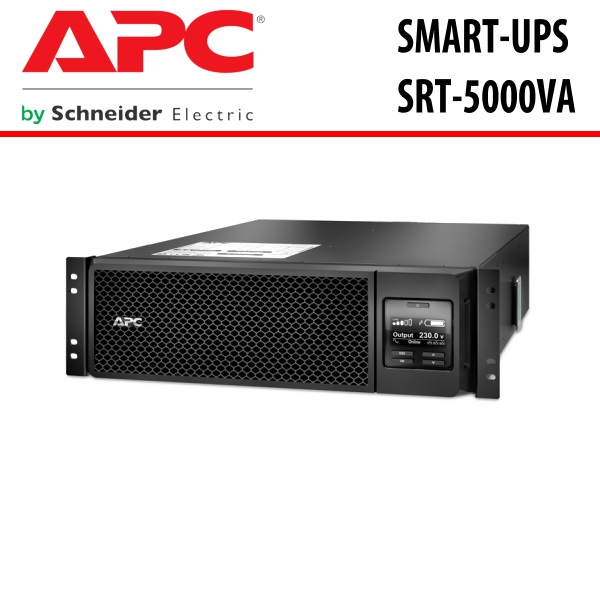

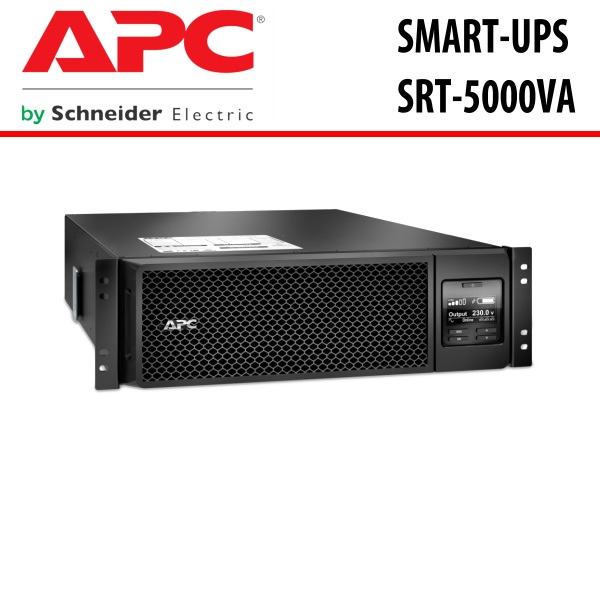

APC Smart-UPS SRT 5000VA Dubai
The APC Smart-UPS SRT 5000VA Dubai represents a highly adaptable UPS engineered to withstand the most challenging power conditions worldwide. Offering comprehensive, true double-conversion online power protection, it is tailored to serve servers, voice/data networks, medical labs, and light industrial setups. With the capability to support loads ranging from 1 to 20Kva in a convertible rack/tower design, the APC Smart-UPS SRT 5000VA Dubai comes in sizes spanning 2U to 12U. Recent expansions of the product line at 15 and 20Kva cater to the needs of power-intensive blade servers and heavily equipped equipment racks.
When critical business systems demand hours of runtime rather than mere minutes, the Smart-UPS online can be easily configured with corresponding battery packs to meet demanding runtime requirements. Enhanced with robust management software, it facilitates the seamless, automatic shutdown of network operating systems when necessary. For streamlined remote management, models of 5Kva and above are equipped with an integrated network management card (optional for models below 5 kVA). The Smart-UPS online family ensures a dependable source of uninterrupted power, even in the most rigorous power environments, boasting an exceptionally wide input voltage window, precise output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Features & Benefits
Availability
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Scalable runtime
Allows additional run time to be quickly added as needed.
Adaptability
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Serviceability
- Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Audible alarms
Provides notification of changing utility power and UPS power conditions
Serviceability
- Predictive failure notification.
This advanced feature of the APC Smart-UPS SRT 5000VA Dubai provides early-warning fault analysis ensuring proactive component replacement.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Protection
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances
Marketing features
- Avoids costly power problems by keeping your IT equipment and data protected and available .
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
The APC Smart-UPS SRT 5000VA Dubai provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Low operating and maintenance costs with proven reliability and intelligent battery management .
Intelligent battery management, pioneered by APC Smart-UPS SRT 5000VA Dubai , maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Technical Specifications
Output power capacity: 4.5 KWatts / 5.0 kVA
Max Confidurable Power: 4.5 KWatts / 5.0 kVA
Nominal Output Voltage: 230V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform Type: Sine Wave

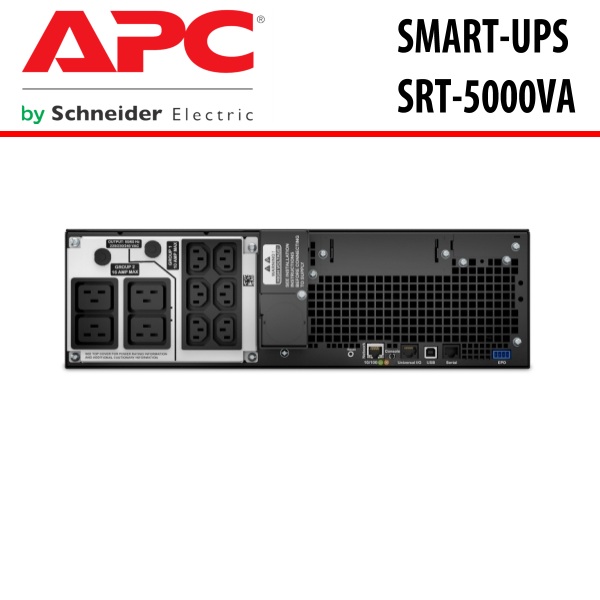

Output Connections: (6) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (4) IEC 320 C19 (Battery Backup)
Bypass: Internal Bypass (Automatic and Manual)
Nominal Input Voltage: 230V
Input Frequency: 40 – 70 Hz (auto sensing)
Input Connections: Hard Wire 3 wire (1PH+N+G)
Input Voltage range for main operations: 160 – 275V
Input voltage adjustable range for mains operation: 100 – 275 (half load)V
Other Input Voltages: 220, 240
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules: 2
Typical recharge time: 1.5hour(s)
Nominal Battery Voltage: 192V
Expected Battery Life (years): 3 – 5
Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Available SmartSlot™ Interface Quantity: 1
Surge energy rating: 480Joules
