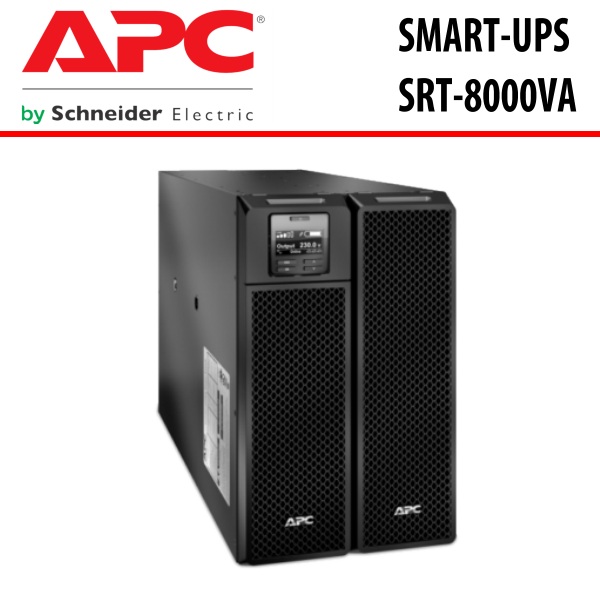

APC Smart-UPS SRT 8000VA Dubai

APC Smart-UPS SRT 8000VA Dubai

The APC Smart-UPS SRT 8000VA Dubai integrates the Smart-UPS On-Line technology, delivering comprehensive, true double-conversion online power protection for a variety of critical applications including servers, voice/data networks, medical labs, and light industrial settings.

Category:

Description

APC Smart-UPS SRT 8000VA Dubai

The APC Smart-UPS SRT 8000VA Dubai integrates the Smart-UPS On-Line technology, delivering comprehensive, true double-conversion online power protection for a variety of critical applications including servers, voice/data networks, medical labs, and light industrial settings. Offering flexibility, it supports loads ranging from 1 to 20kVA in a convertible rack/tower format, with sizes available from 2U to 12U.

Customers relying on the APC Smart-UPS SRT 8000VA Dubai benefit from a dependable power supply, even in challenging power environments. Notably, it features a wide input voltage range, precise output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Key Features

  • Max Configurable Power (Watts) – 8.0 KWatts / 8.0 kVA
  • Output Connections – 6x IEC 320 C13 (Battery Backup), 4x IEC 320 C19 (Battery Backup), 1x Hard Wire 3-wire (H N + G) (Battery Backup), 3x IEC Jumpers (Battery Backup)
  • Input Connections – Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Interface Port(s) – RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
  • Green mode
    • APC Smart-UPS SRT 8000VA Dubai has a patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
  • Battery failure notification
    • APC Smart-UPS SRT 8000VA Dubai comes with convenient battery notifications which provide early-warning fault analysis on batteries enabling timely preventive maintenance
  • LCD graphics display
    • Text and mimic diagrams that display modes of operation, system parameters and alarms
  • 10/100 BaseT Connection
    • Connect the APC Smart-UPS SRT 8000VA Dubai to a network using a 10 or 100 BaseT connection
  • Safety-agency approved
    • Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • ECO Mode
    • APC Smart-UPS SRT 8000VA Dubai has an integrated operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
  • User-replaceable batteries
    • Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

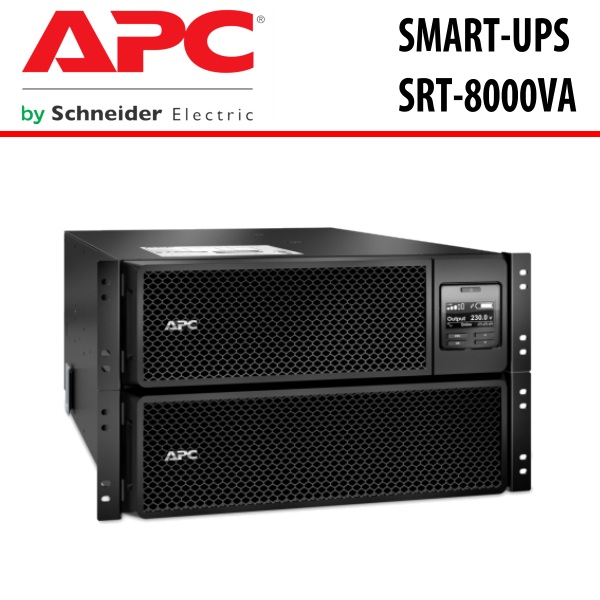

  • Rack/Tower convertible
    • Protects the initial investment in the APC Smart-UPS SRT 8000VA when migrating from tower to rack-mount environment.

APC Smart-UPS SRT 8000VA – Technical Specifications

Device Type UPS – rack-mountable
Height (Rack Units) 6U
Color Black

Power Device

UPS Technology On-line
Input Voltage AC 230 V
Frequency Provided 50/60 Hz
Frequency Required 45 – 65 Hz
Input Connectors Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details 6 x power IEC 60320 C13
4 x power IEC 60320 C19
1 x hardwire 3-wire (HN + G)
3 x IEC connector
Output Voltage AC 230 V ± 3% – 50/60 Hz
Power Capacity 8000 Watt / 8000 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 480 Joules
Efficiency 98%

Battery

Technology Lead acid
Run Time (Up To) 5.3 min at full load
14.8 min at half load
Recharge Time 3 hours
Features Maintenance free, sealed, leak-proof

Networking

Remote Management Interface Ethernet 10/100, USB

Expansion / Connectivity

Interfaces 1 x management (Ethernet) – RJ-45
1 x management (USB) – 4 pin USB Type B
1 x EPO (emergency power off)
1 x serial – RJ-45
Expansion Slots 1 (total) / 1 (free) x SmartSlot

Miscellaneous

Features Audible alarm, LCD display
Compliant Standards C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC

Software / System Requirements

Software Included APC PowerChute Business Edition

Manufacturer Warranty

Service & Support Limited warranty – 3 years
Limited warranty – batteries – 2 years

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 – 95% (non-condensing)
Sound Emission 55 dBA

Dimensions & Weight

Width 43.2 cm
Depth 71.5 cm
Height 26.3 cm
Weight 111.82 kg

Dimensions & Weight (Shipping)

Shipping Width 60 cm
Shipping Depth 1 m
Shipping Height 46.1 cm
Shipping Weight 130 kg
