Description

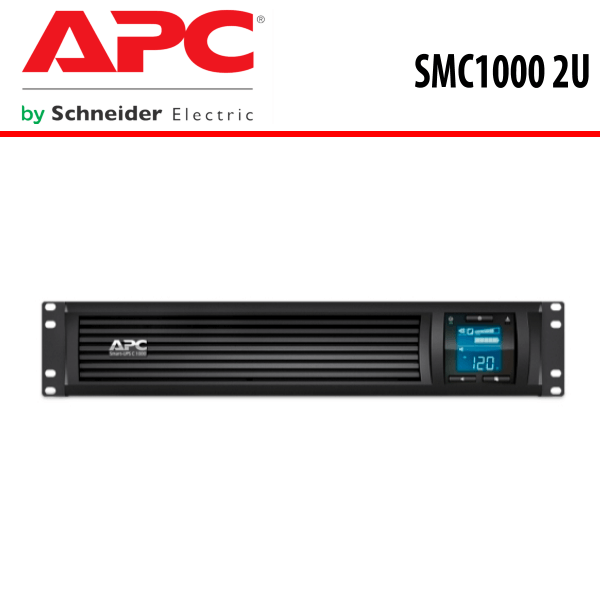

APC SMC1000 2U Dubai

The APC SMC1000 2U Dubai stands as a clever UPS option, ideal for cost-conscious small and medium businesses seeking to shield their entry-level servers, small switches, networking tools, and point-of-sale (POS) systems. Embodying the reliability associated with the world’s most favored network and server UPS, the APC SMC1000 2U Dubai caters to the demands of entry-level applications. With its abundant battery backup power, it efficiently sustains operations during moderate power outages, while also warding off detrimental surges and spikes that traverse utility and data lines. Additionally, the APC SMC1000 2U Dubai boasts an automatic voltage regulation (AVR) feature, promptly adjusting high and low voltages to secure levels, ensuring uninterrupted work even amidst brownouts and overvoltages. This Smart-UPS model also integrates eco-friendly characteristics, including power-saving outlets that automatically deactivate idle peripherals. Its high efficiency charging system and “AVR Bypass” contribute to reduced power consumption. Alongside its standard attributes, the APC SMC1000 2U Dubai proves to be the perfect solution to safeguard your productivity against the persistent risks of unstable power and data loss.

Features :

Green mode : Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

LCD Status Display : Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. High online efficiency: Reduces utility costs, generates less heat.

Cold-start cable : Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specifications

General

Total Outlets

• 6 x NEMA 5-15R
• 8 x NEMA 5-15R

Plug Type

NEMA 5-15P

Data Line Protection

RJ45

Communications

• USB via Type-A
• Serial via RJ45

Emergency Power Off (EPO) Support

No

Noise Filtering

0.3%

Topology

Line Interactive

Transfer Time

6 to 10 ms

Power

Surge Energy Rating

• 455 Joules
• 540 Joules

Maximum Wattage

• 600 W
• 500 W

Nominal Input Voltage

120 VAC

Input Voltage Adjustable Range

• 85 to 136 VAC
• 75 to 154 VAC

Input Frequency

50/60 Hz ± 3 Hz (Auto Sensing)

Nominal Output Voltage

120 VAC

Output Frequency

50/60 Hz ± 3 Hz

Voltage Distortion

<5%

Load Capacity

• 1000 VA
• 750 VA

Thermal Dissipation

• 81 BTU/Hour
• 100 BTU/Hour
• 90 BTU/Hour

Waveform

Sine Wave

Battery

Cells

1

Chemistry

Lead-Acid

Full-Load Runtime

6 Minutes

Half-Load Runtime

16 Minutes

Charging Time

3 Hours

Replacement Battery

• APCRBC124
• RBC48

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 95%

Storage Temperature

5 to 113°F / -15 to 45°C

Storage Humidity

0 to 95%

Operating Altitude

10,000′ / 3000 m

Storage Altitude

50,000′ / 15,000 m

Noise Level

42 dBA

41 dBA

Certifications

REACH, RoHS, as per Manufacturer

Physical

Cable Length

• 8′ / 2.4 m
• 6′ / 1.8 m

Rackmount Size

Not Specified

Dimensions (W x H x D)

• 5 x 17 x 16″ / 89 x 432 x 406 mm
• 5 x 6.7 x 17.3″ / 215 x 171 x 439 mm
• 34 x 5.43 x 14.53″ / 16.1 x 13.79 x 36.91 cm

Weight

• 45 lb / 20.5 kg
• 38 lb / 17.3 kg
• 5 lb / 12.5 kg
