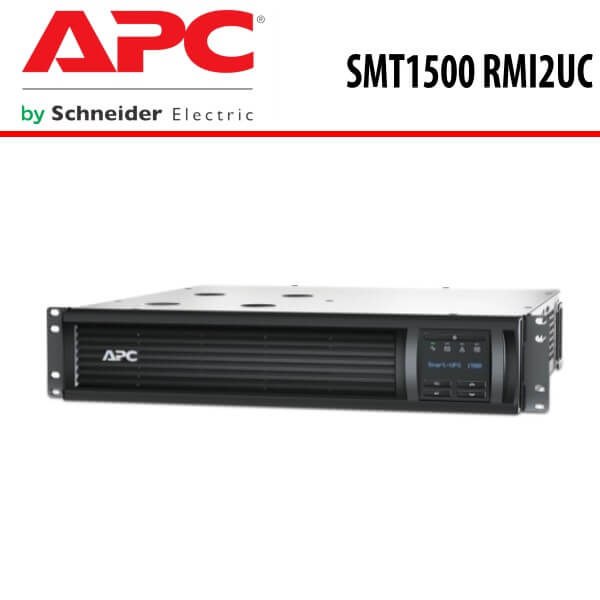

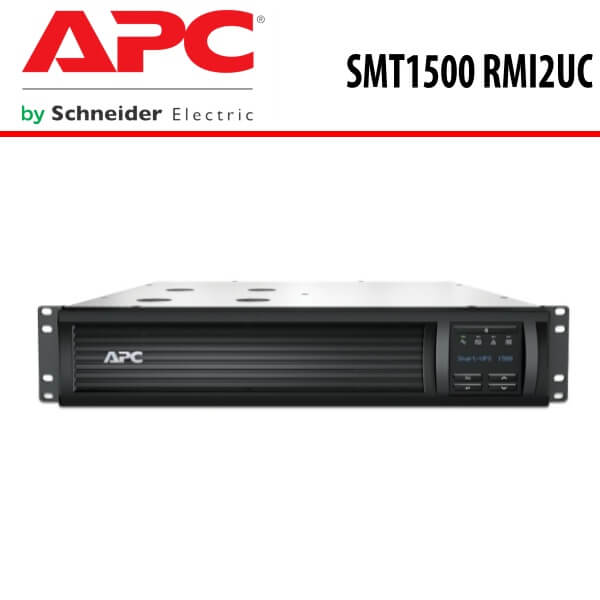

The APC SMT1500 RMI2UC Dubai serves as an effective safeguard for entry-level servers and networking equipment, ensuring protection against power disturbances and outages. This Smart UPS model delivers a pure sine wave output during battery operation, effectively emulating utility power to ensure optimal compatibility for active PFC (power factor corrected) servers and delicate electronics. With its user-friendly LCD status display, it provides a quick and comprehensive overview of essential UPS status information. Additionally, the UPS is equipped with multiple status indicators, accompanied by load and battery bar graphs for easy monitoring. The flexibility of the Smart-UPS C models allows for installation in either a tower or rack configuration, enabling standardized use across various applications. Drawing from the same esteemed standards as the award-winning Smart-UPS series, boasting a substantial installation base of over 10 million units, the APC SMT1500 RMI2UC Dubai offers essential features and manageability crucial for safeguarding entry-level applications.

Features :

• Cold-start capable

Provides temporary battery power when the utility power is out.

• Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

• High online efficiency

Reduces utility costs, generates less heat.

• LCD Status Display

Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

• Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

• SmartConnect

Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

• Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

• 1500VA / 900W Battery Backup Uninterruptible Power Supply (UPS)
• Pure Sine Wave UPS provides highest degree of compatibility with active PFC power supplies and electronics
• 6 battery backup and surge protector outlets
• Rack-Mountable smart UPS power supply
• Network-grade power supply conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation (AVR) boosts low input voltage and trims high voltage without battery operation. Network manageable via serial, USB or optional ethernet

Technical Specifications

Output

Max Configurable Power (Watts)

900 Watts / 1.5kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

170 – 300 Adjustable, 180 – 287V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Expected Battery Life (years)

4 – 6

RBC Quantity

1

Battery Charge Power (Watts)

112 Watts

Communications & Management

Interface Port(s)

RJ-45 Serial, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

432MM, 43.2CM

Maximum Depth

477MM, 47.7CM

Net Weight

28.64KG

Shipping weight

31.91KG

Shipping Height

251MM, 25.1CM

Shipping Width

594MM, 59.4CM

Shipping Depth

603MM, 60.3CM

Color

Black

Units per Pallet

16.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

46.0dBA

Online thermal dissipation

90.0BTU/hr

Conformance

Approvals

C-Tick, CE, GOST, UL 1778, VDE
