Description

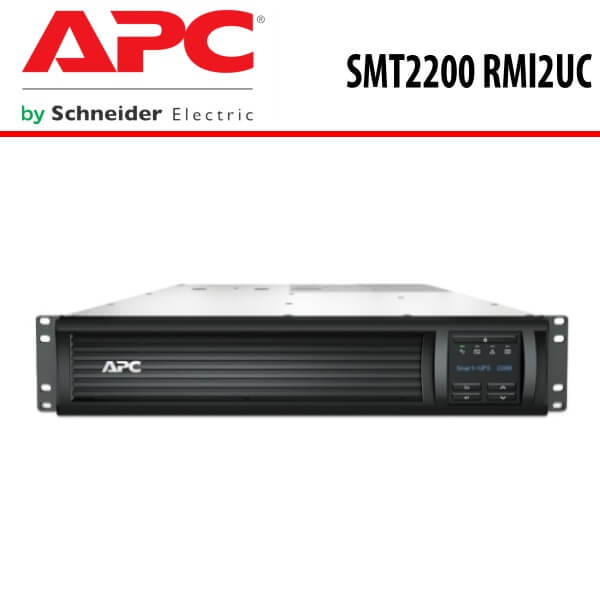

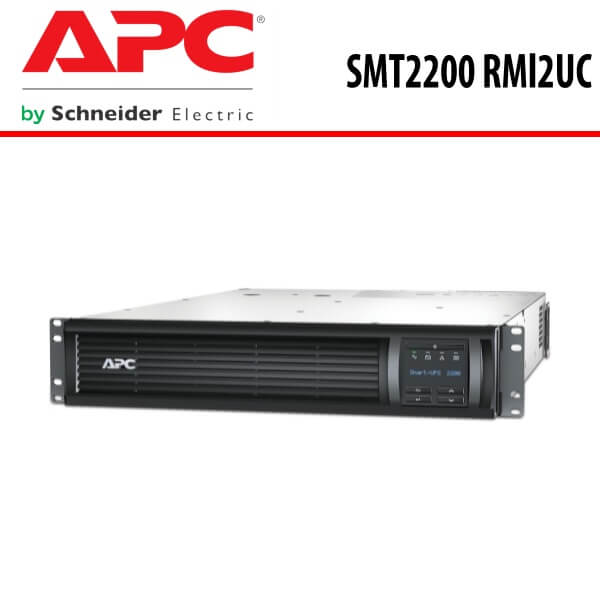

APC SMT2200 RMI2UC Dubai

The APC SMT2200 RMI2UC Dubai serves as a dependable network power protection solution engineered specifically for deployment in retail and open access environments. Equipped with a CD containing essential software and documentation, as well as rack mounting brackets and support rails, the UPS ensures a comprehensive and straightforward setup process. Additionally, it comes with a Smart UPS signaling RS-232 cable and a USB cable for enhanced connectivity. Offering intelligent and efficient network power protection across various operational scales, this UPS is particularly well-suited for a diverse range of systems, including servers, point-of-sale devices, routers, switches, hubs, and more.

Features :

Cold-start capable

Provides temporary battery power when the utility power is out.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utility costs, generates less heat.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot

Customize network shutdown and reboot sequence of connected servers and UPSs.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

StruxureWare Data Center Expert compatible

Enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specifications :

Output

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

110 V, 125 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

75 – 154 Adjustable, 82 – 143V

Number of Power Cords

Other Input Voltages

110 V, 125 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

RBC43

Expected Battery Life (years)

3 – 5

RBC Quantity

Battery Charge Power (Watts)

179 Watts

Battery Volt-Amp-Hour Capacity

538

Communications & Management

Interface Port(s)

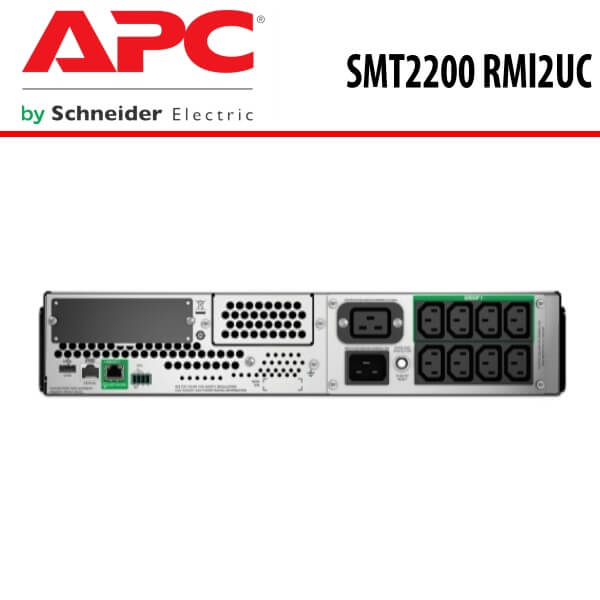

RJ-45 Serial, SmartSlot, USB

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

Surge Protection and Filtering

Surge energy rating

530Joules

Physical

Maximum Height

3.39inches (86MM, 8.6CM)

Maximum Width

17.01inches (432MM, 43.2CM)

Maximum Depth

26.89inches (683MM, 68.3CM)

Net Weight

93.28lbs. (42.31KG)

Shipping weight

109.64lbs. (49.73KG)

Shipping Height

10.0inches (254MM, 25.4CM)

Shipping Width

23.62inches (600MM, 60.0CM)

Shipping Depth

38.58inches (980MM, 98.0CM)

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

32 – 104 °F (0 – 40 °C)

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 10000ft (0 – 3048meters)

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 50000ft (0 – 15240meters)

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

215.0BTU/hr

Conformance

Approvals

CSA C22.2 No 107.1, cULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778
