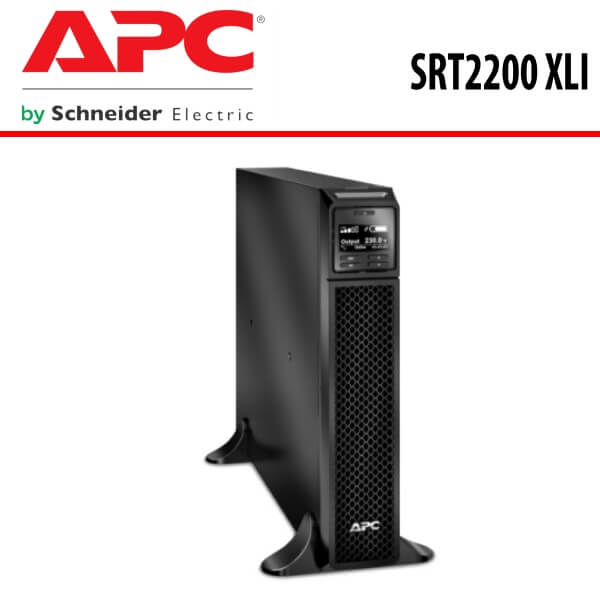

APC SRT2200 XLI Dubai

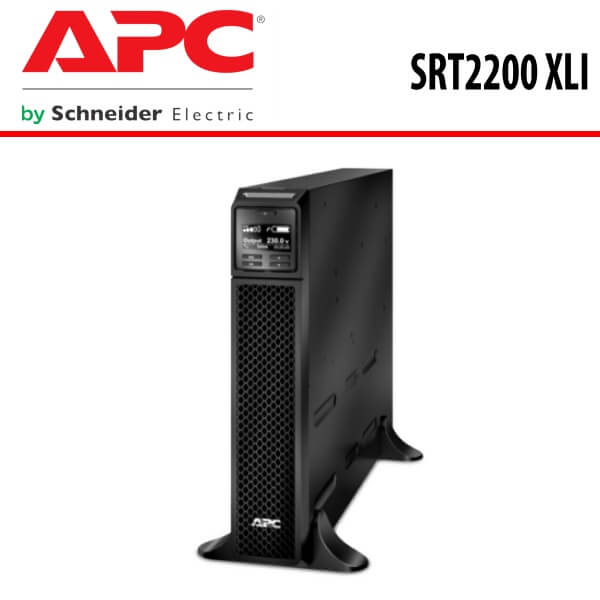

APC SRT2200 XLI Dubai - Image 2

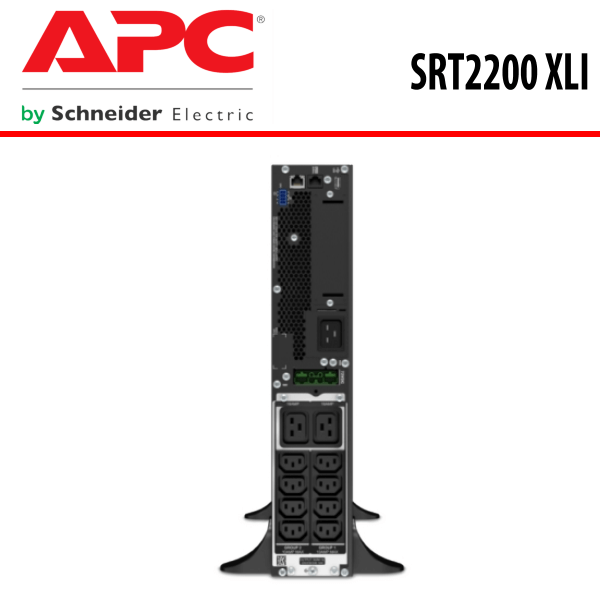

APC SRT2200 XLI Dubai - Image 3

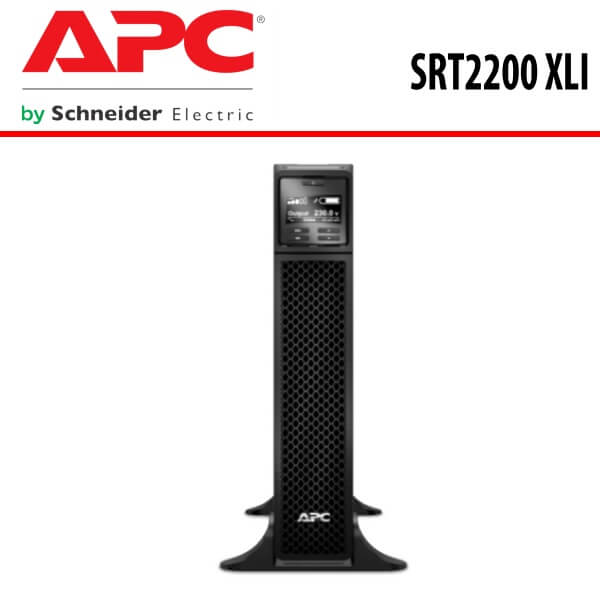

APC SRT2200 XLI Dubai - Image 4

APC SRT2200 XLI Dubai

APC SRT2200 XLI Dubai

The APC SRT2200 XLI Dubai. Designed for both tower and rack setups, these devices guarantee a secure power supply, supported by APC’s leading market reputation in Europe for uninterrupted power solutions.

Category:

Description

APC SRT2200 XLI Dubai

The APC SRT2200 XLI Dubai. Designed for both tower and rack setups, these devices guarantee a secure power supply, supported by APC’s leading market reputation in Europe for uninterrupted power solutions. The APC SRT2200 XLI Dubai provides an optimal defense for file servers, minicomputers, network switches, hubs, point of sale systems, and ATMs. Equipped with digital line interactive sinewave technology, an LCD display, and hot-swappable battery options, it ensures comprehensive protection and clear UPS status monitoring. Offering 1980W of reliable power, the APC SRT2200 XLI Dubai stands as a reliable partner, dedicated to safeguarding your servers, storage, and network hardware, ensuring the uninterrupted flow of critical data and equipment.

Features :

  • Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

  • ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

  • Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment

Technical Specifications

Output

  • Output power capacity

1.98 KWatts / 2.2 kVA

  • Max Configurable Power (Watts)

1.98 KWatts / 2.2 kVA

  • Nominal Output Voltage

230V

  • Output Voltage Distortion

Less than 2%

  • Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

  • Other Output Voltages

220, 240

  • Load Crest Factor

3 : 1

  • Topology

Double Conversion Online

  • Waveform type

Sine wave

  • Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

  • Bypass

Built-in Bypass

Input

  • Nominal Input Voltage

230V

  • Input frequency

40 – 70 Hz (auto sensing)

  • Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

  • Cord Length

2.44meters

  • Input voltage range for main operations

160 – 275V

  • Input voltage adjustable range for mains operation

100 – 275 (half load)V

  • Number of Power Cords

1

  • Other Input Voltages

220, 240

Batteries & Runtime

  • Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Included Battery Modules

1

  • Typical recharge time

3hour(s)

  • Nominal Battery Voltage

72V

  • Expected Battery Life (years)

3 – 5

  • RBC Quantity

1

  • Extendable Run Time

1

Communications & Management

  • Interface Port(s)

RJ-45 Serial , Smart-Slot , USB

  • Control panel

Multi-function LCD status and control console

  • Audible Alarm

Audible and visible alarms prioritized by severity

  • Emergency Power Off (EPO)

Yes

  • Available SmartSlot Interface Quantity

1

Surge Protection and Filtering

  • Surge energy rating

340Joules

  • Filtering

Physical

  • Maximum Height

85mm , 8.5CM

  • Maximum Width

432mm , 43.2CM

  • Maximum Depth

584mm , 58.4CM

  • Rack Height

2U

  • Net Weight

25.0KG

  • Shipping Weight

34.02KG

  • Shipping Height

246mm , 24.6CM

  • Shipping Width

599mm , 59.9CM

  • Shipping Depth

810mm , 81.0CM

  • Color

Black

  • Units per Pallet

12.0
