Description

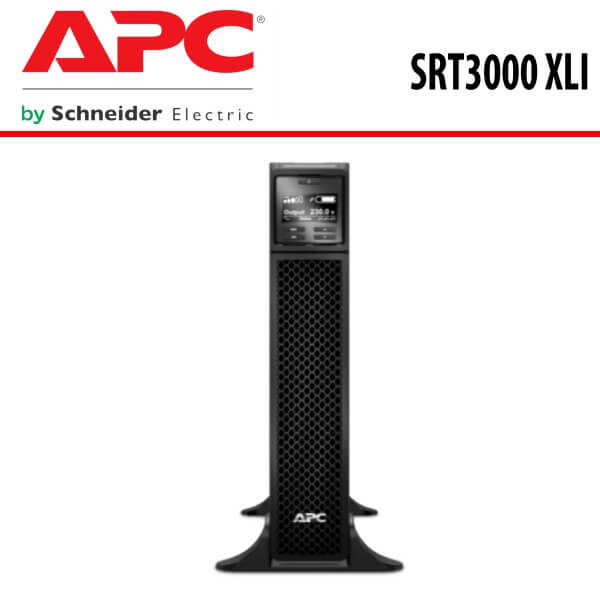

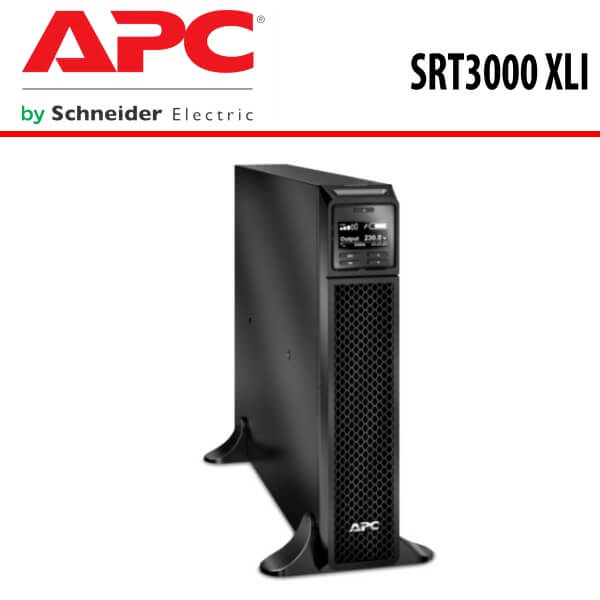

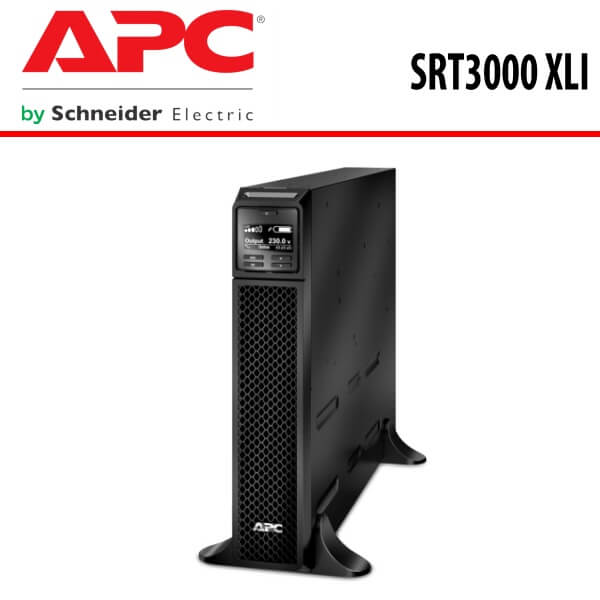

APC SRT3000 XLI Dubai

The APC SRT3000 XLI Dubai serves as an essential guardian for your servers, storage, and network hardware, ensuring the protection of crucial data and equipment from power-related issues. With its substantial power capacity, this device is relied upon to provide comprehensive defense against power disruptions. Offering an optimal solution for safeguarding file servers, minicomputers, network switches, hubs, point of sale systems, and ATMs, the APC SRT3000 XLI Dubai features digital line interactive sinewave technology, an LCD display for clear UPS status monitoring, as well as a hot-swap battery option and diverse connectivity choices. Boasting high-density, double-conversion online power protection with scalable runtime, the APC SRT3000 XLI Dubai comes complete with essential components, including a CD with software, country-specific detachable power cord, documentation CD, installation guide, removable support feet, USB cable, and warranty card.

Features:

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Technical Specifications

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Number of Power Cords

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Nominal Battery Voltage

96 V

Replacement Battery

APCRBC152

Expected Battery Life (years)

3 – 5

RBC Quantity

Battery Charge Power (Watts)

168 Watts

Extendable Run Time

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

Surge Protection and Filtering

Surge energy rating

340Joules

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

85MM, 8.5CM

Maximum Depth

635MM, 63.5CM

Net Weight

31.3KG

Shipping weight

36.74KG

Shipping Height

246MM, 24.6CM

Shipping Width

599MM, 59.9CM

Shipping Depth

871MM, 87.1CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

703.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
