Description

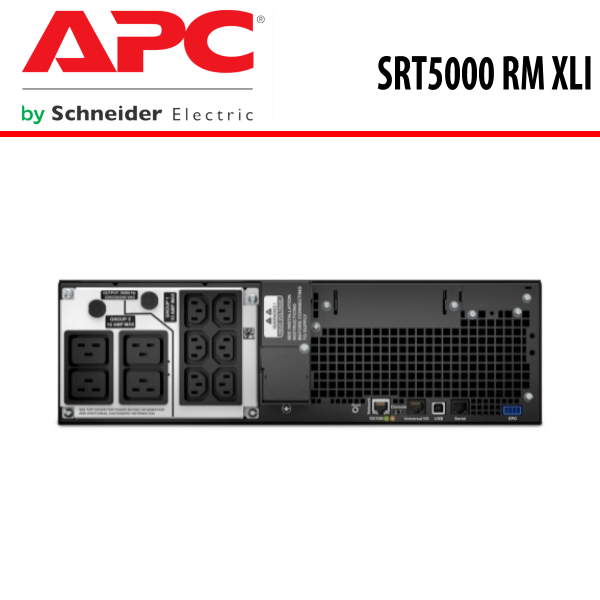

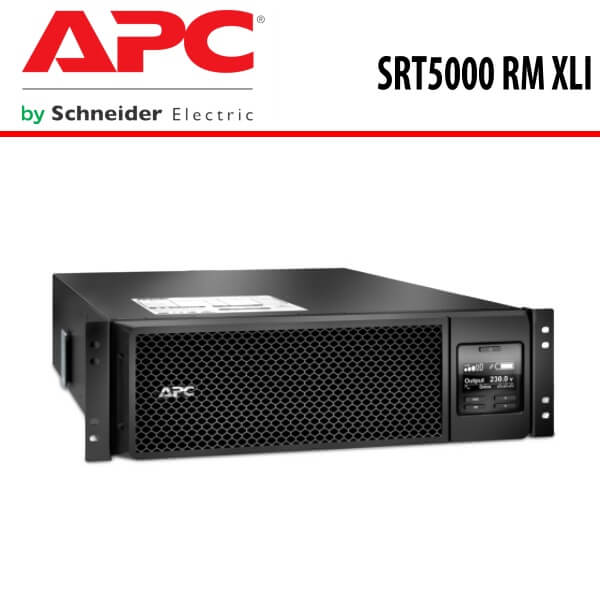

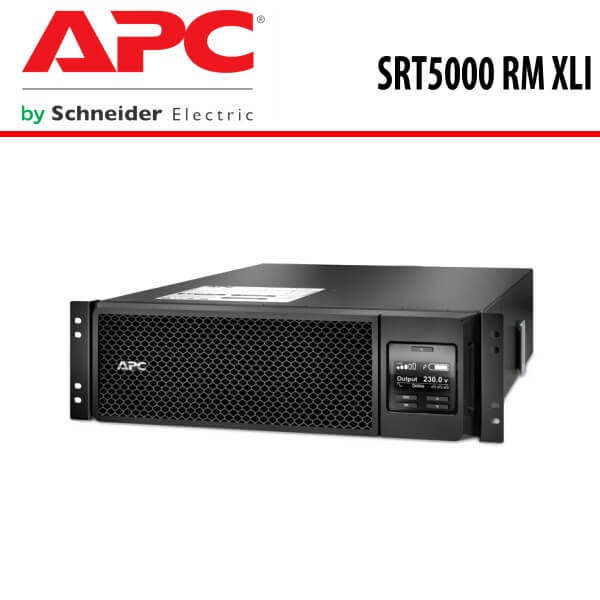

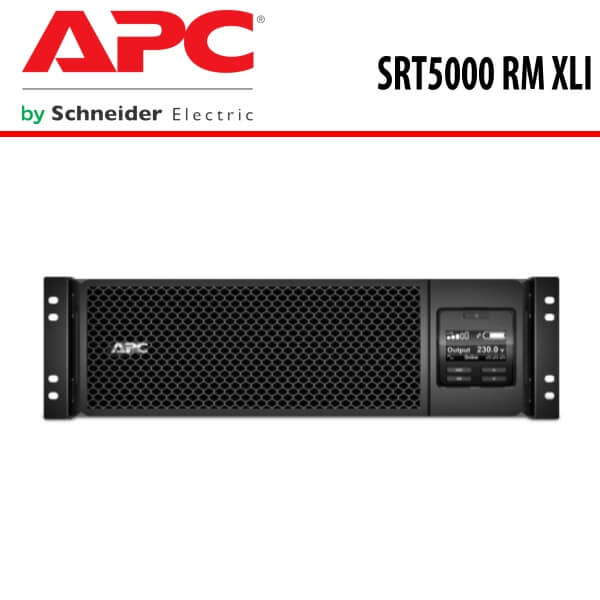

APC SRT5000 RM XLI Dubai

The APC SRT5000 RM XLI Dubai is ideal for critical Smart-UPS applications. It features a predictable and consistent runtime performance and is capable of graceful unattended shutdown of servers and workstations. Enjoy peace of mind with 2-year battery warranty.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features

Advanced battery management included

Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.

Multiple battery pack configuration
- Connect up to 10 battery packs for extended runtime applications.
Automatic restart of loads after UPS shutdown
- Automatically starts up the connected equipment upon the return of utility power.
Scalable runtime
- Allows additional run time to be quickly added as needed.
Hot-swappable batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Temperature-compensated battery charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic internal bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Intelligent battery management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.

Technical Specifications

Output

Max Configurable Power (Watts)

5.0kWatts / 5.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

160 – 285V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

Typical recharge time

4hour(s)

Nominal Battery Voltage

+/- 96 V

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

239 Watts

Extendable Run Time

Battery Volt-Amp-Hour Capacity

960

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

LED Status display with on line : on battery, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

178MM, 17.78CM

Maximum Width

440MM, 44.0CM

Maximum Depth

620MM, 62.0CM

Net Weight

51.9KG

Shipping weight

59.0KG

Shipping Height

275MM, 27.5CM

Shipping Width

590MM, 59.0CM

Shipping Depth

790MM, 79.0CM

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 2011.68meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1109.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EN/IEC 62040-1
