Description

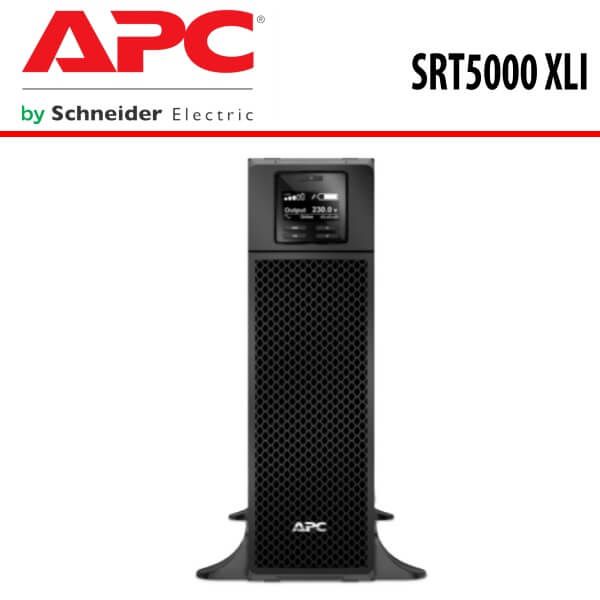

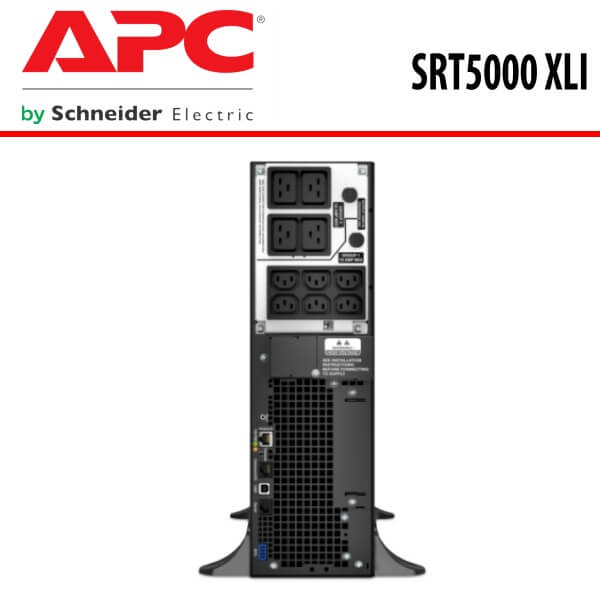

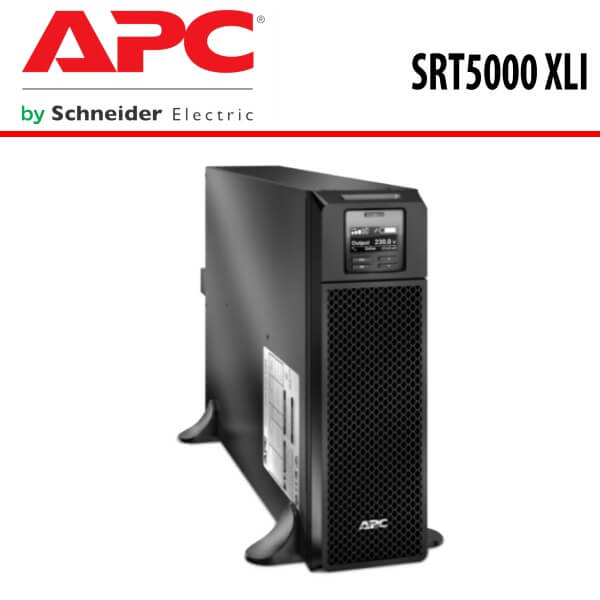

APC SRT5000 XLI Dubai

The APC SRT5000 XLI Dubai represents a 5000VA/4500W 3U rackmount UPS, offering double conversion On-line pure sine wave functionality and equipped with NMC for added SmartSlot connectivity. It supports external batteries for extended runtime (up to 10), enabling the graceful unattended shutdown of crucial IT equipment. Seamlessly integrate it with EcoStruxure IT or third-party centralized management platforms for enhanced control.

Serving as an optimal safeguard for file servers, minicomputers, network switches, hubs, point of sale systems, and ATMs, the APC SRT5000 XLI Dubai leverages digital line interactive sinewave technology. Its LCD display provides comprehensive UPS status information, complemented by a hot-swap battery option and various connectivity choices.

With a robust power capacity of 1980W, the APC SRT5000 XLI Dubai stands as a dependable companion for shielding servers, storage, and network hardware, ensuring the uninterrupted protection of critical data and equipment against potential power-related issues.

Features:

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Technical Specifications

Output

Max Configurable Power (Watts)

4.5kWatts / 5.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

192 V

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

Battery Charge Power (Watts)

560 Watts

Extendable Run Time

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

130MM, 13.0CM

Maximum Width

432MM, 43.2CM

Maximum Depth

719MM, 71.94CM

Net Weight

54.43KG

Shipping weight

66.86KG

Shipping Height

330MM, 33.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

960MM, 96.0CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

931.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
