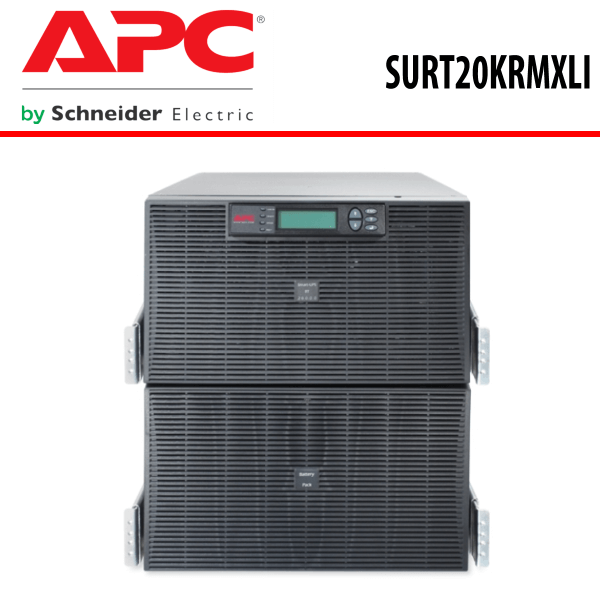

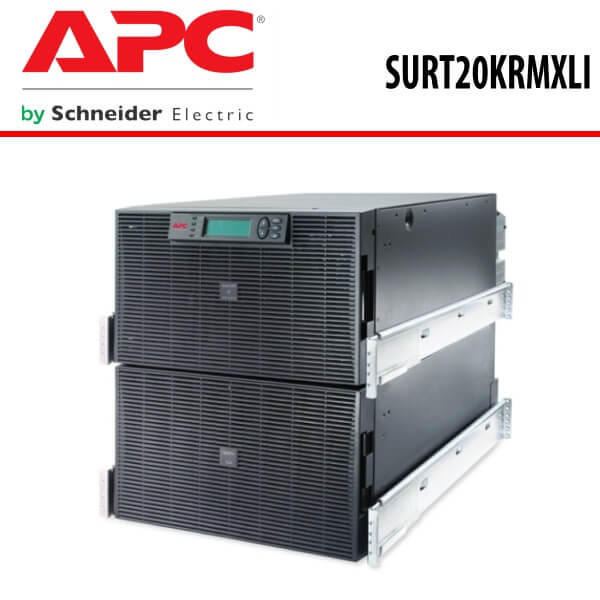

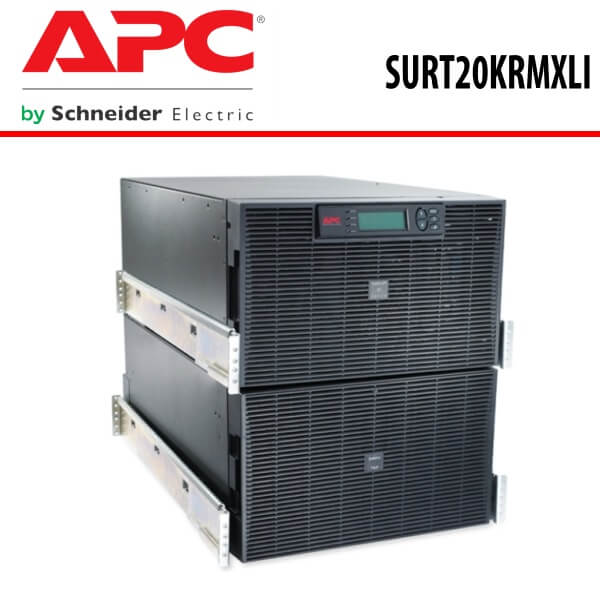

APC SURT20KRMXLI Dubai

APC SURT20KRMXLI Dubai

The APC SURT20KRMXLI Dubai delivers high-density, double-conversion online power protection with adaptable runtime capabilities. It comes complete with essential components including a software CD, rack mounting support rails.

Category:

Description

APC SURT20KRMXLI Dubai

The APC SURT20KRMXLI Dubai delivers high-density, double-conversion online power protection with adaptable runtime capabilities. It comes complete with essential components including a software CD, rack mounting support rails, a Smart UPS signaling RS-232 cable, a user manual, and a Web/SNMP management card, enhancing its comprehensive management functionalities. Representing a high-performance uninterruptible power supply (UPS), the APC SURT20KRMXLI Dubai serves as a robust shield for electronic equipment, effectively safeguarding against utility power disruptions such as blackouts, brownouts, sags, surges, and varying degrees of power fluctuations. Additionally, this UPS ensures seamless battery backup power for connected equipment, ensuring continuous operation until utility power returns to safe levels or until the batteries are fully discharged.

Features :

  • Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

  • LCD display

Provides schematic overview of critical data for guided operation and troubleshooting on color LCD touch-screen.

  • Manageable external batteries

Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

  • Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

  • Removable input/output wiring tray

Allows quick and easy installation and maintenance of the UPS.

  • Single or three-phase input wireable

Provides flexibility for the UPS to be installed using either single or three-phase input wiring.

Technical Specs:

Run time for load

4m 53s

Max. Capacity Used

100%

Output power capacity

16.0kWatts / 20.0kVA

Rack Height

12U

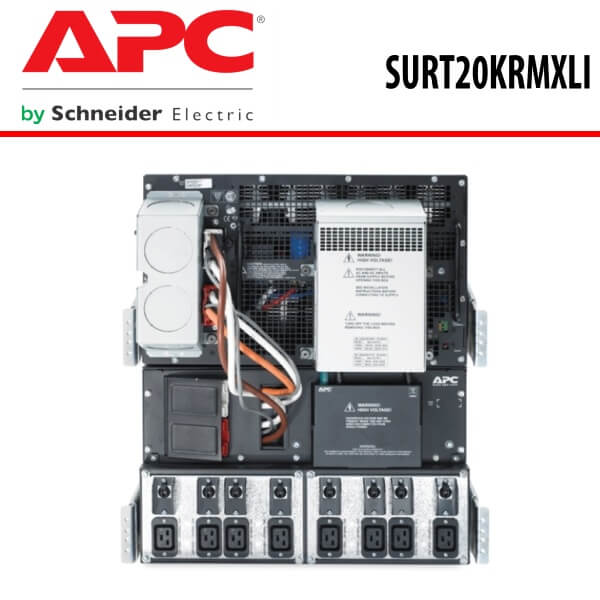

Output Connections

(8) IEC 320 C19 (Battery Backup)

(1) Hard wire 5-wire (3P + N + E) (Battery Backup)

(1) Hard wire 3-wire (H N + E) (Battery Backup)

(8) IEC 60320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)

Maximum Input Current

115.0A
