Description

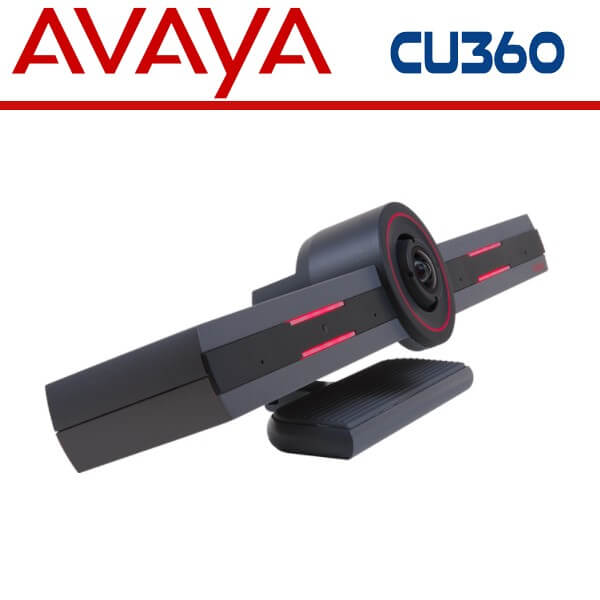

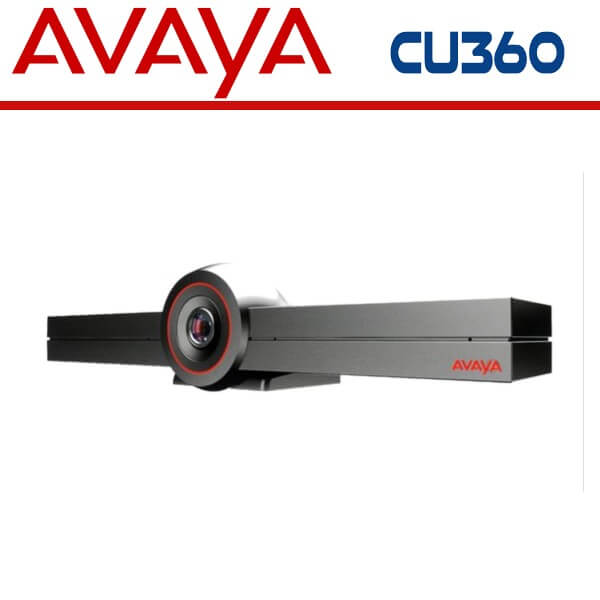

Avaya CU360 Dubai
The Avaya CU360 Dubai is an all-in-one video conferencing solution designed for small to medium-sized rooms. It provides high-quality audio and video, as well as advanced features that make it easy to collaborate with colleagues and clients from anywhere in the world.
One of the key features of the Avaya CU360 Dubai is its high-definition camera, which provides clear and detailed video. It has a wide-angle lens that captures a broad view of the room, ensuring that everyone can be seen during the conference. Additionally, the camera includes pan, tilt, and zoom functions, allowing users to focus on specific areas of the room as needed.
The Avaya CU360 Dubai also includes a high-quality speaker system and microphone array, which ensure clear audio quality. The microphone array uses advanced noise reduction and echo cancellation technologies, reducing background noise and ensuring that everyone in the room can be heard clearly. The speaker system provides high-fidelity audio, allowing users to hear every word clearly.
In addition to its audio and video capabilities, the Avaya CU360 Dubai also supports a wide range of video conferencing platforms, including Avaya Spaces and Microsoft Teams. This makes it easy to connect with colleagues and clients from anywhere in the world, regardless of the platform they are using.
The Avaya CU360 Dubai also features a simple and intuitive interface, making it easy to set up and use. It includes a touch screen display that shows important information such as the meeting schedule, participants, and controls for adjusting the audio and video settings.
Overall, the Avaya CU360 Dubai is a powerful and versatile video conferencing solution that provides high-quality audio and video, as well as advanced features for collaboration. Whether you’re a remote worker or part of a team that needs to collaborate with colleagues and clients from different locations, the Avaya CU360 Dubai is a great choice for effective and efficient video conferencing.
Specifications
- Video Feature
- 2 simultaneous channels: camera + content
- Communications
- IP: H.323, SIP (RFC 3261)
- Bit rate: H.323, SIP: up to 4Mbps
- MCU compatibility: H.243, H.231
- XMPP Presence Server support
- Video Protocols
- H.264, H.264 High Profile, SVC (Scalable Video Coding),
- H.263 + is supported with resolutions up to 4CIF @ 15fps.
- Only RFC2429 is supported. User-defined formats
- and attachments are not supported. Dual: H.239 (H.323);
- BFCP (SIP)
- Camera
- Sensor: 4kp30
- Video resolution: 1080p30
- Horizontal Field of View: 102°
- Vertical Field of View: 68°
- Digital zoom: 5x
- Preset up to 122 presets (web) – up to 10 presets (GUI)
- Tracking Modes: Speaker Tracking
- (also for third-party apps) and Auto-Framing
- Background removal (replace/blur)
- Video Input
- Live video from built in camera up to 1920 x 1080 at 30fps
- Live video from additional IP RTSP Camera (including native PTZ) up to 1080p30
- Live video from additional USB cameras supported on USB A (including native PTZ), up to 720p30 resolution
- Video Output
- 1x HDMI at 3840 x 2160 at 25, 30fps; 1920 x 1080 at 25,30fps; 1280 x 720 at 25, 30fps
1xHDMI via USB type C self-powered adapter 1920 x 1080 at 25, 30fps; 1280 x 720 at 25, 30fps
- 1x HDMI at 3840 x 2160 at 25, 30fps; 1920 x 1080 at 25,30fps; 1280 x 720 at 25, 30fps
- Audio Inputs
- Bluetooth
- Mini-Jack Line-in and HDMI via the optional A/V grabber
- accessory
- USB Speaker-phone or headset
- Network Features
- IPv4 and IPv6 simultaneous support
- Auto Gatekeeper discovery
- QoS support: IP Precedence, IP Type of Service (ToS),
- Differentiated Services (diffserv)
- Avaya NetSense bandwidth adaptation for high quality
- over unmanaged networks
- Network Protocols
- DHCP, DNS, HTTP, HTTPS, RTP/RTCP, RTMP/s, RTSP, NTP,
STUN, TCP/IP, TELNET, TFTP, 802.1q/p/x
- DHCP, DNS, HTTP, HTTPS, RTP/RTCP, RTMP/s, RTSP, NTP,
- User Interface
- 25 language on-screen user interface
- Infrared remote control
- API for endpoint control
- Avaya Collaboration Control app for smarphones/tablets
- Android™ apps can be downloaded on the device
- and used alongside the Avaya Collaboration Unit
- videocommunication application
- Touch Screen Monitor control supported
- Support for huddle rooms
- Google™ Services Framework support by Avaya
- AppsProvider
- Automatic Configuration using credentials on Avaya
- Workplace on prem
- External Keyboard/Mouse supported through USB
- interface or Bluetooth
- Transmit the Site Name in overlay
- Support for DES autoprovisioning
- Directory Service & Address Book
- LDAP Client (H.350)
- Receive global address book from LDAP Server including
- Avaya Meetings
- Support for PEXIP autoprovisioning
- Power Supply
- 100-240VAC, 50-60Hz, 2.5A max.
- Optional: PoE+ IEEE 802.3at. Isolated PoE splitter with output DC voltage +5,25V@3A (15,75W)
- Physical Characteristics
- 28.0cm (11.0’’) L x 5.5cm (2.2”) W x 6.5cm (2.6”) H
