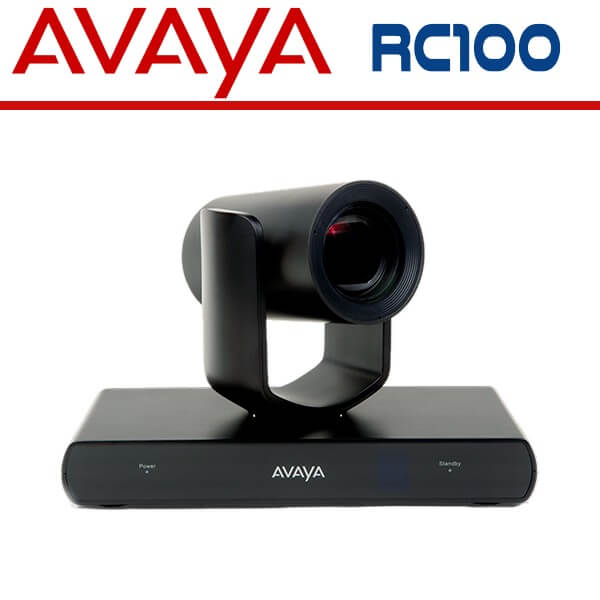

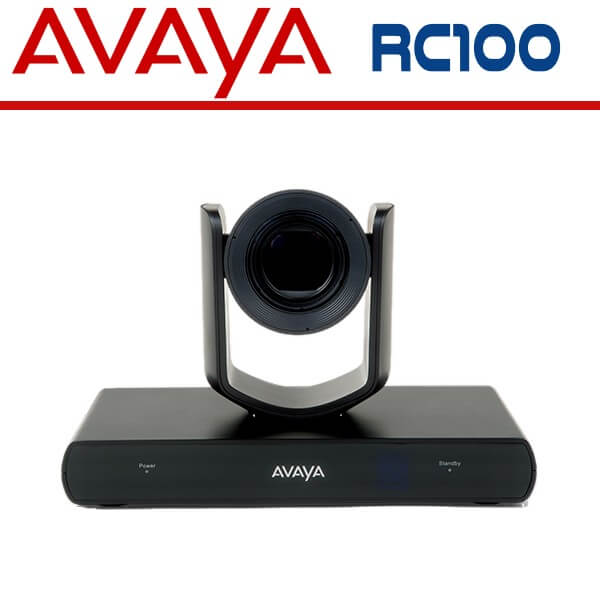

Avaya RC100 Dubai

Avaya RC100 Dubai

The Avaya RC100 Dubai is a compact conference camera designed for seamless video collaboration. With its high-definition video and wide-angle lens, it delivers clear and immersive visuals. Its easy setup and compatibility with popular video conferencing platforms make it ideal for small to medium-sized meeting rooms.



Description

Avaya RC100 Dubai

The Avaya RC100 Dubai is a feature-rich conference camera designed to enhance video collaboration in small to medium-sized meeting rooms. With its compact and sleek design, it offers high-definition video quality and intelligent features
for a seamless conferencing experience. Avaya RC100 Dubai boasts a high-definition camera that captures crisp and clear
visuals, ensuring participants can see each other with remarkable clarity. The wide-angle lens provides a broad field of view, allowing everyone in the room to be seen on the screen without the need for manual adjustments.

One of the standout features of the Avaya RC100 Dubai is its intelligent auto-framing and speaker tracking capabilities. With auto-framing, the camera automatically adjusts its field of view to include all participants in the frame, ensuring nobody is left out. The speaker tracking feature intelligently identifies the active speaker and smoothly pans and zooms to focus on them,providing an engaging and dynamic viewing experience.Setting up the Avaya RC100 Dubai is hassle-free, thanks to its plug-and-play functionality. Simply connect the camera to your computer or video conferencing system via USB, and it is ready to use. The camera is compatible
with popular video conferencing platforms, making it easy to integrate into your existing setup.

The Avaya RC100 Dubai offers versatility in its placement options. It can be mounted on a tripod or placed on a tabletop, allowing for flexible positioning based on the room layout and requirements. The camera can be easily tilted and rotated to achieve the desired viewing angle.

In addition to its video capabilities, the Avaya RC100 Dubai also features a built-in microphone that captures clear audio, ensuring that every voice is heard during conferences. The microphone provides excellent coverage within the room, minimizing the need for external audio equipment.

The Avaya RC100 Dubai  is designed with reliability and durability in mind. Its sturdy construction ensures long-lasting performance, making it suitable for regular use in professional environments. It also features intuitive controls, allowing users to easily adjust camera settings, such as zoom, pan, and tilt,to customize the viewing experience.

In summary, the Avaya RC100 Dubai is a powerful conference camera that brings high-definition video, intelligent features, and ease of use to small to medium-sized meeting rooms. With its auto-framing, speaker tracking, and compatibility with popular video conferencing platforms, the Avaya RC100 Dubai ensures a seamless and engaging video collaboration experience for all participants.



Avaya RC100 Specifications

Image device 1/2.8 Inch, CMOS, effective pixels: 8.46 MP
Video Formats supported 2160p60/50/30/25, 1080p60/50/30/25, 720p60/50/30/25
Video Formats with Avaya XT Series Using HDMI: 1080p60/50/30/25, 720p60/50/30/25 Using USB: 1080p30/25, 720p60/50/30/25


Video Formats with Avaya CU360

Using IP: 1080p30/25, 720p60/50/30/25

Using USB: 720p30/25



Video signal

HDMI (up to 4Kp60),

H.264 and MJPEG (up to 4Kp30) on USB, RTSP H.264 AVC (up to 4Kp30) on IP

Focal Length f= 3.4mm ~40.3mm, F 1.8 ~ 3.6
Min object distance (wide) 250 (Wide) ~1000 (Tele) mm
Min illumination 0.5 lux at F 1.8, AGC ON
HFoV 81°
VFoV 50°
Full HD Zoom (at 1080p) 24x
Ultra HD Zoom (optical at 2160p) 12x
Weight 1.69kg (3.72 lbs.)
Dimensions w/h/d 250mmx165mmx135mm   (9.84×6.49×5.31”)
Current consumption (max) 2.5A (power supply 12v at 2,5A)
Avaya clients supported Avaya Spaces, Avaya Cloud Office (ACO), Workplace, Equinox


3rd party clients supported

MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®, Google Hangouts®


Video configurations

White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level
Voltage Range 12V +/-5%
IR repeater as TTL signal Yes

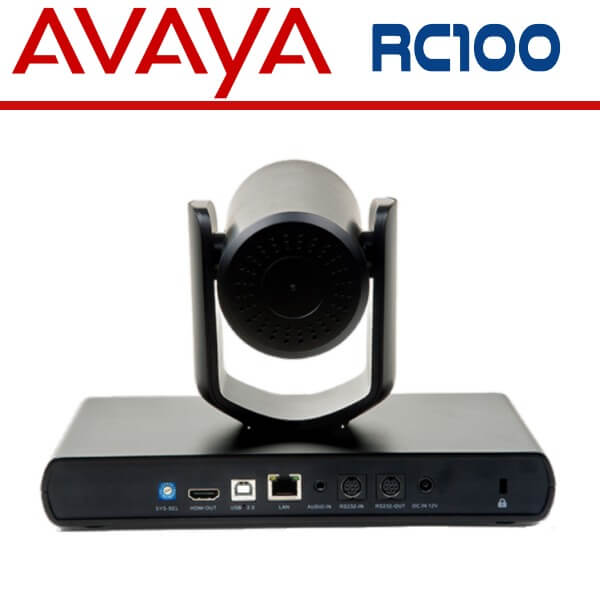

Camera Output HDMI, USB, Ethernet
Audio input Jack stereo 3,5”
Audio output USB, HDMI, Ethernet
USB control UVC/UAC, Plug and Play


Presets

12 when controlled from camera’s own remote control, 122 when controlled from Avaya XT Series or Avaya CU360
Far end camera control Through Avaya XT Series or Avaya CU360 codec (H.224, H.281) or third-party App


Accessories in the box

Remote Control with batteries, 2.5m HDMI 2.0 cable, 4.5m USB 2.0 cable, Power Supply Unit (power cable to be ordered depending upon country), wall mount, screws set, Lens cap and Documentation
Kensington Security Slot Kensington Security Slot available
