Avaya TC220 Dubai

Avaya TC220 Dubai

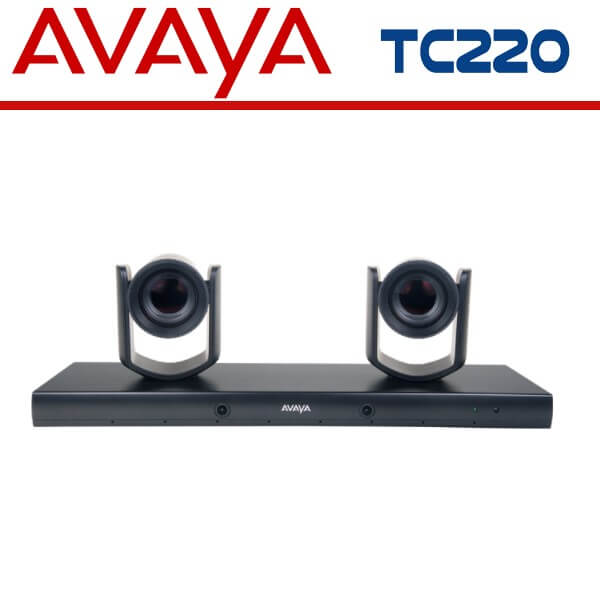

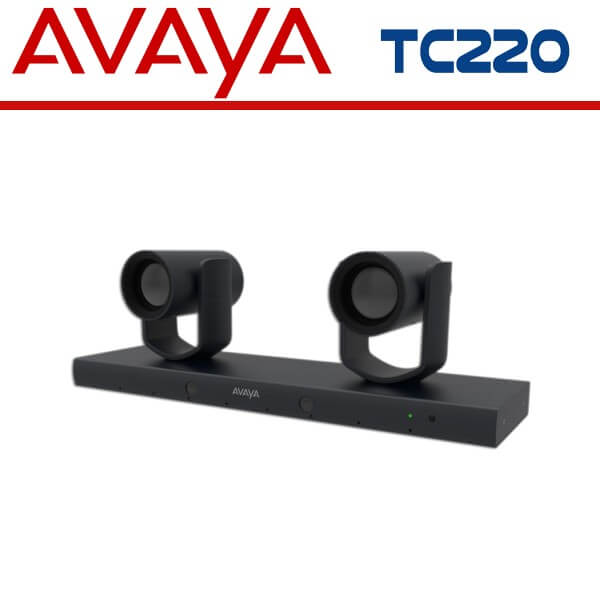

The Avaya TC220 Dubai is a compact and easy-to-use video conferencing system designed for small meeting rooms and huddle spaces. TC220 features a high-quality camera, microphone, and speaker, all built into a single unit for easy setup and operation.

Description

Avaya TC220 Dubai

The Avaya TC220 Dubai is a video conferencing system designed for small meeting rooms and huddle spaces. Avaya TC220 Dubai is a cost-effective solution for organizations looking to improve collaboration and communication in these spaces.

The Avaya TC220 Dubai is a compact unit that integrates a high-quality camera, microphone, and speaker in a single device for easy setup and operation. The camera features high-definition video capabilities, ensuring that participants can see each other clearly and with great detail. The system also includes an omnidirectional microphone and a high-quality speaker, which provide clear and natural audio for both voice and video conferencing.

The Avaya TC220 Dubai is compatible with a range of video conferencing software, including Avaya’s own Equinox software, as well as other third-party applications. The system is designed to be simple and intuitive to use, with a user-friendly interface that allows users to easily connect to meetings and share content.

In addition to video and audio conferencing, the TC220 also supports content sharing, allowing participants to share documents, presentations, and other files in real-time. This feature is particularly useful in small meeting rooms where participants need to collaborate on documents or review presentations.

The Avaya TC220 Dubai also includes advanced security features, such as secure connections and authentication protocols, which ensure that meetings are private and secure. This is particularly important for organizations that deal with sensitive information and need to protect their data from unauthorized access.

Overall, the Avaya TC220 Dubai is a powerful and cost-effective video conferencing solution for small meeting rooms and huddle spaces. Its compact design, high-quality audio and video capabilities, and support for content sharing make Avaya TC220 Dubai a valuable tool for organizations looking to improve collaboration and communication in these spaces.



Avaya TC220 Specifications

Image devices CMOS 1/2.8’’ Serial Control Serial In – Out, Via Network


Video Formats

1080p60/50/30/25,

720p60/50



Ceiling Mount



Not supported



Video signal

HDMI (up to 1080p60), RTSP H.264 AVC

(up to 1080p60) on IP



Camera mount

available for wall mount and Tripod screw hole (1/4- 20 UNC)


Focal Length

f = 3.9 ~ 46.8 mm F1.6 ~ F2.8

Weight



3 Kg

Min object distance (wide) 500(Wide) ~ 1000(Tele) mm

Dimensions w/h/d



500mm x 162mm x 137mm



Min illumination



0.5 lux (F1.6, AGC ON)

Current consumption (max)

2A



HFoV



72.5°



Video configurations

White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture  (auto/manual) and WDR level
VFoV 42° Voltage Range 12V nominal (10.8 to 13.2 V)


Optical Zoom (*)



12x

IR repeater as TTL signal

On pin 7 Serial In

Digital Zoom (*) 12x Camera Output HDMI-IP (**)
Pan Range +/- 90° Presets 128
Tilt Range -30° ~ +90°
