AVer MD330UI Dubai

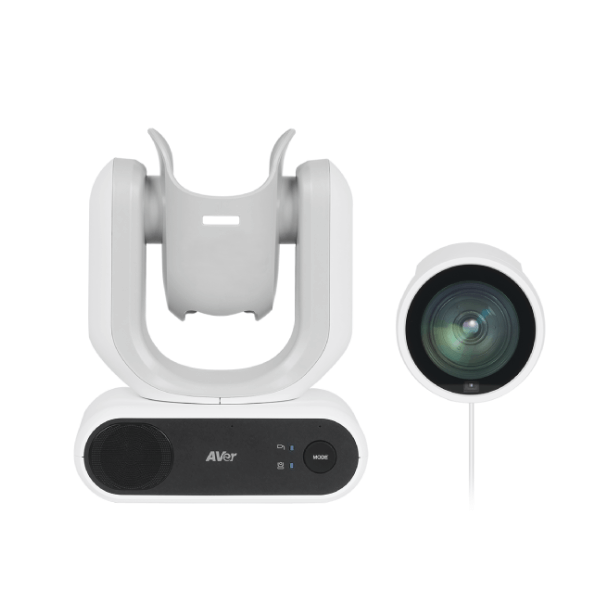

The AVer MD330UI Dubai, a specially designed and medically certified Telemedicine solution, compliant with the IEC 60601-1-2 Medical Certification. With its 30X optical zoom lens and 4K output resolution, this advanced camera delivers exceptional image quality for precise diagnostics.Experience face-to-face communication excellence with AI Noise Reduction, ensuring seamless interactions between patients and doctors. The groundbreaking removable camera head allows for 360-degree angle close-up shooting and snapshots, a true revolution in telemedicine.
The AVer MD330UI Dubai is versatility empowers both doctors and near-site medical assistants. Doctors can utilize the motorized remote-controlled PTZ functionality, while assistants can easily remove the camera from the base, providing a clear view of areas of interest.The 30X optical zoom lens captures even the tiniest details, benefiting from superior autofocus, zoom speed, and rapid camera movements, leading to accurate remote diagnoses.With ultra-clear 4K resolution imagery and excellent 30X optical zoom, the AVer MD330UI Dubai facilitates precise and reliable remote diagnostics.
Equipped with an integrated speakerphone and microphone, the AVer MD330UI Dubai boasts an all-in-one audio system. AVer’s in-house AI Noise Deduction technology ensures smooth communication, making telemedicine sessions stress-free and effective.
AVer MD330UI Specifications
| Image Sensor | 1/2.8” 4K Exmor CMOS |
| Effective Picture Elements | 8 Megapixels |
| Output Resolutions | 4K/30 (IP/UVC), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30 |
| Minimum Illumination | 0.7 lux (IRE50, F1.6, 30fps) |
| S/N Ratio | ≥ 50 dB |
| Gain | Auto, Manual |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Exposure Control | Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR |
| White Balance | Auto, Manual |
| Optical Zoom | 30X |
| Viewing Angles | DFOV : 75.5° (Wide) to 3.1° (Tele) ,HFOV : 68.0° (Wide) to 2.7° (Tele) ,VFOV : 41.7° (Wide) to 1.5° (Tele) |
| Focal Length | f = 4.3 mm (Wide) to 129 mm (Tele) |
| Aperture (Iris) | F = 1.6 (Wide) to 4.7 (Tele) |
| Minimum Working Distance | 0.01 m (Wide), 1.2 m (Tele) |
| Pan / Tilt Angles | Pan : ±170°, Tilt: +90° / -35° |
| Pan / Tilt Speed (Manual) | Pan : 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec |
| Preset Speed | Pan : 200° / sec, Tilt: 200° / sec |
| Preset Positions | 10 (IR), 256 (RS-232 / IP) |
| Camera Control – Protocols | VISCA (RS-232 / IP), CGI (IP) |
| Image Processing | Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC |
| Power Frequencies | 50 Hz, 60 Hz |
| Video Outputs | HDMI, IP, USB |
| Audio Outputs | HDMI, IP, USB |
| Power Requirement | AC 100 – 240V to DC 12V / 3.34A |
| Power Consumption | 36W |
| Dimensions (W x H x D) | 168 x 205 x 126 mm |
| Net Weight | 1.95 kg |
| Application | Indoor |
| Tally Lamp | N / A |
| Security | Kensington Slot |
| Remote Control | Infrared |
| Operating Conditions | Temperature : 0 °C to +35 °C; Humidity : 20% to 80% |
| Storage Conditions | Temperature : -20 °C to +60 °C; Humidity : 20% to 95% |
| Speaker | |
| Embedded Speaker | Yes |
| SPL | 77 dB SPL (1W / 1m) |
| Maximum SPL | 90 dB SPL at 0.5 m |
| Microphone | |
| Built-in Microphone | 2 (Omnidirectional) |
| AI Noise Reduction | Yes |
| Pickup Range | 5 m |
| Sensitivity | -33 dBFS |
| Frequency Response | 20 Hz to 20 KHz |
| Maximum SPL | 133 dB SPL at 0.5 m |
| USB | |
| Connector | USB 3.0 |
| Video Format | MJPEG、YUY2 |
| Audio Format | PCM |
| USB Video Class (UVC) | UVC 1.1 |
| USB Audio Class (UAC) | UAC 1.0 |
