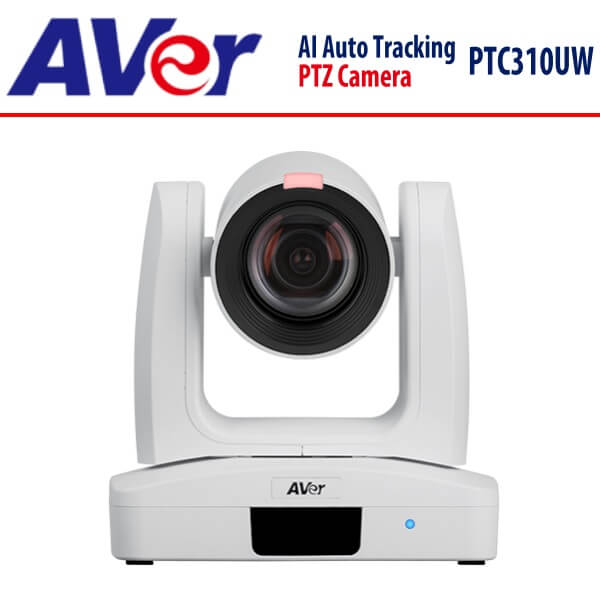

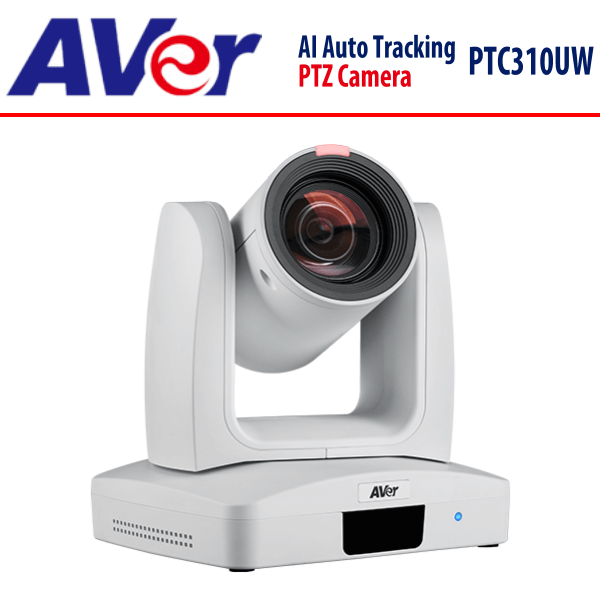

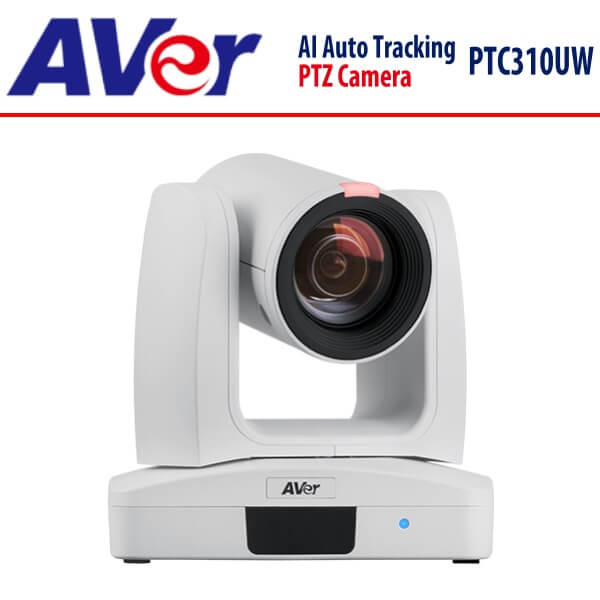

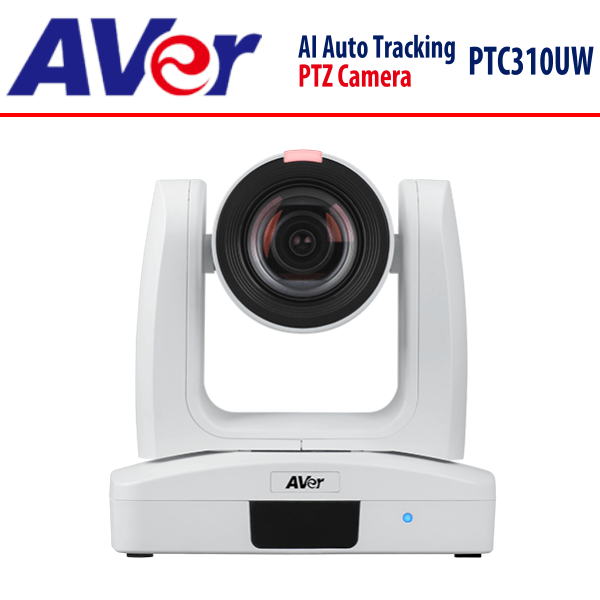

AVer PTC310UW Dubai
The AVer PTC310UW Dubai is a cutting-edge PTZ camera that sets new standards for professional video capturing in a wide range of applications. Combining advanced technology with user-friendly features, this camera is the perfect solution for conferences, events, live broadcasting, and educational purposes.
The AVer PTC310UW Dubai boasts 4K UHD resolution, delivering stunningly clear and lifelike video quality. Whether used for virtual events, corporate meetings, or educational presentations, this camera ensures that every detail is captured with exceptional clarity, providing a truly immersive viewing experience for remote audiences.
With its 12x optical zoom capability, the AVer PTC310UW Dubai allows users to zoom in on subjects without compromising image quality. This versatility is particularly valuable in larger meeting spaces or auditoriums, where capturing both wide-angle shots and close-ups of speakers is crucial.
One standout feature of the AVer PTC310UW Dubai is its precise PTZ functionality, enabling smooth and seamless pan, tilt, and zoom movements. The camera can be remotely controlled to capture different angles and perspectives, making it an excellent choice for capturing dynamic events or following presenters as they move around the stage.
The AVer PTC310UW Dubai supports multiple video communication platforms, making it compatible with popular software solutions like Zoom, Microsoft Teams, Skype for Business, and more. This seamless integration streamlines the setup process and ensures that users can easily connect the camera to their preferred video conferencing or streaming platform.
The camera’s advanced image enhancement technologies, including low-light performance optimization and noise reduction, ensure exceptional video quality even in challenging lighting conditions. This feature is particularly valuable in dimly lit event spaces or venues, ensuring that the camera performs exceptionally well in any environment.
Moreover, the AVer PTC310UW Dubai is designed with convenience and flexibility in mind. Its compact and sleek design allows for easy installation on walls, ceilings, or tripods, providing adaptability in various shooting environments and venues. The camera can be easily integrated into existing setups, making it an excellent choice for upgrading video conferencing systems or enhancing live broadcasting capabilities.
In conclusion, the AVer PTC310UW Dubai is a feature-rich and versatile PTZ camera that excels in delivering exceptional video quality, precise PTZ functionality, and seamless integration with popular video communication platforms. Its advanced features, user-friendly interface, and sleek design make it an excellent choice for conferences, events, live broadcasting, and educational settings, providing users with a reliable and high-quality solution for their visual communication needs.
AVer PTC310UW Specifications
| Image Sensor | 1/ 2.8″ 4KExmor CMOS |
| Effective Picture Elements | 8 megapixels |
| Output Resolutions | ,4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,1080p/50,1080p/30, 1080p/29.97, 1080p/25,1080i/60, 1080i/50,720p/60, 720p/59.94,720p/50 |
| Minimum illuminations | 0.4 lux (IRE50, F 1.6, 30fps) |
| S/N ratio | ≥50dB |
| Gain | Auto, manual |
| TV line | 1400 (center) |
| Shutter speed | 1/1 to 1/32000 sec |
| Exposure control | Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR |
| White balance | Auto, Manual |
| Optical zoom | 12 × |
| Digital zoom | 12 × |
| Sensor zoom | 2 × |
| Viewing angles | DFOV: 78°(Wide) to 7°(Tele)HFOV: 70° (Wide) to 6° (Tele)
VFOV: 42° (Wide) to 3°(Tele) |
| Focal length | f = 3.9mm (Wide) to 46.8mm (Tele) |
| Aperture (iris) | F = 1.6mm (Wide) to 2.8mm (Tele) |
| Minimum working distance | 0.3m (Wide), 1.5m (Tele) |
| Pan/Tilt angles | Pan: ±170°, Tilt: 90°/ -30° |
| Pan/Tilt speed (manual) | Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec |
| Preset speed | Pan: 200°/sec, Tilt: 200°/sec |
| Preset positions | 10 (IR), 256 (RS-232) |
| Camera control – interfaces | RS -232 (DIN8), RS-422 (RJ45), IP |
| Camera control – protocols | VISCA/PELCO – D(RS-232/ RS-422/IP), CGI (IP) |
| Image processing | Noise reduction (2D/3D), Flip, Mirror |
| Power frequencies | 50Hz, 60 Hz |
| Tracking modes | Presenter Mode, Zone Mode |
| Channel | 2ch (Stereo) |
| Codecs | AAC – LC (48/44.1/32/24K), G.711, PCM (8K) |
| Sample rates | 48/44.1/32/24/16/8kHz |
| Video outputs | 3G – SDI, HDMI, IP, USB |
| Audio outputs | 3G – SDI, HDMI, IP, USB |
| Audio inputs | MIC/ Line in |
| Power Requirement | AC100V – AC240V to DC12V/5A |
| Power consumption | 18W |
| PoE | PoE |
| Dimensions( W × H × D) | 180.0× 183.5 × 145.0mm |
| Net Weight | 1.7(±0.1) kg |
| Application | Indoor |
| Tally Lamp | Yes |
| Security | Kensington slot |
| Remote control | Infrared |
| Operating conditions | Temperature: 0° to 40°C;Humidity: 20% to 80% |
| Storage conditions | Temperature: -20° to 60°CHumidity: 20% to 95% |
| Resolution | 4K 30 fps |
| Network video compress formats | H.264, H.265 MJPEG |
| Maximum frame rates | 4K 30fps or 1080p 60fpH |
| Bit – rate control modes | VBR, CBR (selectable) |
| Range of Bit – rate setting | 512Kbps to 32Mbps |
| Network interfaces | 10/100/1000 Base -T |
| Multi – Stream capability | 2 (RTSP/web page), 1080p 60fps (max.) |
| Network protocols | IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
| NDI® |HX Capability | Yes (optional) |
| Connector | USB 3.0 |
| Video Format | MJPEG |
| Maximum video resolution | 2160p |
| USB Video Class | UVC1.1 |
| USB Audio Class | UAC1.0 |
| Live Video Preview | Yes |
| Camera PTZ control | Pan, Tilt, Zoom, Focus, Preset control |
| Camera /Image adjustment | Exposure, White balance, Picture |
| Network configuration | DHCP, IP address,Gateway, Subnet mask, DNS |
| IP search & configuration tool | Support Windows® 7 or later |
