Description
AVer PTC330U Dubai

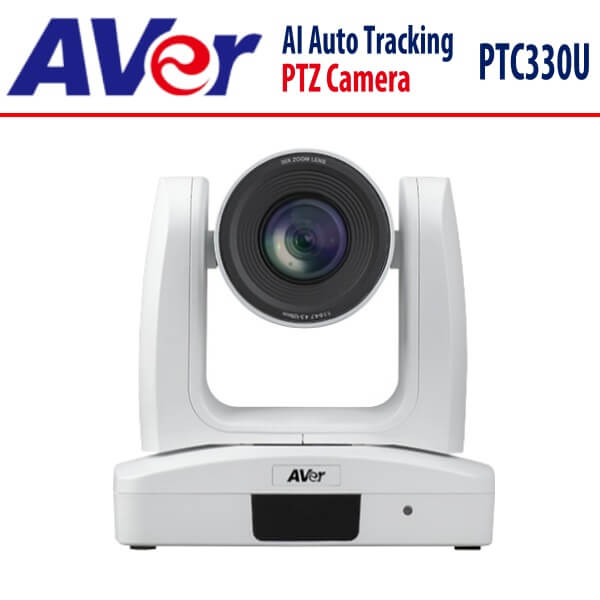

The AVer PTC330U Dubai is a versatile and powerful PTZ (Pan-Tilt-Zoom) camera designed to meet the demands of professional video conferencing, live streaming, and recording applications. With its advanced features and high-quality imaging, the AVer PTC330U Dubai is a reliable choice for capturing clear and detailed video in various professional settings.
The camera is equipped with a 12x optical zoom, allowing users to zoom in on subjects with precision and without compromising image quality. This zoom capability makes the AVer PTC330U Dubai ideal for capturing distant subjects or smaller details in large meeting rooms, auditoriums, classrooms, and event spaces.
The AVer PTC330U Dubai supports 1080p resolution, ensuring sharp and vivid video output. The high-definition resolution enhances video quality during video conferencing sessions, live streaming, and recording, providing viewers with a more immersive and engaging experience.
One of the standout features of the AVer PTC330U Dubai is its advanced pan, tilt, and zoom capabilities. The camera can pan up to 340 degrees, tilt up to 120 degrees, and zoom in and out smoothly, allowing users to capture various angles and perspectives with ease. The camera movements can be controlled remotely, offering greater flexibility and convenience during video capture.

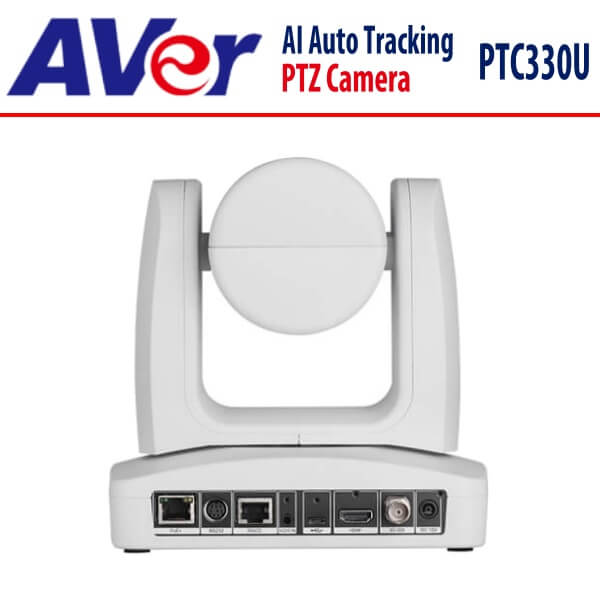

The camera offers versatile connectivity options, including HDMI, USB 3.0, and IP streaming, making it compatible with various devices and video conferencing platforms. Its seamless integration into existing setups ensures hassle-free connectivity and a smoother workflow.
For added convenience, the AVer PTC330U Dubai supports multiple remote control options, including RS-232, RS-422, and IP control. This enables users to control the camera’s movements and settings from a distance, making it easier to manage video capture during conferences, lectures, events, and other occasions.
The AVer PTC330U Dubai is high-quality imaging is further enhanced by features such as autofocus, white balance, and exposure control, ensuring that the video output is consistently clear, well-balanced, and visually appealing.
The camera’s sleek and modern design allows for easy installation and integration into various environments. Its discreet appearance makes it a versatile choice for video capture in professional settings.
In conclusion, the AVer PTC330U Dubai is a high-performance PTZ camera that excels in professional video conferencing, live streaming, and recording applications. With its 12x optical zoom, 1080p resolution, advanced pan, tilt, and zoom capabilities, versatile connectivity options, remote control capabilities, high-quality imaging, and sleek design, the AVer PTC330U Dubai offers exceptional performance and versatility for capturing clear and detailed video in diverse professional settings.
AVer PTC330U Specifications
| Image Sensor | 1/ 2.5″ 4K Exmor CMOS |
| Effective Picture Elements | 8 megapixels |
| Output Resolutions | 4K/30, 4K/29.97,4K/25, 1080p/60,
1080p/59.94, 1080p/50,1080p/30, 1080p/29.97, 1080p/25,1080i/60, 1080i/50,720p/60, 720p/59.94,720p/50 |
| Minimum Illuminations | 2.7 lux (IRE50, F 1.5, 30fps) |
| S/N Ratio | ≥50dB |
| Gain | Auto, Manual |
| TV Line | 1400 (center) |
| Shutter Speed | 1/1 to 1/32000 sec |
| Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR |
| White Balance | Auto, Manual |
| Optical Zoom | 30 × |
| Digital Zoom | 12 × |
| Sensor Zoom | 2 × |
| Viewing Angles | DFOV: 75°(Wide) to 3°(Tele)HFOV: 68° (Wide) to 2.8° (Tele)
VFOV: 40° (Wide) to 1.6°(Tele) |
| Focal Length | f = 4.8mm (Wide) to 144mm (Tele) |
| Aperture (Iris) | F = 1.5mm (Wide) to 3.4mm (Tele) |
| Minimum Working Distance | 1.5m to infinity |
| Pan/Tilt angles | Pan: ±170°Tilt: +90°/ -30° |
| Pan/Tilt speed (manual) | Pan: 0.1° to 100°/secTilt: 0.1° to 100°/sec |
| Preset Speed | Pan: 200°/sec, Tilt: 200°/sec |
| Preset Positions | 10 (IR), 256(RS -232) |
| Camera Control – Interfaces | RS -232 (DIN8), RS – 422(RJ45), IP |
| Camera Control – Protocols | VISCA, PELCO – D (RS -232/RS – 422/IP), CGI (IP) |
| Image Processing | Noise reduction (2D/3D), Flip, Mirror |
| Power Frequencies | 50Hz, 60 Hz |
| Tracking Modes | Presenter Mode, Zone Mode |
| Channel | 2 channels (Stereo) |
| Codecs | AAC – LC (48/44.1/32/24K), G.711, PCM(8K) |
| Sample Rates | 48/44.1/32/24/16/8kHz |
| Video Outputs | 3G – SDI, HDMI, IP, USB |
| Audio Outputs | 3G – SDI, HDMI, IP, USB |
| Audio Inputs | MIC in, Line in |
| Power Requirement | AC100V – AC240V to DC12V/5A |
| Power Consumption | 18W |
| PoE | PoE+ |
| Dimensions (W × H × D) | 180.0× 183.5 × 145.0mm |
| Net Weight | 1.7(±0.1) kg |
| Application | Indoor |
| Tally Lamp | Yes |
| Security | Kensington slot |
| Remote control | Infrared |
| Operating Conditions | Temperature: 0° to +40°CHumidity :20% to 80% |
| Storage Conditions | Temperature: -20° to +60°C
Humidity: 20% to 95% |
| Resolution | 4K 30 fps |
| Network Video Compress formats | H.264, H.265 MJPEG |
| Maximum Frame Rates | 4K 30fps or 1080p 60fps |
| Bit-rate Control Modes | VBR, CBR (selectable) |
| Range of Bit-rate Setting | 512Kbps to 32Mbps |
| Network Interfaces | 10/100/1000 Base -T |
| Multi-Stream capability | 2 (RTSP/web page), 1080p 60fps (max) |
| Network Protocols | IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
| NDI® |HX Capability | Yes (optional) |
| Connector | USB 3.0 |
| Video Format | MJPEG |
| Maximum Video Resolution | 2160p |
| USB Video Class | UVC1.1 |
| USB Audio Class | UAC1.0 |
| Live Video Preview | Yes |
| Camera PTZ control | Pan, Tilt, Zoom, Focus, Preset control |
| Camera /Image adjustment | Exposure, White balance, Picture |
| Network Configuration | DHCP, IP address, Gateway, Subnet mask, DNS |
