Description

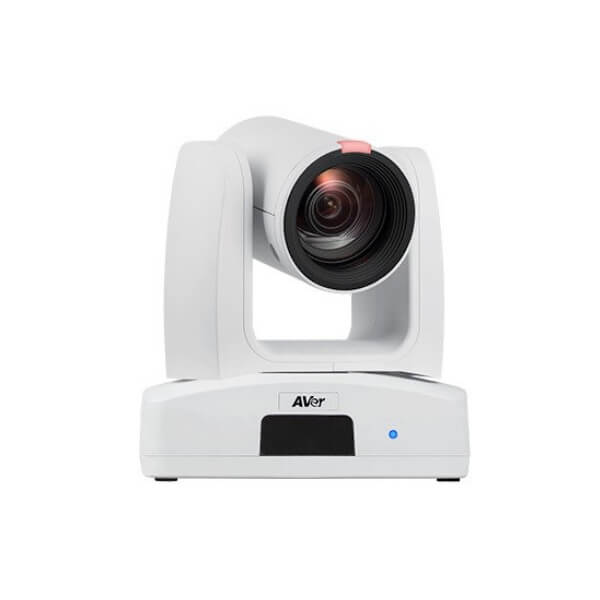

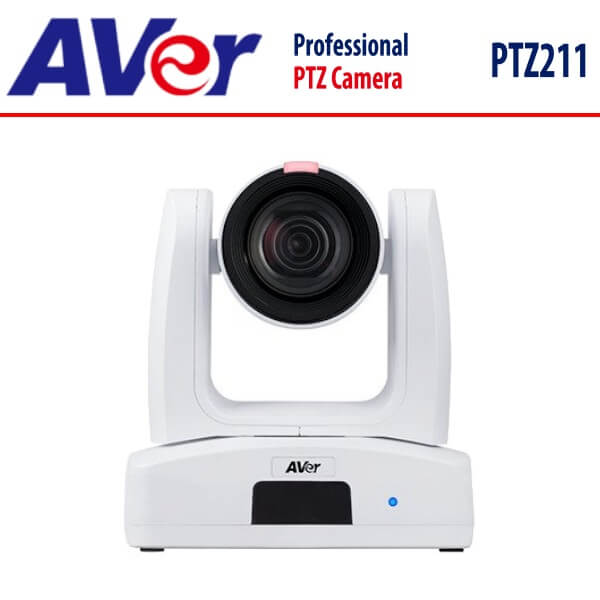

Aver PTZ211 Dubai

The Aver PTZ211 Dubai 12X HD AI PTZ Camera represents the next evolution of PTZ technology, delivering superior image quality, robust video streaming capabilities, and advanced AI features. With 12X optical zoom, HD resolution, 2MP imaging at 60fps, and simultaneous USB/IP/HDMI/3G-SDI output, this camera sets a new standard. Compared to its predecessor, the PTZ310W, the Aver PTZ211 Dubai boasts enhanced performance, USB 3.0 support, a tally light for easy identification of the active camera, and two IR sensors for reliable operation. It also comes with a ceiling mount and SRT Ready functionality to optimize video streaming performance in challenging network conditions. The built-in AI functions allow for preset content areas and field of view adjustments to ensure comprehensive coverage. Plus, it comes with a 5-year AVerCare warranty for added peace of mind.

Prepare for Any Angle

Up to 256 different preset locations through VISCA via RS232 and RS422 functionality
Simplified IR remote and the ability to set 10 preprogrammed preset locations
Easy manual control of the recording view with outstanding preset locations

Seamless Content Capture with SmartShoot AI Functions

Optimize your camera controls for automatic content capturing between preset areas
Create a multi-camera feel across all your preset zones
Save time and effort with a variety of shooting ranges

Tally Light

Simplify multi-camera live video
productions with an illuminated red
light on the active camera.

Advanced Motion Control

Achieve precise camera movement during recording
Pan/tilt rotation maneuvers as small as 0.1° per step and as fast as 200°
Customizable speed controls allow you to optimize your recording

Specifications

Image Sensor 1/2.8” Full HD Exmor CMOS
Effective Picture Elements 2 Megapixels
Output Resolutions 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination 0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio > 50dB
Gain Auto / Manual
TV Lines 1000 (Center/Wide)
Shutter Speed 1/1 to 1/32,000 sec
Exposure Control Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
White Balance Auto, Manual, ATW, One Push
Optical Zoom 12X
Digital Zoom 1X
Viewing Angles DFOV : 69.2° (Wide) to 2.8° (Tele), HFOV : 62.3° (Wide) to 2.5° (Tele), VFOV : 37.3° (Wide) to 1.4° (Tele)
Focal Length f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris) F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance 0.1 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 256 (RS-232, RS-422, IP)
Camera Control – Interfaces RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequencies 50 Hz, 60 Hz
Modes SmartShoot, SmartFrame
Audio – Channel 2ch Stereo
Audio – Codec AAC-LC
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Input MIC in, Line in
Power Requirement AC 100 – 240V to DC 12V/2A
Power Consumption 19W
PoE PoE+
Dimensions (W x H x D) 180.0 x 192.0 x 145.0 mm
Net Weight 2.0 (±0.1) kg
Application Indoor
Tally Light Yes
Security Kensington Slot
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
Resolution 1080p60
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 1080p60
Bit-Rate Control Modes VBR, CBR (selectable)
Range of Bit-Rate Setting 512 Kbps to 120 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-Stream Capability 4 – All Active Streams: IP, USB, HDMI, 3G-SDI
Network Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP
