Description
Aver PTZ231 Dubai

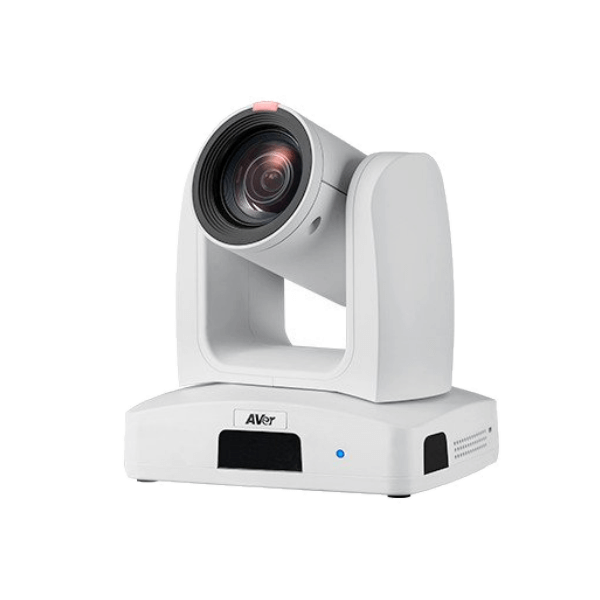

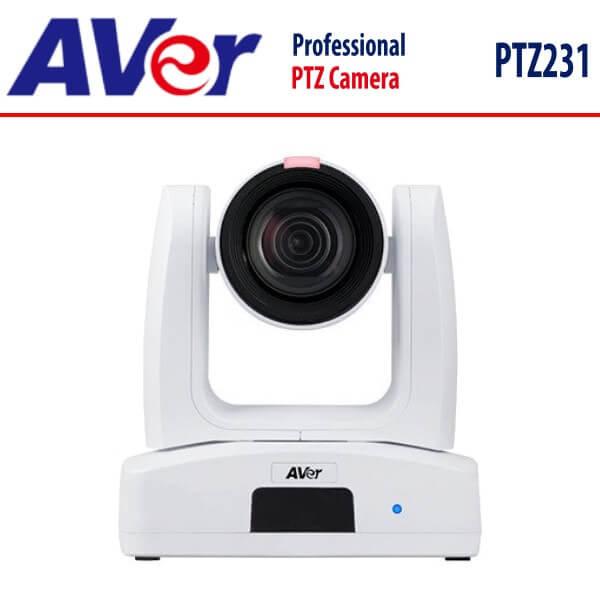

The Aver PTZ231 Dubai 30X HD AI PTZ Camera offers top-notch image quality, video streaming support, and AI functionality. It comes with 30X optical zoom, HD resolution, 2MP picture with 60fps, and simultaneous USB/IP/HDMI/3G-SDI output. This camera boasts several enhancements from its predecessor, the PTZ330W, such as improved performance, USB 3.0, a tally light, and two IR sensors. It also includes a ceiling mount and is SRT Ready for optimized video streaming performance. Additionally, its built-in AI functions enable preset content areas and adjust FOV for comprehensive on-screen coverage.
Prepare for Any Angle
- Up to 256 different preset locations through VISCA via RS232 and RS422 functionality
- Simplified IR remote and the ability to set 10 preprogrammed preset locations
- Easy manual control of the recording view with outstanding preset locations
Seamless Content Capture with SmartShoot AI Functions
- Optimize your camera controls for automatic content capturing between preset areas
- Create a multi-camera feel across all your preset zones
- Save time and effort with a variety of shooting ranges
Tally Light
- Simplify multi-camera live video productions with an illuminated red light on the active camera
Advanced Motion Control
- Achieve precise camera movement during recording
- Pan/tilt rotation maneuvers as small as 0.1° per step and as fast as 200°
- Customizable speed controls allow you to optimize your recording
Specifications
- Image Sensor 1/2.8” Full HD Exmor CMOS
- Effective Picture Elements 2 Megapixels
- Output Resolutions 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination 0.46 lux (IRE50, F1.6, 30fps)
- S/N Ratio > 50dB
- Gain Auto / Manual
- TV Lines 1000 (Center/Wide)
- Shutter Speed 1/1 to 1/32,000 sec
- Exposure Control Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
- White Balance Auto, Manual, ATW, One Push
- Optical Zoom 30X
- Digital Zoom 1X
- Viewing Angles DFOV : 69.2° (Wide) to 2.8° (Tele), HFOV : 62.3° (Wide) to 2.5° (Tele), VFOV : 37.3° (Wide) to 1.4° (Tele)
- Focal Length f = 4.5 mm (Wide) to 135 mm (Tele)
- Aperture (Iris) F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance 0.1 m (Wide), 1.2 m (Tele)
- Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
- Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
- Preset Speed Pan : 200° / sec, Tilt : 200° / sec
- Preset Positions 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces RS-232 (DIN8), RS-422 (RJ45), IP
- Camera Control – Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
- Image Processing Noise Reduction (2D / 3D), Flip, Mirror
- Power Frequencies 50 Hz, 60 Hz
- Modes SmartShoot, SmartFrame
- Audio – Channel 2ch Stereo
- Audio – Codec AAC-LC
- Video Outputs 3G-SDI, HDMI, IP, USB
- Audio Outputs 3G-SDI, HDMI, IP, USB
- Audio Input MIC in, Line in
- Power Requirement AC 100 – 240V to DC 12V/2A
- Power Consumption 19W
- PoE PoE+
- Dimensions (W x H x D) 180.0 x 192.0 x 145.0 mm
- Net Weight 2.0 (±0.1) kg
- Application Indoor
- Tally Light Yes
- Security Kensington Slot
- Remote Control Infrared
- Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
- Resolution 1080p60
- Network Video Compress Formats H.264, H.265, MJPEG
- Maximum Frame Rate 1080p60
- Bit-Rate Control Modes VBR, CBR (selectable)
- Range of Bit-Rate Setting 512 Kbps to 120 Mbps
- Network Interface 10 / 100 / 1000 Base-T
- Multi-Stream Capability 4 – All Active Streams: IP, USB, HDMI, 3G-SDI
- Network Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP
