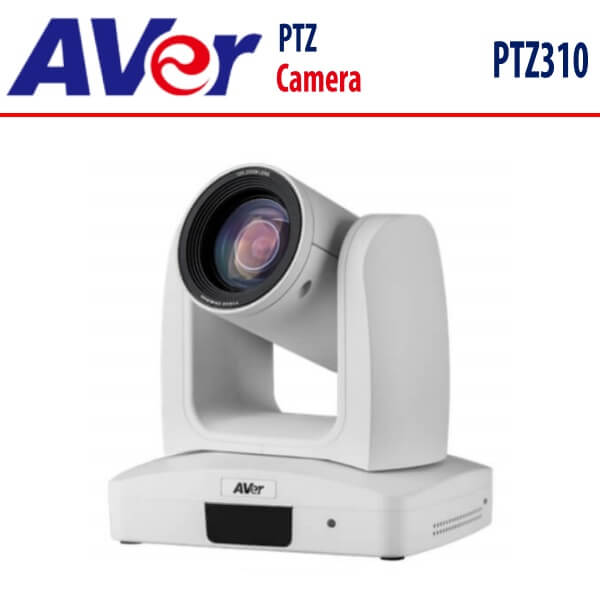

AVer PTZ310 Dubai
The AVer PTZ310 Dubai is a professional-grade PTZ (Pan-Tilt-Zoom) camera that excels in video conferencing, live streaming, and recording applications. With its advanced features and superior image quality, the AVer PTZ310 Dubai is a reliable choice for capturing clear and detailed video in diverse settings.
The camera is equipped with a 12x optical zoom, allowing users to zoom in on subjects with precision and without compromising image quality. This zoom capability makes the AVer PTZ310 Dubai ideal for capturing distant subjects or smaller details in large meeting rooms, classrooms, lecture halls, studios, and event spaces.
The AVer PTZ310 Dubai supports 1080p resolution, ensuring sharp and vivid video output. The high-definition resolution enhances video quality during live streaming or video conferencing sessions, providing viewers with a more immersive and engaging experience.
One of the standout features of the AVer PTZ310 Dubai is its advanced pan, tilt, and zoom capabilities. The camera can pan up to 340 degrees, tilt up to 120 degrees, and zoom in and out smoothly, allowing users to capture various angles and perspectives with ease. The camera movements can be controlled remotely, offering greater flexibility and convenience during recording or streaming sessions.
The AVer PTZ310 Dubai is designed with versatility and compatibility in mind. It offers multiple connection options, including HDMI, USB 3.0, and IP streaming, making it compatible with various devices and video conferencing platforms. The camera can be easily integrated into existing setups, ensuring seamless compatibility and hassle-free setup.
For added convenience, the AVer PTZ310 Dubai supports multiple remote control options, including RS-232, RS-422, and IP control. This enables users to control the camera’s movements and settings from a distance, making it easier to manage video capture during conferences, lectures, events, and other occasions.
The camera’s high-quality imaging is further enhanced by features such as autofocus, white balance, and exposure control, ensuring that the video output is consistently clear, well-balanced, and visually appealing.
The AVer PTZ310 Dubai is sleek and modern design allows for easy installation and integration into various environments. Its discreet appearance makes it a versatile choice for video capture in professional settings.
In conclusion, the AVer PTZ310 Dubai is a top-of-the-line PTZ camera that excels in professional video conferencing, live streaming, and recording applications. With its 12x optical zoom, 1080p resolution, advanced pan, tilt, and zoom capabilities, multiple connection options, remote control capabilities, high-quality imaging, and sleek design, the AVer PTZ310 Dubai offers exceptional performance and versatility for capturing clear and detailed video in diverse settings.
AVer PTZ310 Specifications
Camera | |
Image sensor | 1/2.8” 1080p 60fps Exmor CMOS |
Effective picture elements | Approx. 2.1 Megapixels |
Output Resolution | Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50,1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50 |
Minimum Illumination | 0.4 lux | 0.3 lux (IRE50, F1.6, 30FPS) |
S/N ratio | > 50dB |
Gain | Auto/Manual |
TV Line | 800 (center/wide), 700 (corner/wide) | 600 (corner/wide) |
Shutter Speed | 1/1 s to 1/32,000 s |
Exposure Control | Auto, Manual, Priority AE( Shutter, IRIS), BLC |
White balance | Auto/Indoor/Outdoor/One-push/Manual( 2500 – 10000) |
Optical Zoom | 12X | 30X |
Digital Zoom | 12X |
Horizontal Viewing Angle | 72.5° (Wide) ~ 6.3° (Tele) |67° (Wide) ~ 2.3° (Tele) |
Focal length | f = 3.9 mm (Wide) ~ 46.8 mm (Tele) | f = 4.3 mm (Wide) ~ 129 mm (Tele) |
Aperture (Iris) | F = 1.6 (Wide) ~ 2.8 (Tele) | F = 1.6 (wide) ~ 4.7 (Tele) |
Minimum working distance | 0.3 m (Wide), 1.5 m (Tele) | 0.1m (Wide), 1.2m (Tele) |
Pan/Tilt Angle | Pan: +- 130°, Tilt: +90°/-30° |
Pan/Tilt Speed (manual) | Pan: 0.1~100°/sec, Tilt: 0.1~100°/sec |
Preset Speed | Pan: 200°/sec, Tilt: 200°/sec |
Preset Position | 10 (IR), 255 (RS232) |
Camera Control – IR | Yes |
Camera Control – Interface | RS232 (DIN8) / RS422 (RJ45) |
Camera Control – Protocol | VISCA (RS232/RS422/IP), CGI (IP) |
Image Processing | Noise Reduction (2/3D), Filp, Mirror |
Power Frequency | Auto/50Hz/60Hz |
Audio | |
Audio – Channel | 2ch (stereo) |
Audio – Codec | AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
Audio – Sample Rate | 48/44.1/32/24/16/8Khz |
Interface | |
Video Output | 3G-SDI, HDMI, IP |
Audio Output | 3G-SDI, HDMI, IP |
Audio Input | MIC/Line in |
General | |
Power Requirement | AC100V-AC240V to DC12V/5A |
PoE | POE+ (IEEE 802.3at), Class 4 |
Operating Condition | Temperature: 0°C ~ +40°C; Humidity: 20% ~80% |
Storage Condition | Temperature: -20°C ~ +60°C; Humidity: 20% ~ 95% |
Dimensions | L=180 mm,W= 145 mm,H= 183.5 mm |
Weight | 1.741 kg | 1.62 kg |
Application | Indoor |
Security | Kensington slot |
Remote Control | Infrared |
Accessory | Remote control, 12V/5A power adapter |
IP Streaming | |
Resolution | 1920×1080, 1280×720, 960×540, 640×480 |
Network Video Compress Format | H.264 (High Profile), MJPEG |
Maximum Frame Rate | H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080) |
Bit-rate Control Mode | VBR/CBR (selectable) |
Range of Bit-rate setting | 512Kbps ~ 32Mbps |
Network Interface | 10/100/1000Base-T |
Multi-stream Capability | 2 |
Network Protocol | IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP |
