Description

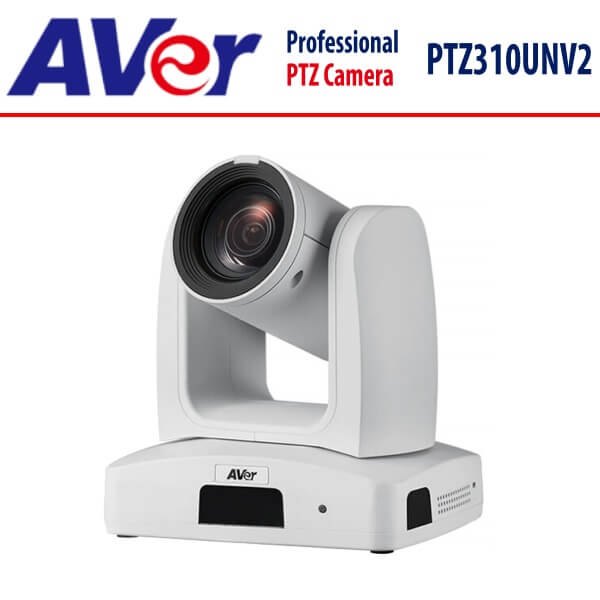

Aver PTZ310UNV2 Dubai
The Aver PTZ310UNV2 Dubai 12X 4K AI NDI PTZ Camera represents the latest advancement in PTZ technology, delivering superior image quality, comprehensive video streaming support, and AI capabilities. This camera boasts 4K resolution and an 8MP picture at 60fps, with the ability to output simultaneously via HDMI, IP, NDI HX3, and 3G-SDI. Notably, the PTZ310UNV2 is the world’s first UHD NDI HX3 camera, offering enhanced video quality with reduced latency while utilizing a fraction of the bandwidth of NDI high bandwidth. Additionally, it features Zoom and Microsoft Teams video mode for effortless conference setups, along with the SRT protocol to optimize video streaming performance across unreliable networks. The built-in AI functions enable preset content areas and adjustment of the field of view to ensure everyone is captured on screen.
Advanced Motion Control
- Achieve precise camera movement during recording
- Pan/tilt rotation maneuvers as small as 0.1° per step and as fast as 200°
- Customizable speed controls allow you to optimize your recording
Harness the Magic of NDI/HX3
- Includes the most recent edition of the NDI protocol is NDI® version 3 (NDI® |HX3)
- Features 4Kp60 NDI output with latency less than 100ms
Prepare for Any Angle
- Up to 256 different preset locations through VISCA via RS232 and RS422 functionality
- Simplified IR remote and the ability to set 10 preprogrammed preset locations
- Easy manual control of the recording view with outstanding preset locations
Seamless Content Capture with SmartShoot AI Functions
- Optimize your camera controls for automatic content capturing between preset areas
- Create a multi-camera feel across all your preset zones
- Save time and effort with a variety of shooting ranges
Tally Light
- Simplify multi-camera live video
- productions with an illuminated red
- light on the active camera.
Specifications
- Image Sensor 1/2.8” 4K Exmor CMOS
- Effective Picture Elements 8 Megapixels
- Output Resolutions 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination 0.46 lux (IRE50, F1.6, 30fps)
- S/N Ratio > 50dB
- Gain Auto / Manual
- TV Lines 1400 (Center/Wide)
- Shutter Speed 1/1 to 1/32,000 sec
- Exposure Control Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
- White Balance Auto, Manual, ATW, One Push
- Optical Zoom 12X
- Digital Zoom 1X
- Total Zoom 12X
- Viewing Angles DFOV : 79.2° (Wide) to 7.5° (Tele), HFOV : 72.1° (Wide) to 6.3° (Tele), VFOV : 44.0° (Wide) to 3.7° (Tele)
- Focal Length f = 3.9 mm (Wide) to 46.8 mm (Tele)
- Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
- Minimum Working Distance 0.3 m (Wide), 1.5 m (Tele)
- Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
- Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
- Preset Speed Pan : 200° / sec, Tilt : 200° / sec
- Preset Positions 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces RS-232 (DIN8), RS-422 (RJ45), IP
- Camera Control – Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
- Image Processing Noise Reduction (2D / 3D), Flip, Mirror
- Power Frequencies 50 Hz, 60 Hz
- Modes SmartShoot
- Audio – Channel 2ch Stereo
- Audio – Codec AAC-LC
- Video Outputs 3G-SDI, HDMI, IP, USB
- Audio Outputs 3G-SDI, HDMI, IP, USB
- Audio Input MIC in, Line in
- Power Requirement AC 100 – 240V to DC 12V/2A
- Power Consumption 19W
- PoE PoE+
- Dimensions (W x H x D) 180.0 x 192.0 x 145.0 mm
- Net Weight 2.0 (±0.1) kg
- Application Indoor
- Tally Light Yes
- Security Kensington Slot
- Remote Control Infrared
- Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
- Resolution 4K 60fps
- Network Video Compress Formats H.264, H.265, MJPEG
- Maximum Frame Rate 4K 60fps
- Bit-Rate Control Modes VBR, CBR (selectable)
- Range of Bit-Rate Setting 512 Kbps to 120 Mbps
- Network Interface 10 / 100 / 1000 Base-T
- Multi-Stream Capability 5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60)
- Network Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, H
