Description

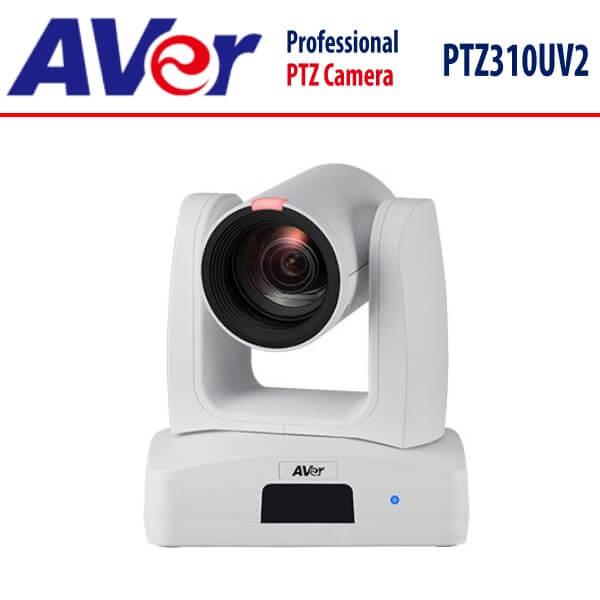

Aver PTZ310UV2 Dubai

The Aver PTZ310UV2 Dubai 12X 4K AI PTZ Camera represents our newest line of PTZ cameras, delivering superior image quality, video streaming support, and AI capabilities. This camera provides 4K resolution, an 8MP picture with 60fps, and simultaneous output of USB/IP/HDMI/3G-SDI. The PTZ310UV2 includes Zoom and Microsoft Teams video mode for convenient conference setups, as well as the SRT protocol to enhance video streaming performance on unreliable networks. Its built-in AI functions allow for preset content areas or adjustment of FOV to capture all individuals on screen.

4Kp60

• Simultaneous output at 4Kp60 with HDMI/USB/IP

Prepare for Any Angle

• Up to 256 different preset locations through VISCA via RS232 and RS422 functionality
• Simplified IR remote and the ability to set 10 preprogrammed preset locations
• Easy manual control of the recording view with outstanding preset locations

Seamless Content Capture with SmartShoot AI Functions

• Optimize your camera controls for automatic content capturing between preset areas
• Create a multi-camera feel across all your preset zones
• Save time and effort with a variety of shooting ranges

Tally Light

• Simplify multi-camera live video productions with an illuminated red light on the active camera.

Advanced Motion Control

• Achieve precise camera movement during recording
• Pan/tilt rotation maneuvers as small as 0.1° per step and as fast as 200°
• Customizable speed controls allow you to optimize your recording

Specifications

• Image Sensor    1/2.8” 4K Exmor CMOS
• Effective Picture Elements   8 Megapixels
• Output Resolutions   4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination   0.46 lux (IRE50, F1.6, 30fps)
• S/N Ratio   > 50dB
• Gain   Auto / Manual
• TV Lines  1400 (Center/Wide)
• Shutter Speed  1/1 to 1/32,000 sec
• Exposure Control  Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
• White Balance   Auto, Manual, ATW, One Push
• Optical Zoom   12X
• Digital Zoom  1X
• Total Zoom   12X
• Viewing Angles    DFOV : 79.2° (Wide) to 7.5° (Tele), HFOV : 72.1° (Wide) to 6.3° (Tele), VFOV : 44.0° (Wide) to 3.7° (Tele)
• Focal Length   f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris)   F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance   0.3 m (Wide), 1.5 m (Tele)
• Pan / Tilt Angles   Pan : ±170°, Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)   Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
• Preset Speed  Pan : 200° / sec, Tilt : 200° / sec
• Preset Positions  10 (IR), 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces  RS-232 (DIN8), RS-422 (RJ45), IP
• Camera Control – Protocols  VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
• Image Processing   Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies  50 Hz, 60 Hz
• Modes  SmartShoot
• Audio – Channel  2ch Stereo
• Audio – Codec  AAC-LC
• Video Outputs  3G-SDI, HDMI, IP, USB
• Audio Outputs  3G-SDI, HDMI, IP, USB
• Audio Input  MIC in, Line in
• Power Requirement  AC 100 – 240V to DC 12V/2A
• Power Consumption  19W
• PoE   PoE+
• Dimensions (W x H x D)  180.0 x 192.0 x 145.0 mm
• Net Weight   2.0 (±0.1) kg
• Application   Indoor
• Tally Light  Yes
• Security   Kensington Slot
• Remote Control  Infrared
• Operating Conditions  Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
• Storage Conditions   Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
