Description

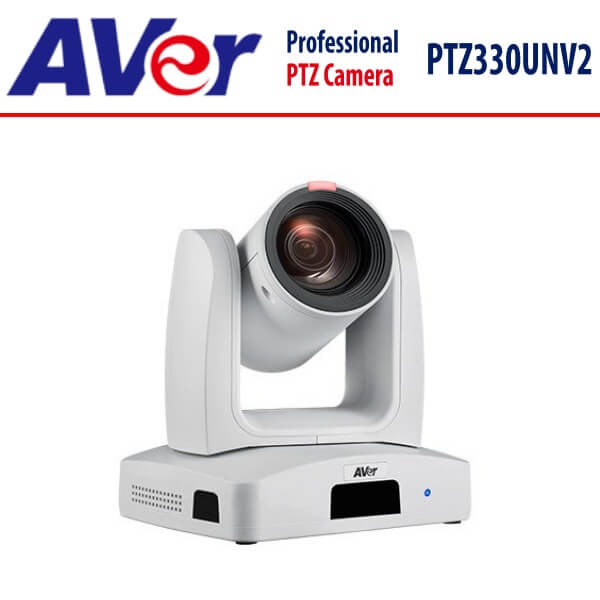

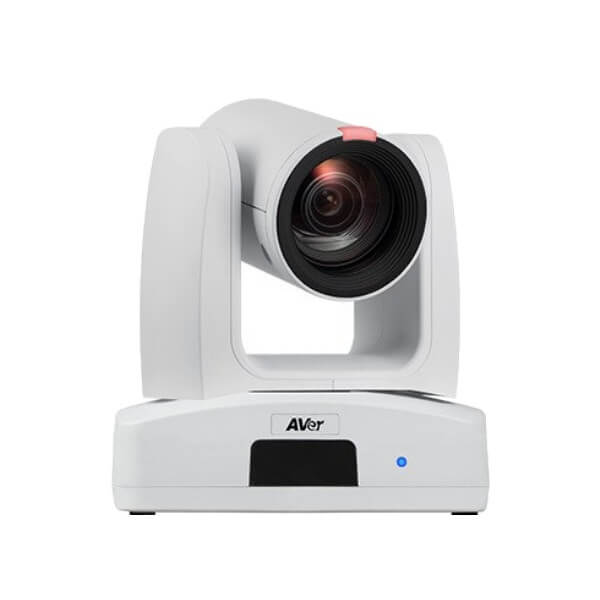

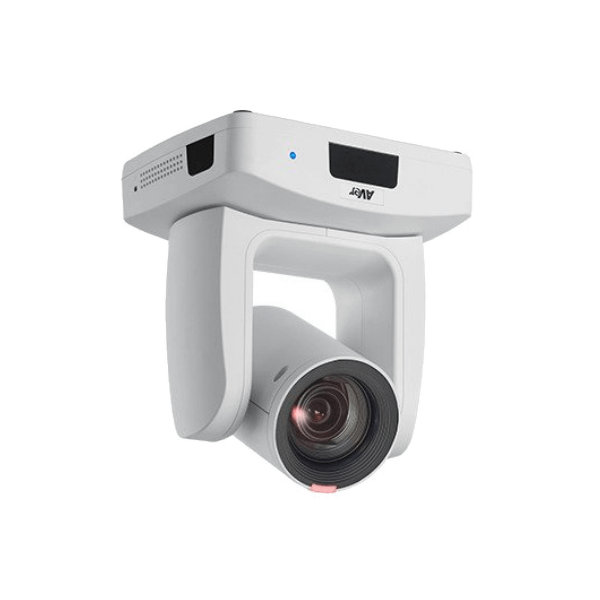

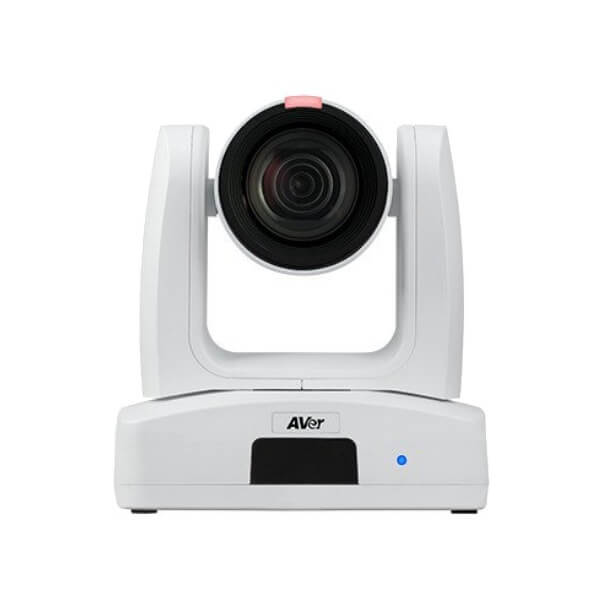

Aver PTZ330UNV2 Dubai

The Aver PTZ330UNV2 Dubai 30X 4K AI NDI PTZ Camera represents the latest advancement in PTZ technology, delivering superior image quality, robust video streaming support, and AI capabilities. This camera boasts 4K resolution, 8MP images at 60fps, and simultaneous HDMI/IP/NDI HX3/3G-SDI output. It is the world’s first UHD NDI HX3 camera, offering enhanced video quality with minimal latency and using a fraction of the bandwidth of NDI high bandwidth. The PTZ310UNV2 is equipped with Zoom and Microsoft Teams video mode for effortless conference setups, as well as the SRT protocol to optimize video streaming performance on unreliable networks. Additionally, its built-in AI functions enable preset content areas and allow for adjustment of the field of view to capture all participants on screen.

Advanced Motion Control

Achieve precise camera movement during recording
Pan/tilt rotation maneuvers as small as 0.1° per step and as fast as 200°
Customizable speed controls allow you to optimize your recording

Harness the Magic of NDI/HX3

Includes the most recent edition of the NDI protocol is NDI® version 3 (NDI® |HX3)
Features 4Kp60 NDI output with latency less than 100ms

Prepare for Any Angle

Up to 256 different preset locations through VISCA via RS232 and RS422 functionality
Simplified IR remote and the ability to set 10 preprogrammed preset locations
Easy manual control of the recording view with outstanding preset locations

Seamless Content Capture with SmartShoot AI Functions

Optimize your camera controls for automatic content capturing between preset areas
Create a multi-camera feel across all your preset zones
Save time and effort with a variety of shooting ranges

Tally Light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Specifications

Image Sensor 1/2.8” 4K Exmor CMOS
Effective Picture Elements 8 Megapixels
Output Resolutions 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination 0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio > 50dB
Gain Auto / Manual
TV Lines 1400 (Center/Wide)
Shutter Speed 1/1 to 1/32,000 sec
Exposure Control Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR
White Balance Auto, Manual, ATW, One Push
Optical Zoom 30X
Digital Zoom 1X
Total Zoom 30X
Viewing Angles DFOV : 69.2° (Wide) to 2.8° (Tele), HFOV : 62.3° (Wide) to 2.5° (Tele), VFOV : 37.3° (Wide) to 1.4° (Tele)
Focal Length f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris) F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance 0.1 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 256 (RS-232, RS-422, IP)
Camera Control – Interfaces RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequencies 50 Hz, 60 Hz
Modes SmartShoot
Audio – Channel 2ch Stereo
Audio – Codec AAC-LC

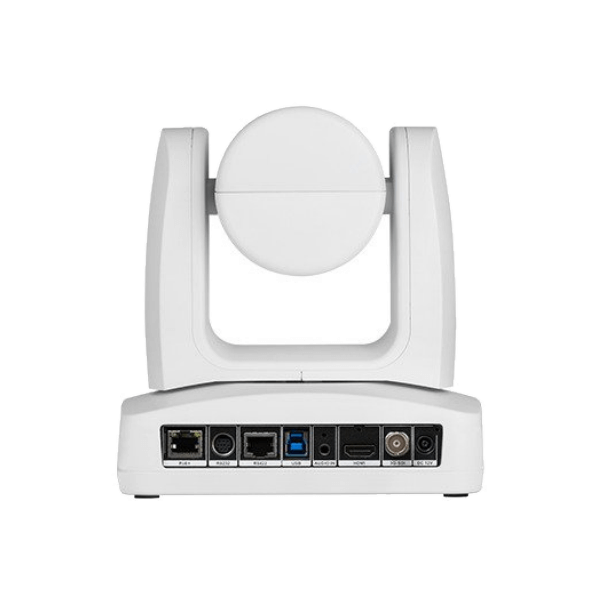

Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Input MIC in, Line in
Power Requirement AC 100 – 240V to DC 12V/2A
Power Consumption 19W
PoE PoE+
Dimensions (W x H x D) 180.0 x 192.0 x 145.0 mm
Net Weight 2.0 (±0.1) kg
Application Indoor
Tally Light Yes
Security Kensington Slot
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
Resolution 4K 60fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 4K 60fps
Bit-Rate Control Modes VBR, CBR (selectable)
Range of Bit-Rate Setting 512 Kbps to 120 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-Stream Capability 5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60)
Network Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
