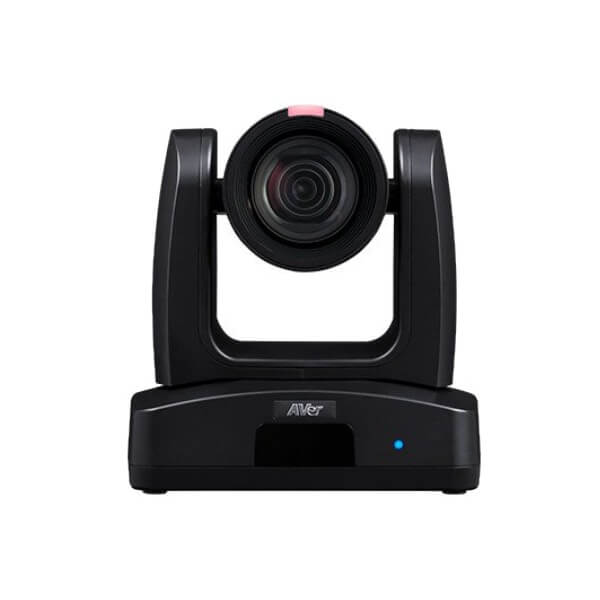

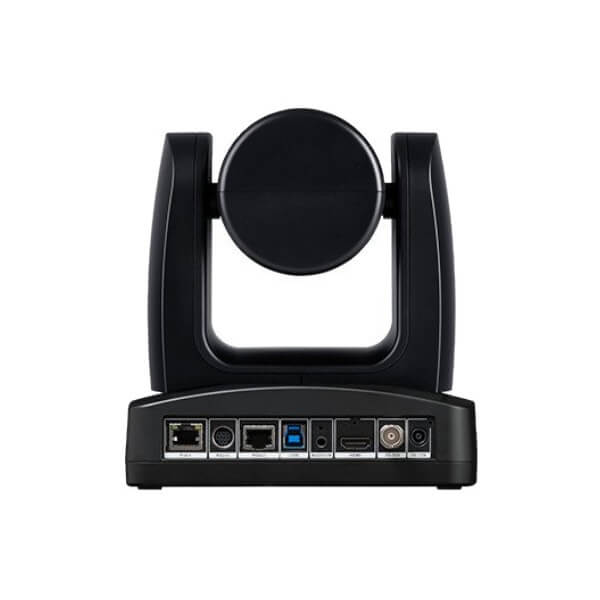

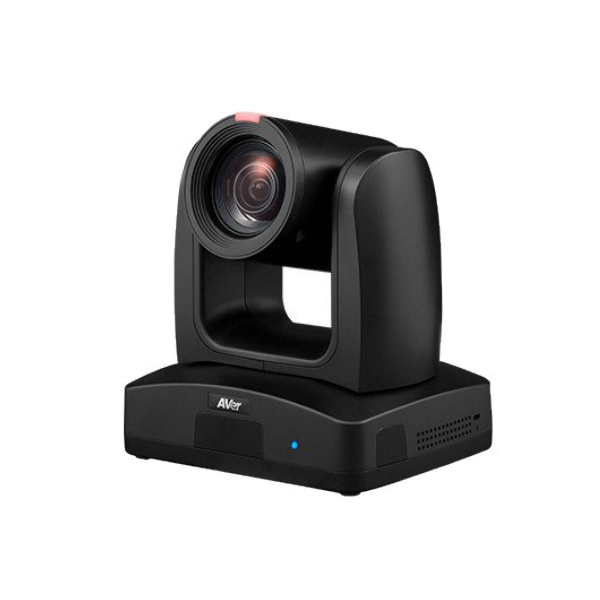

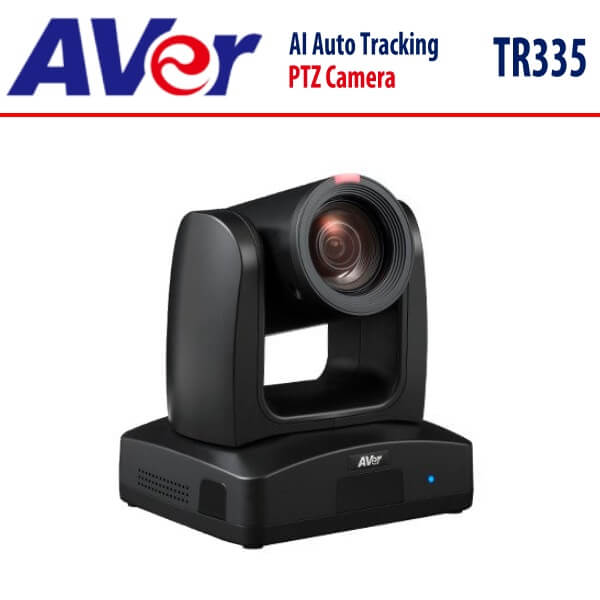

Aver TR335 Dubai

The Aver TR335 Dubai AI Auto Tracking PTZ Camera brings advanced Pro AV capabilities to users in various industries. The TR335 features exclusive functions such as Presenter Mode, Zone Mode, and Hybrid Mode tracking, powered by advanced AI processing. With a 30X Optical Zoom lens, 4K 60 fps resolution, and hybrid auto tracking, this camera is an ideal choice for broadcasting, streaming, or recording.

30X Optical Zoom Magnifies Details

Experience the exceptional power of the TR335 camera’s astounding 30X optical zoom. This feature seamlessly operates even while the camera is panning and tilting, granting you the ability to accentuate content and quickly shift between shooting perspectives. Embrace the advantage of dynamic, crystal-clear video feeds through the TR335’ s unparalleled PTZ performance.

HDMI / USB / IP. 4K 60 FPS

Leverage the TR335’s 4K 60 fps streaming potential through HDMI, USB, and IP outputs. Free from intricate configurations and cable entanglements, you can effortlessly use multiple devices simultaneously to produce fluid video streams.

AI Auto Tracking Makes Streaming Smart & Effortless

Powered by highly precise processing, AVer’s cutting-edge AI Auto Tracking algorithms easily identify and capture human figures and moving objects. You’ ll never lose track of your target again with the TR335’s unmatched tracking precision.

Presenter Mode

Get unparalleled tracking performance with Presenter Mode. This dynamic feature empowers presenters to venture beyond the stage to engage with their audience while the camera maintains seamless tracking.

Zone Mode

Zone Mode elevates your ability to capture content across multiple displays. Generate up to four dedicated Content Zones to consistently capture displayed information or items, prioritizing important presentation materials over the presenter’s movements.

Hybrid Mode

Free your performers by enabling unrestricted movement with Hybrid Mode. Use preset areas for zone tracking, letting the camera seamlessly switch to a full view of each pre-defined location as performers move through the areas. If they move beyond these zones, the camera seamlessly adapts, switching to presenter mode to effortlessly and precisely track their movements.

Specifications

Image Sensor 1/2.8” 4K Exmor CMOS

Power Requirement AC 100 – 240V to DC 12V/5A

Effective Picture Elements 8 Megapixels Power Consumption 18W

Output Resolutions

4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25,

1080p/60, 1080p/59.94, 1080p/50, 1080p/30,

1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,

1080i/50, 720p/60, 720p/59.94, 720p/50

PoE PoE+

Dimensions (W x H x D) 180.0 x 192.0 x 145.0 mm

Net Weight 2.0 (±0.1) kg

Minimum Illumination 0.5 lux (IRE50, F1.6, 30fps) Application Indoor

Shutter Speed 1/1 to 1/32,000 sec

Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

Humidity: 20% to 95%

White Balance Auto, Manual IP Streaming

Optical Zoom 30X Resolution 2160p 60fps

Digital Zoom 1X Network Video Compress Formats H.264, H.265, MJPEG

Viewing Angles

DFOV : 69.2° (Wide) to 2.8° (Tele)

HFOV : 62.3° (Wide) to 2.5° (Tele)

VFOV : 37.3° (Wide) to 1.4° (Tele)

Network Audio Compress Formats AAC-LC (48K), PCM (8K)

Maximum Frame Rate 2160p 60fps

Bit-Rate Control Modes VBR, CBR (selectable)

Focal Length f = 4.5 mm (Wide) to 135 mm (Tele) Range of Bit-Rate Setting 512 Kbps to 32 Mbps

Aperture (Iris) F = 1.8 (Wide) to 4.7 (Tele) Network Interface 10 / 100 / 1000 Base-T

Minimum Working Distance 0.1 m (Wide), 1.2 m (Tele)

Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30° Multi-Stream Capability

Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec

Preset Speed Pan : 200° / sec, Tilt : 200° / sec

Preset Positions 10 (IR), 256 (RS-232 / RS-422 / IP) Network Protocols

Camera Control – Interface RS-232 (DIN8), RS-422 (RJ45), IP, USB

Camera Control – Protocols VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P

(RS-232 / RS-422), CGI (IP), USB, ONVIF NDI® HX3 N/A

Image Processing Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC USB

Power Frequencies 50 Hz, 60 Hz Connector USB 3.1

AI Auto Tracking Functions Video Format MJPEG, YUY2

Tracking Modes Presenter Mode, Zone Mode, Hybrid Mode Audio Format PCM

Privacy Protection Mechanisms Maximum Video Resolution 2160p

Protection Mode Sleep Mode USB Video Class (UVC) UVC 1.1

AI Control Functions USB Audio Class (UAC) UAC 1.0

Gesture Control Yes Web UI

Audio Live Video Preview Yes

Channel 2ch Stereo Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
