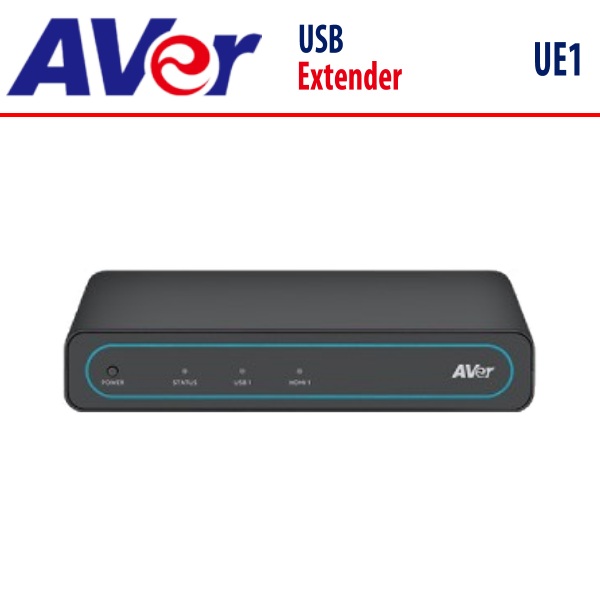

The Aver UE1 Dubai USB Extender is engineered to surpass the usual constraints of USB distance, allowing you to significantly extend the reach of your PTZ cameras far beyond what standard connections permit.

Category:

Description

Aver UE1 USB Extender Dubai

The Aver UE1 Dubai USB Extender is engineered to surpass the usual constrThe Aver UE1 Dubai USB Extender is engineered to surpass the usual constraints of USB distance, allowing you to significantly extend the reach of your PTZ cameras far beyond what standard connections permit.aints of USB distance, allowing you to significantly extend the reach of your PTZ cameras far beyond what standard connections permit. With this robust USB 3.0 extension solution, you can transmit high-bandwidth signals over extended distances without any loss in quality, ensuring uninterrupted, high-performance video output. The Aver UE1 Dubai is an ideal choice for environments where seamless connectivity is crucial, such as conference rooms, lecture halls, studios, and live-streaming setups.

By leveraging your existing cabling infrastructure, the UE1 offers a simple, cost-effective solution to maintain superior video quality, even when PTZ cameras need to be installed in remote or difficult-to-access locations. Its discreet design ensures that the extender kit integrates seamlessly into any professional setting, without drawing undue attention.

Whether you are streaming live events, recording important meetings, or facilitating remote learning sessions, the Aver UE1 Dubai USB Extender ensures smooth, reliable video transmission. It empowers you to expand your operational range without ever compromising on performance, making it a key asset in your technological toolkit.

Features

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Flexible Deployment

Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.

Compact Design

Takes up minimal space and integrates seamlessly into any environment.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Technical Specifications

  • USB Audio Class (UAC) Protocol
    • USB 3.0
  • USB Video Class (UVC) Protocol
    • USB 3.0
  • Output Resolution
    • USB: Up to 4K 60fps
    • HDMI: Up to 4K 60fps (Available in 2024Q4)
  • Transmission Rate
    • Up to 5 Gbps
  • Network Bandwidth
    • 1 Gbps
  • Transmission Distance
    • 100m (328ft.) over CAT5e/6/7 cable
  • Connections
    • Output
      • USB 3.0 Type-B x 1
      • RJ-45 x 1
      • HDMI x 1
    • Input
      • RJ-45 x 1
  • LED Indicators
    • Yes, status and connections LED
  • Power Source
    • AC 100 – 240V to DC 54V/1.2A
  • Power Consumption
    • 65W
  • Power Supply to Cameras
    • PoE++
  • Dimensions (W x H x D)
    • 0 x 32.5 x 118.0 mm
  • Net Weight
    • 62 kg
  • Operating Conditions
    • Temperature: 0 °C to +40 °C
    • Humidity: 20% to 80%
  • Storage Conditions
    • Temperature: -20 °C to +60 °C
    • Humidity: 20% to 95%
  • Warranty
    • 5 Years
  • Package Content
    • UE1, Power Adapter & Power Cord, USB 3.0 Type-A to B Cable, DIN Rail Mounting Clip, Cable Fixing Plate, Cable Tie (x3), M3 x 5.1 mm Screw (x4), Quick Start Guide
