Description

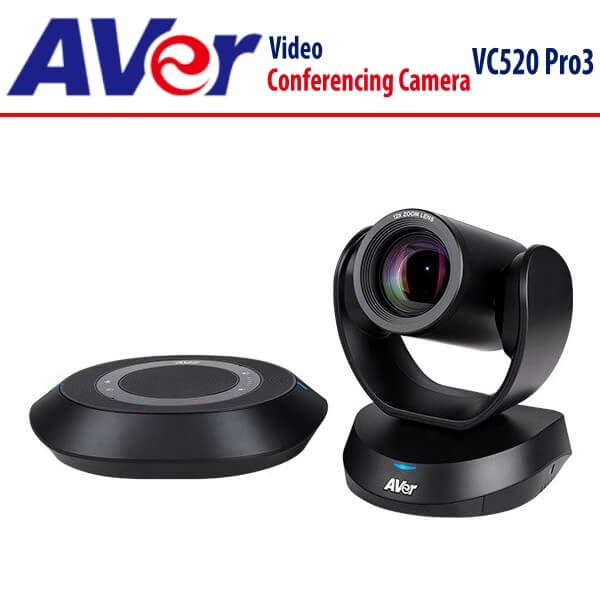

Aver VC520 Pro3 Dubai
The Aver VC520 Pro3 Dubai is a standout in advanced conferencing systems. Featuring a 36X total zoom PTZ camera, enhanced AVer SmartFrame, Preset Framing, and a Sony WDR sensor, it provides a superior video and audio experience with 3-way outputs, including HDMI connectivity for diverse streaming options. What truly distinguishes the Aver VC520 Pro3 Dubai is its Smart Composition feature, an embedded AI function that swiftly captures high-quality closeup images of meeting participants. The extended speakerphone solution further enhances the VC520 Pro3’s capability, ensuring exceptional video quality.

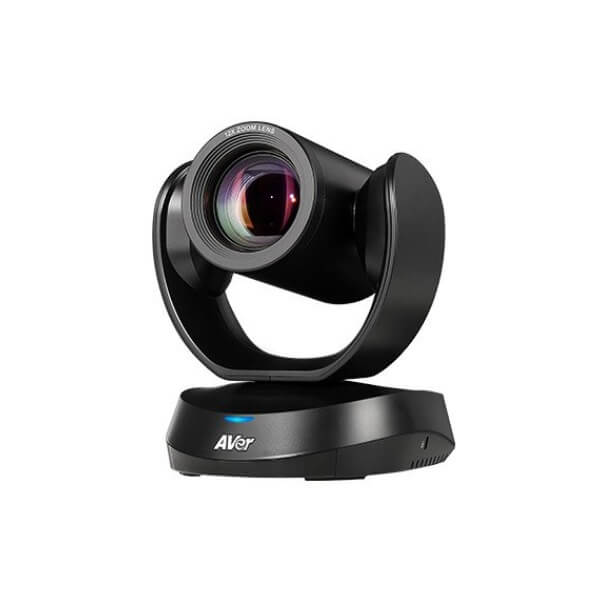

Host flawless meetings with the Aver VC520 Pro3 Dubai PTZ lens, offering an expansive 80.5° diagonal field of view and versatile pan and tilt controls. With a 12X optical lens and a remarkable 36X total zoom, including 24X lossless zoom, the VC520 Pro3 delivers exceptional clarity in remote communication. The Sony WDR sensor adapts to diverse lighting conditions, making it ideal for mid-to-large conference rooms.
The Aver VC520 Pro3 Dubai is among the first PTZ camera and audio systems to feature Smart Composition, a technology usually found in enterprise-grade devices. This AI-powered feature automatically frames each participant’s face or body perfectly, allowing seamless transitions between headshots and half-body views without any software setup. Enjoy high-definition views of participants and effortless meeting setups for optimal productivity.
Facilitating simultaneous 1080p/60fps presentations through HDMI and USB 3.1 streaming or RTSP/RTMP H.264 broadcasting, the VC520 Pro3 Dubai allows for the use of a second display or lecture recording system during virtual meetings. This connectivity ensures seamless hybrid meeting experiences for your business.
Specifications
Camera
Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
SmartFrame for automatic FOV adjustment to fit all participants.
Smart Composition function offers great visibility for the individual participant in the meeting room.
Innovative Preset Framing: Follow the presenter based on preset areas.
WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions.
Zoom: 36X* total zoom (12X optical zoom)
Field of view(D/H/V): 80.5°/72.8°/44.1°
Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
Lens F#: 1.6 (wide) ~ 2.8 (tele)
Mirror, flip, white balance: Auto/manual override via PTZApp 2
Minimum focus distance: 1m
Standard tripod screw holes and Kensington slot.
People-counting API: Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage.
*Please use PTZApp 2 to set up 36X zoom.
Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan/tilt movement
Video Format
YUV, YUY2, MJPEG
Network video compression format: H.264
Network protocol: RTSP, RTMP
Connectivity
12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)
HDMI out
USB
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0
Control
IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp 2
Mount
Camera wall-mount bracket included
Optional foldable TV mount
Optional ceiling mount
System Requirements
Windows® 7/10/11
Mac OS X 10.4 or later
Google Chromebox 3 version 94.0.4606.114 or later
PC Hardware Requirement
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB2.0 port
Webpage Browser Requirement
Chrome: Version 76.x or above
Firefox: Version 69 or above
IE: Not support
Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 5A
Dimensions
Package dimensions: 259 x 259 x 349 mm
Package weight: 5.805 kg
Camera: 150 x 153 x 182 mm/1.83 kg

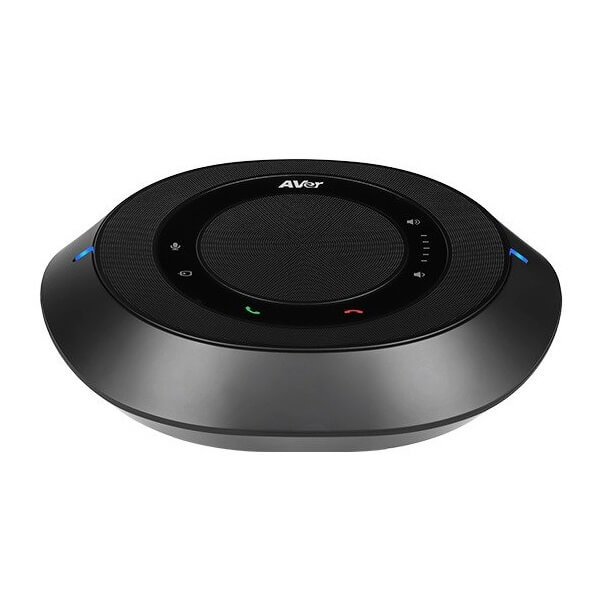

Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
Remote control: 200 x 50 x 21 mm/0.09 kg
