Description

Cisco Aironet1542D Dubai

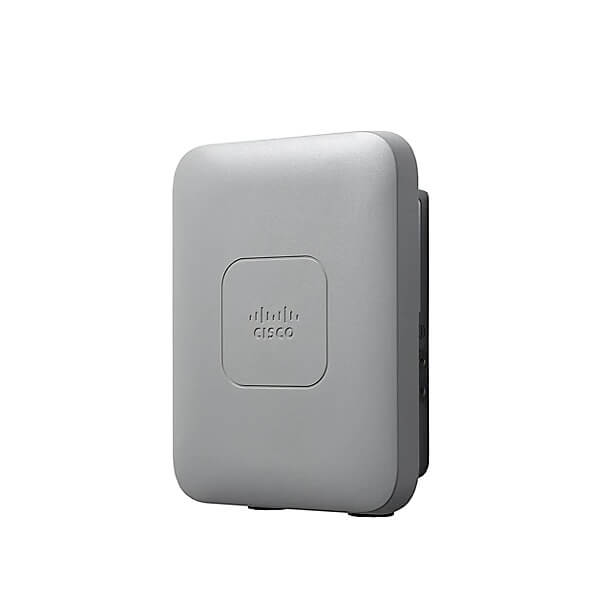

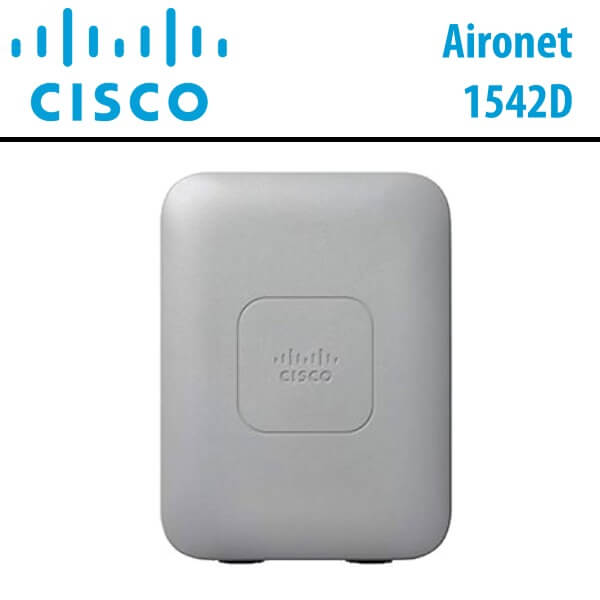

The Cisco Aironet1542D Dubai Outdoor Access Point is designed to cater to the demands of rugged outdoor Wi-Fi coverage, fully supporting the latest 802.11ac Wave 2 radio standard. Encased in a convenient, visually appealing, and easily deployable package, this access point from Cisco offers versatile deployment options for service providers and enterprise networks that prioritize ultra-fast connections for mobile outdoor devices such as smartphones, tablets, and laptops, as well as for wireless backhaul. The 1540 Series access points empower network operators to strike an optimal balance between desired wireless coverage and the need for seamless deployment.

Regardless of whether it’s employed as a standard access point or a wireless mesh access point, the Cisco Aironet1542D Dubai Outdoor Access Point is equipped to handle the throughput requirements of modern, data-intensive devices.

Key Features:

Compact size- Enables deployment of the access point where it’s needed. The Cisco Aironet1542D Dubai easily mounts to walls or light poles without disturbing the aesthetics of the area.

802.11ac Wave 2 radio- Cisco Aironet1542D Dubai provides up to 867-Mbps data rates with 2 x 2 multiuser multiple-input, multiple-output (MU-MIMO) with up to two spatial streams.

Multiuser MIMO (MU-MIMO)- Cisco Aironet1542D Dubai supports multi-user MIMO which allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience. Prior to the 802.11ac Wave 2 standard, access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

Flexible deployment modes-Allows for deployment in a variety of ways, including as traditional access points and in mesh networks. Cisco Aironet1542D Dubai can also be deployed with the Cisco Mobility Express Solution. This deployment is ideal for small to medium-sized networks that that require 50 or fewer access points without a physical controller. All deployment modes are easy to set up and configure.

Technical Details

General
Device Type	Wireless access point
Ruggedized Design	Outdoor
Width	5.9 in
Depth	7.9 in
Height	2.4 in
Weight	2.76 lbs
Localization	United States
Expansion / Connectivity
Interfaces	1 x 1000Base-T (PoE+) – RJ-45 1 x console – RJ-45
Power
Power Over Ethernet (PoE) Supported	PoE+
Power Consumption Operational	13 Watt
Antenna
Antenna	Internal
Antenna Qty	2
Directivity	Omni-directional
Gain Level	5 dBi
Networking
Form Factor	External
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Network / Transport Protocol	L2TP, IPSec
Frequency Band	2.4 GHz, 5 GHz
Capacity	Spatial streams: 2
Features	MAC address filtering, VPN passthrough, reset button, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), 2×2 MU-MIMO technology
Encryption Algorithm	LEAP, AES, TLS, PEAP, TTLS, WPA2
Authentication Method	X.509 certificates, Extensible Authentication Protocol (EAP)
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Manufacturer Warranty
Service & Support	Limited warranty – advance parts replacement – 1 year – response time: 10 days
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	149 °F
Miscallaneous
Compliant Standards	EN 60950, ICES-003, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, IP67, X.509, MIL-STD-810, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, IEC 60529, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, EN 301 893, EN 301 489-17
