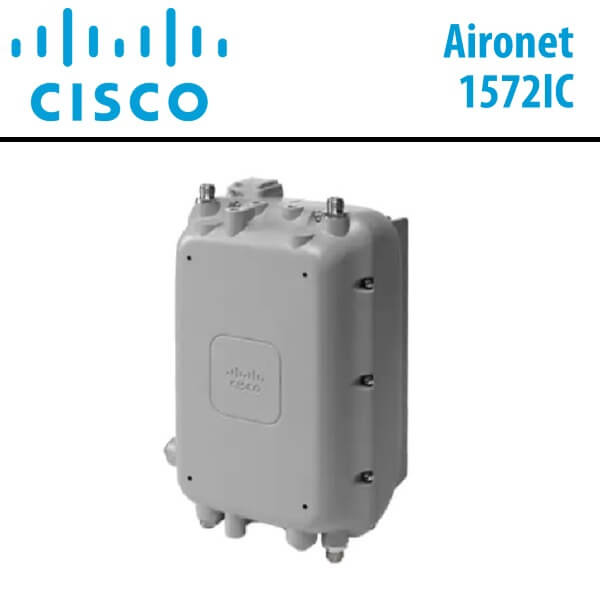

Cisco Aironet1572IC Dubai

Cisco Aironet1572IC Dubai

The Cisco Aironet1572IC Dubai Series outdoor access point is designed for both enterprise and carrier-class network operators seeking to expand their Wi-Fi coverage in outdoor environments. It stands as an exceptional performing outdoor AP within the industry.

Category:

Description

Cisco Aironet1572IC Dubai

The Cisco Aironet1572IC Dubai Series outdoor access point is designed for both enterprise and carrier-class network operators seeking to expand their Wi-Fi coverage in outdoor environments. It stands as an exceptional performing outdoor AP within the industry, supporting the Wi-Fi standard, 802.11ac, and achieving data connection speeds of up to 1.3 Gbps. Featuring an industrial-grade build, the Cisco Aironet1572IC Dubai integrates 4×4 multiple-input and multiple-output (MIMO) smart antenna technology, along with three spatial streams, to ensure optimal performance.

Features:

802.11ac support with 4×4 MIMO, three spatial streams-Delivers higher data rates over a greater area with pervasive coverage than any competing AP. Provides a data rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points.

Maximum RF radiated power allowable on both 2.4 and 5 GHz radios- Lets you use the fewest number of APs to get the greatest possible area coverage and highest throughput rates.

Modular architecture design- The architecture of the Cisco Aironet1572IC Dubai models provides the flexibility for a potential add-on module for future proofing and investment protection. For example, you could add external modules with technology options such as a 4G LTE picocell or a sensor. Such a module could be field-upgradeable to an existing 1570 network.

GPS support- Keeps track of the location of all outdoor APs deployed. With a built -in GPS receiver, the coordinates of the AP can be located by your WLAN controller or management system.

Technical Specs

Part Number AIR-AP1572IC3-E-K9
Description 802.11ac Outdoor AP, Internal Antenna, Cable EU-D3.0 65/108MHz, E Regulatory Domain
Features
  • 4×4 MIMO with three spatial streams (3SS)
  • Maximum Ratio Combining (MRC)
  • 802.11ac Beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
Interfaces
  • WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • LAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
  • Fiber SFP
  • Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0 (8×4, 16×8, or 24×8)
  • Management console port (RJ-45)
  • Four multicolor LEDs
  • Reset button
Dimensions (L x W x H) 11.8 x 7.9 x 7.9 in. (30.0 x 20.1 x 20.1 cm)
Weight 11.5 lbs. (5.2 kg)
