Description

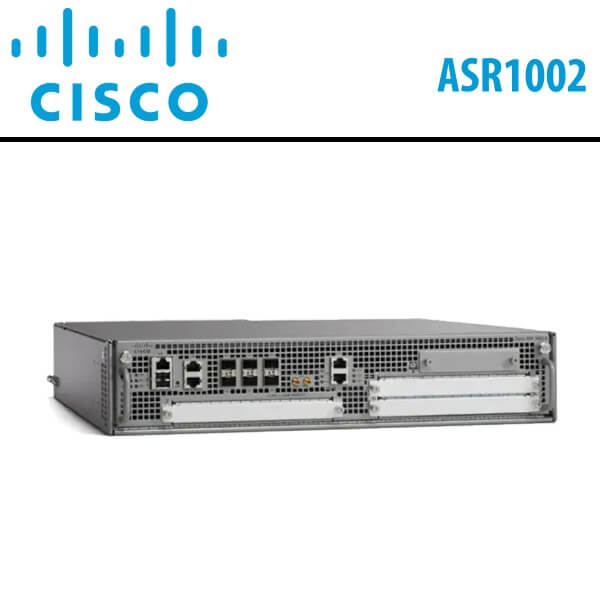

Cisco ASR1002 Dubai
The Cisco ASR1002 Dubai provides a route processor for controlling the embedded services processor, responsible for managing data plane traffic. It also includes a carrier card specially designed to accommodate I/O modules and shared port adapters, all seamlessly integrated within the chassis. The Cisco ASR1002 Dubai is equipped with four built-in SFP ports and three box slots for streamlined I/O connectivity.
The integrated route processor is initially configured with 4GB DRAM, with the option to upgrade to 8GB or 16GB, ensuring efficient performance and scalability.
Features
Redundant hardware components and power supplies-
- Provides system and business continuity.
- Redundant Route Processors and Embedded Services Processors in ASR 1006 and ASR 1013.
- Redundant instances of Cisco IOS XE Software in ASR 1001, ASR 1001-X,Cisco ASR1002 Dubai, ASR 1002-X, and ASR1004.
Stateful inter-chassis redundancy-
- Redundant hardware combined with modular software contains faults preventing systemwide failure.
- Enables redundancy across routers by using a pair of routers to act as backup for each other. Provides 99.999% (“five-nines”) availability for consistent, high-performance user application experiences.
Cisco QuantumFlow Processor-based platform-
Enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration-
Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Technical Details
| Rack Height | 2RU |
| System Bandwidth | 2.5G (default) / 5G, 10G, 20G (upgrade) |
| Router Processor (RP) | Quad-core 2.13Ghz processor |
| Build-in Gigabit Ethernet port | 4 x SFP ports |
| Redundancy | Software (license purchase separately) |
| Cisco ASR 1000 Series ESP | 1 ESP slot |
| SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable |
| Rack-mounting | 19-inch |
| DRAM Memory | 4GB-shared across RP and SIP |
| Flash Memory | 8 GB |
| Shared port adapters | 3 SPA slots |
| External USB flash memory | 1-GB USB flash-memory support |
