Description

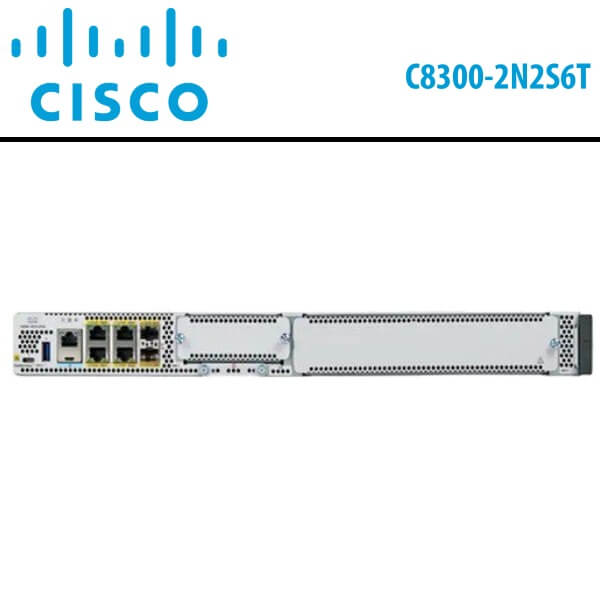

Cisco C8300-2N2S6T Dubai
The Cisco C8300-2N2S6T Dubai, provide choices ranging from varied module densities, ensuring backward compatibility with existing WAN, LAN, voice, and compute modules. These platforms are powered by Cisco IOS XE, featuring a fully programmable software architecture and API support, enabling seamless automation at scale. This facilitates the attainment of a zero-touch IT capability, streamlining the migration of workloads to the cloud. Furthermore, the Cisco C8300-2N2S6T Dubai Edge Platforms are fortified with the Trustworthy Solutions 2.0 infrastructure, ensuring robust protection against threats and vulnerabilities through integrity verification and threat remediation.
Features:
Multicore processors-
- Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
- High-performance multicore processors support high-speed WAN connections.
- Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.
Embedded IPsec VPN hardware acceleration-
- Cisco C8300-2N2S6T is integrated with up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
- Increases scalability for IPSec throughput needs for medium- and large-sized branches
- SSL and crypto hardware acceleration
Integrated Gigabit Ethernet ports-
- Cisco C8300-2N2S6T Dubai provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
- All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.
DRAM-
- Cisco C8300-2N2S6T Dubai has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.
M.2 storage-
- The Cisco C8300-2N2S6T Dubai ships with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe
Technical Details
| Part number | C8300-2N2S-6T |
| Description | C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports) |
| Multicore processors | Intel x86 CPU with 8 GB memory default |
| Embedded IPsec VPN hardware acceleration | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
| DRAM | 8 GB |
| SD-WAN overlay tunnels scale | 6000 |
| Integrated Gigabit Ethernet ports | 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN
2 SFP Ethernet ports, 4 RJ45 ports |
| Flash memory support | 8-GB flash |
| M.2 storage | With default 16G M.2 USB for SD-WAN logging and additional storage on the platform and can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage |
