Description

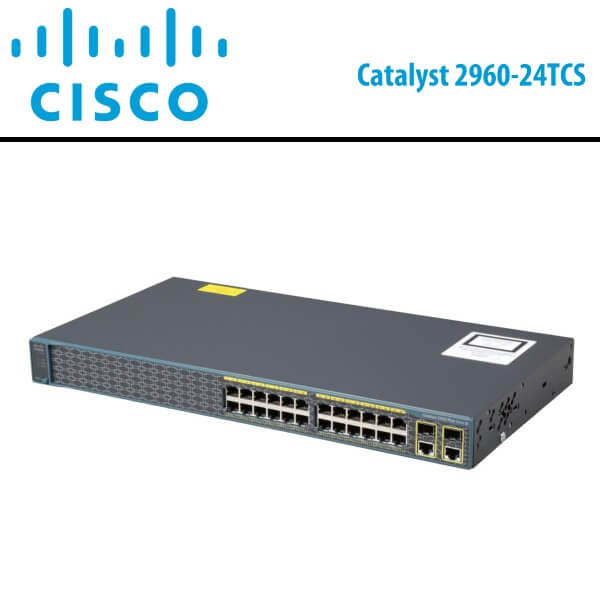

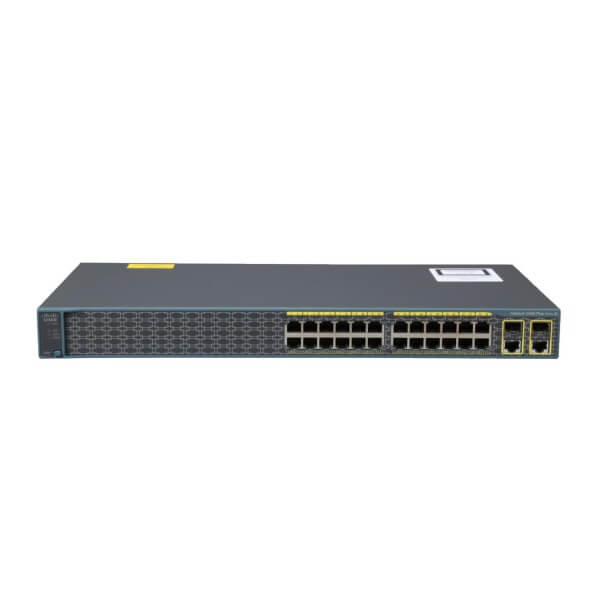

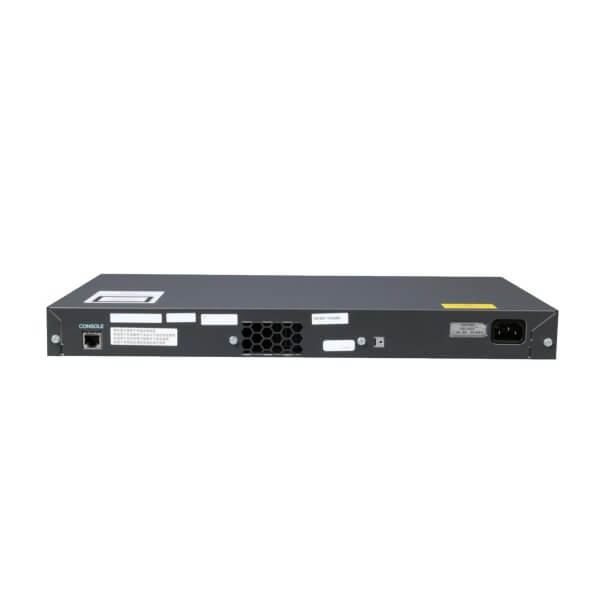

Cisco Catalyst2960-24TCS Dubai
The Cisco Catalyst2960-24TCS Dubai represents a top-tier switch designed for small-to-medium sized business networks, offering extensive functionality and control. Equipped with twenty-four Fast Ethernet ports and two dual-purpose uplink ports, this switch can operate as either a Gigabit Ethernet port or an SFP-based Gigabit Ethernet port. Using the provided Lan Lite software, configuring the switch is a simple and efficient process. Additionally, the Cisco Catalyst2960-24TCS Dubai switch boasts advanced features such as Quality of Service, rate-limiting, Access Control Lists, IPv6 management, and multicast control.
Features
- Cisco Catalyst2960-24TCS Dubai supports Layer 2 Fast Ethernet switching in a 24-port configuration with 2 dual-purpose uplink ports(10/100/1000 or SFP)
- Security management through SSH, SSL, SNMPv3, and Network Admission Control enabled through 802.1x, MAC-Auth Bypass, and Port Security
- Availability : 802.1S/W enables standards-based fault tolerance, load balancing, and rapid recovery; PVST+ increases available bandwidth by allowing traffic on redundant links
- QoS : Cisco Catalyst2960-24TCS Dubai supports traffic classification and shaping to prioritize various applications
- Management : Cisco IOS software based switch operation, Cisco Network Assistant support : Express Setup is quick and easy using the web page interface for network configuration
- Simplified installation, configuration, and troubleshooting with ease of use capabilities such as Auto Smart Ports and DHCP Auto Install
- Cisco Catalyst2960-24TCS Dubai supports enhanced troubleshooting for link connectivity issues and cable diagnostics
- Single IP address, SYSLOG, SNMP management for a stack of up to 16 switches
- Limited lifetime hardware warranty
- Software updates at no additional charge
Specifications
| Performance | |
| Standards | IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP without MED) IEEE 802.3ad IEEE 802.3ah (100BASE-X single- and multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification 100BASE-FX (SFP) 1000BASE-SX (SFP) 1000BASE-LX/LH (SFP) Remote Monitoring (RMON) I and II standards SNMPv1, v2c, and v3 |
| Protocols | TCP/IP |
| Ports | 24 x Ethernet 10/100
2 x dual-purpose ports (10/100/1000 or SFP) |
| Bandwidth | Forwarding Bandwidth : 16Gbps |
| Flash Memory | 32MB |
| Memory (DDR SDRAM) | 64MB |
| Speed | 10/100 Mbps 10/100/1000 Mbps (dual-purpose ports only) |
| MAC Address Table Size | 8K |
| Frame Rate | 9016 bytes |
| Switching Method | Managed |
| VLANs | up to 64
up to 4000 IDs |
| Output Data Size | Maximum Transmission Unit (MTU) : Up to 9198 bytes |
| Maximum Forwarding Rate | 6.5mpps |
| Advanced Features | Unicast MAC Addresses
Default : 8000 QOS : 8000 Dual : 8000IPv4 IGMP Groups Default : 256 QoS : 256 Dual : 256 IPv4 MAC QoS Acccess Control Entries (ACEs) Default : 128 QoS : 384 Dual : 0 IPv4 Mac Security ACEs Default : 384 QoS : 128 Dual : 256 |
| Management | BRIDGE-MIB
CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MI CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB Cisco-UDLDP-MIB CISCO-TC-MIB CICSO-TCP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB |
| Pressure Levels | Typical Sound Pressure : 40dB |
| MTBF | 403,745 hours |
| General | |
| Agency & Safety Certifications | ·UL 60950-1, Second Edition
·CAN/CSA 22.2 No. 60950-1, Second Edition ·TUV/GS to EN 60950-1, Second Edition ·CB to IEC 60950-1 Second Edition with all country deviations ·CE Marking ·NOM (through partners and distributors) |
| Emissions Standards | ·FCC Part 15 Class A
·EN 55022 Class A (CISPR22) ·EN 55024 (CISPR24) ·AS/NZS CISPR22 Class A ·CE ·CNS13438 Class A ·MIC ·GOST ·China EMC Certifications |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
| Environmental Requirements | Operating Temperature Up to 5,000′ / 1500 m : 23° to 113°F / -5° to 45°C
Operating Temperature Up to 10,000′ / 3000 m : 23° to 104°F / -5° to 40°C Short-term Exception at Sea Level : 23° to 31°F / -5° to 55°C Short-term Exception Up to 5000′ / 1500 m : 23° to 122°F / -5° to 50°C Short-term Exception Up to 10,000′ / 3000 m : 23° to 113°F / -5° to 45°C Operating Altitude : Up to 10,000′ / 3,000m Storage Altitude : Up ot 13,000′ / 4,000m Operating Relative Humidity : 10% to 95% non-condensing |
| Power Consumption | 100% Throughput
Measured Power Consumption : 22W 5% Throughput Measured Power Consumption : 21W |
| Power Requirements | 100 to 240 VAC, 1.3 to 0.8 A, 50 to 60 Hz |
| Power Rating | 0.05kVA |
| Safety Compliance | UL 60950-1, Second Edition
CAN/CSA 22.2 No. 60950-1, Second Edition TUV/GS to EN 60950-1, Second Edition CB to IEC 60950-1 Second Edition with all country deviations CE Marking NOM (through partners and distributors) |
| Emission Standard | FCC Part 15 Class A
EN 55022 Class A (CISPR22) EN 55024 (CISPR24) AS/NZS CISPR22 Class A CE CNS13438 Class A MIC GOST China EMC Certifications |
| RoHS Compliant | Yes |
| Dimensions | 1.73 x 17.7 x 9.52″ / 4.4 x 45 x 24.2cm |
| Weight | 8 lb / 3.6kg |
| Packaging Info | |
| Box Dimensions (LxWxH) | 21.8 x 14.2 x 6.8″ |
