Description

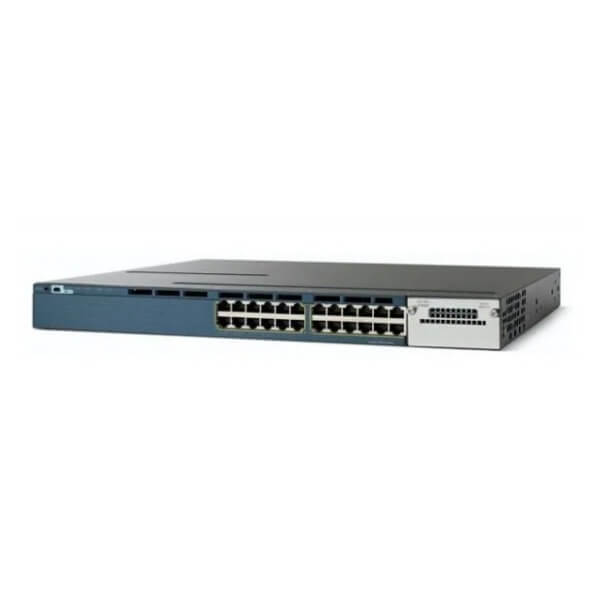

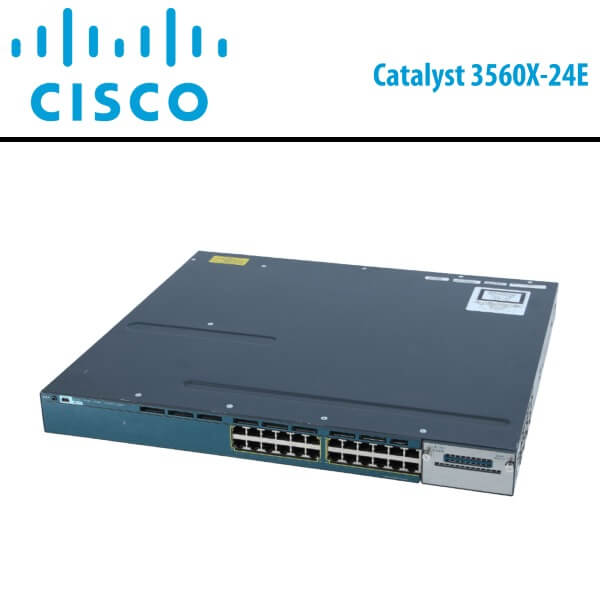

Cisco Catalyst3560X-24E Dubai
The Cisco Catalyst3560X-24E Dubai is a standalone switch featuring 24 Gigabit Ethernet POE+ ports, with the option of four additional 1G/10G network uplink modules and no stacking capability in the IP service feature set. The WS-C3560X-24E adheres to the IEEE802.3at standard, allocating up to 30W power on each port, with a total POE budget of 435W to support IP phones, wireless devices, and video equipment. Users have the flexibility to specify power settings for individual ports through command line configuration.
With the IP service feature set, this switch provides extensive functionality, supporting up to 1005-VLANs, advanced layer 3 routing features, enhanced security features, and comprehensive management capabilities. Tailored for enterprise distribution layer switching with full layer 3 capability, the Cisco Catalyst3560X-24E Dubai includes features such as BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced QoS, and VRF-lite.

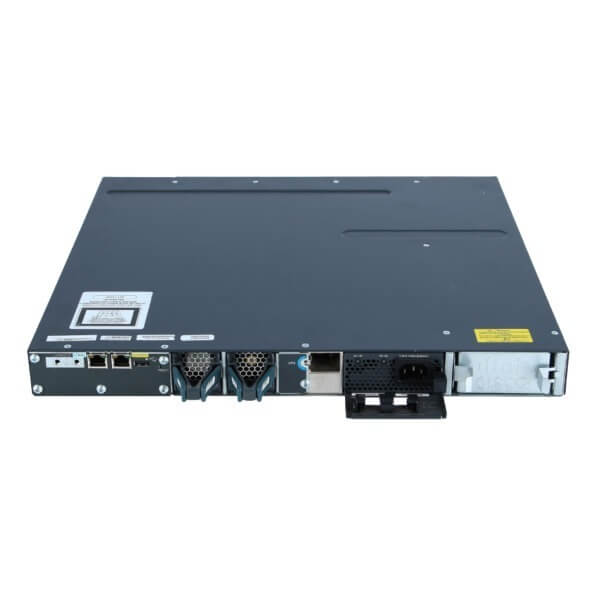

The WS-C3560X-24P-E switch is equipped with one default power supply module, and for added power redundancy, customers have the option to purchase an additional power supply module to insert into power supply bay 2.
Features
- 24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
- 435W POE power budget with up to 30W per port
- Dual redundant, modular power supplies and fans
- IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR
- 64MB flash and 256 memory (DRAM)
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Technical Specs
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-24E |
| Product Type | Switch – 24 ports – L3 – Managed |
| Form Factor | Rack mountable – 1U |
| Switch Ports | 24 x 10/100/1000 Ethernet POE+ Ports |
| Performance | Switching capacity : 160 Gbps |
| Routing Protocol | RIP-1, RIP-2, HSRP, BLGP, VRRP, EIGRP, OSPF, BGP, PIM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP, BGP, OSPF, PIM, IPv4/IPv6 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45
USB : 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply | |
| Power Device | Power supply – redundant – plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7 kg |
| Rack Mounting Kit | Optional |
| MTBF | 208,218 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Service |
