Description

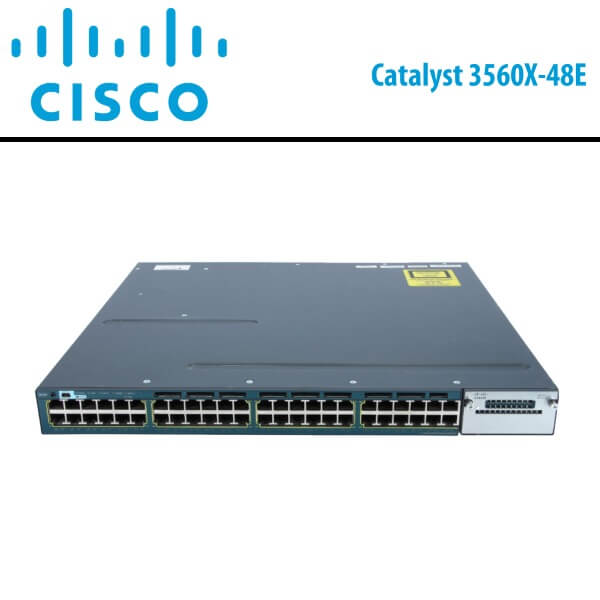

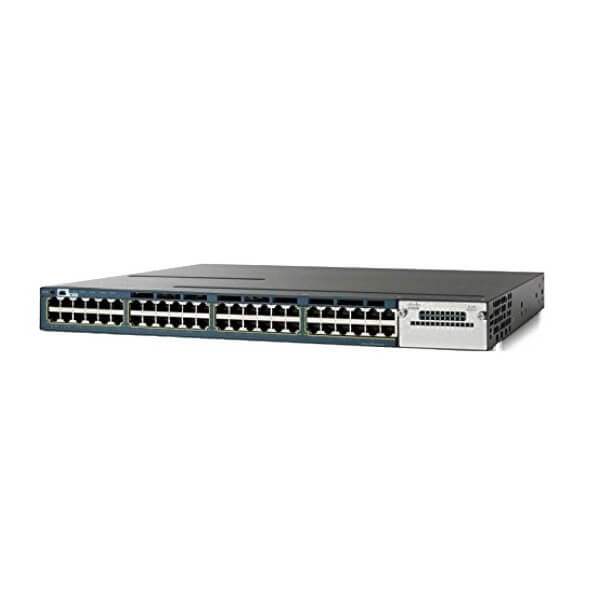

Cisco Catalyst3560X-48E Dubai

The Cisco Catalyst3560X-48E Dubai is a standalone switch featuring 48 Gigabit Ethernet POE+ ports and four optional 1G/10G network uplink modules. Operating within the IP service feature set, this switch does not support stacking. The WS-C3560X-48P-E adheres to the IEEE802.3at standard, allocating up to 30W power on each port, with a total POE budget of 435W to support IP phones, wireless devices, and video equipment. Users have the flexibility to specify power settings for individual ports through command line configuration.

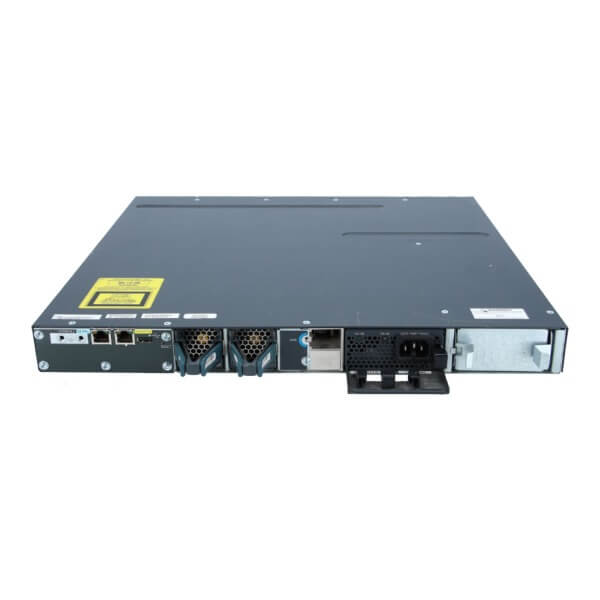

Designed for enterprise distribution layer switching, the Cisco Catalyst3560X-48E Dubai boasts full layer 3 capability, including BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced QoS, and VRF-lite. The WS-C3560X-48P-E switch is equipped with one default power supply module, and for enhanced power redundancy, customers can acquire an additional power supply module to insert into power supply bay 2.

Features

48 * 10/100/1000 Ethernet PoE+ ports
Four optional uplink network modules with GE or 10GE ports435W POE power budget with up to 30W per port
Dual redundant, modular power supplies and fans
IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR
64MB flash and 256 memory (DRAM)
USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Specs

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS-C3560X-48P-E
Product Type	Switch – 48 ports – L3 – Managed
Form Factor	Rack mountable – 1U
Switch Ports	48 x 10/100/1000 Ethernet POE+ Ports
Power Over Ethernet (PoE)	Yes
Routing Protocol	OSPF, Eigrp, PIM, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP, OSPF, BGP, PIM
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory	256 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces	48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE USB : 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s)	1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device	Power supply – redundant – plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width	44.5 cm
Depth	46 cm
Height	4.5 cm
Weight	7.4 kg
Rack Mounting Kit	Optional
MTBF	149,594 hour(s)
Compliant Standards	CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included	Cisco IOS IP Service
