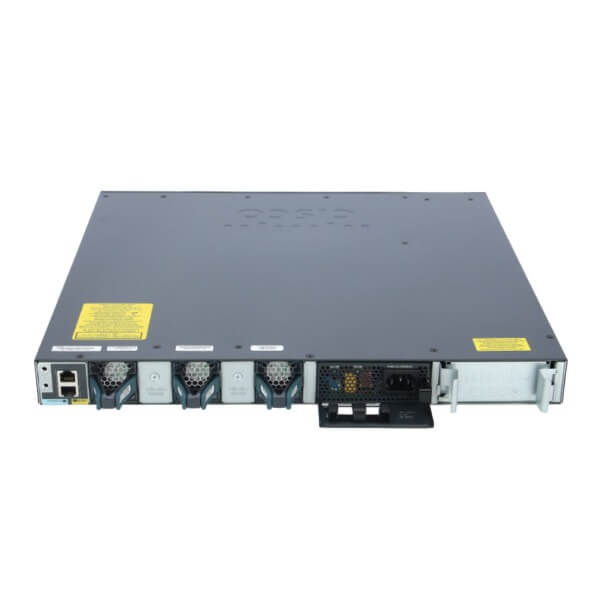

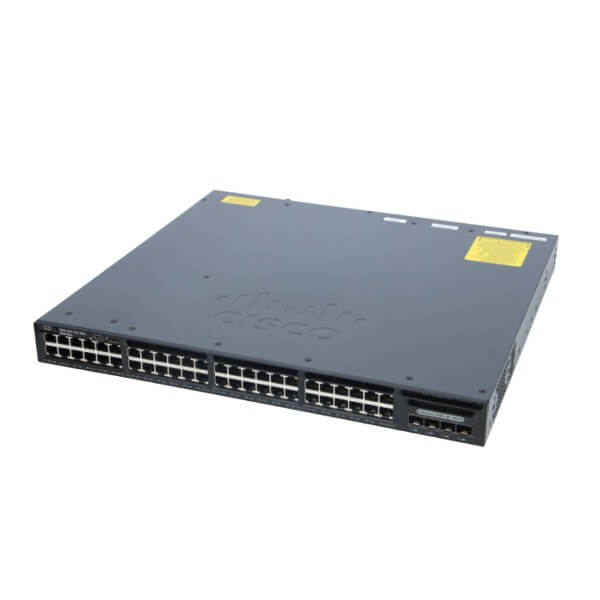

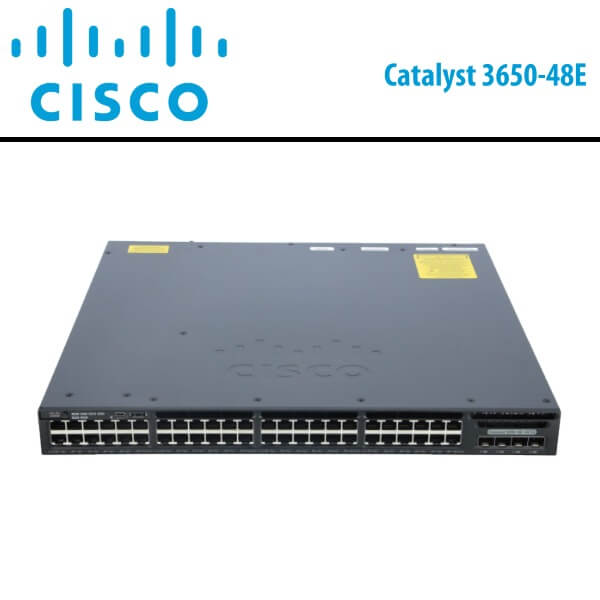

Cisco Catalyst3650-48E Dubai

Cisco Catalyst3650-48E Dubai

The Cisco Catalyst3650-48E Dubai represents the next stage in the evolution of enterprise-class standalone and stackable access-layer switches, serving as the cornerstone for achieving complete convergence between wired and wireless networks on a unified platform.

Category:

Description

Cisco Catalyst3650-48E Dubai

The Cisco Catalyst3650-48E Dubai represents the next stage in the evolution of enterprise-class standalone and stackable access-layer switches, serving as the cornerstone for achieving complete convergence between wired and wireless networks on a unified platform. Specifically, the Cisco Catalyst3650-48E Dubai is built on the sophisticated Cisco StackWise-160 and leverages the capabilities of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

This switch is engineered to facilitate the consistent enforcement of wired-wireless policies, offering features such as application visibility, flexibility, application optimization, and robust resiliency. As part of the Cisco Catalyst 3650 series, these switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and they are equipped with modular and field-replaceable redundant fans and power supplies. In doing so, they contribute to the enhancement of wireless productivity and the reduction of Total Cost of Ownership (TCO).

Features

  • Cisco Catalyst3650-48E Dubai is integrated with wireless controller capability with :
    • Up to 40G of wireless capacity per switch (48-port models)
    • Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
  • 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
  • Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
  • Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
    • Dual redundant, modular power supplies and three modular fans providing redundancy
    • Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
  • Cisco Catalyst3650-48E Dubai has built-in Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
  • Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
  • Cisco Catalyst3650-48E Dubai is integrated with enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Technical Details

  • Actual Weight : 80 lb(s)
  • Compatibility Notes
    • 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports.
    • Three fixed-uplink models with 4x Gigabit Ethernet, 2x 10 Gigabit Ethernet, or 4x 10 Gigabit Ethernet ports.
    • Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features.
  • Connectivity Ports: 48
  • Contents : Switch, rack mounting kit, documentation
  • General
    • Color : Black
    • Warranty Period : Limited lifetime
  • Memory
    • RAM (installed) : 4GB
  • Memory Notes
    • 4GB RAM, 2GB Flash
  • Physical Dimensions : 7″h x 17.5″w x 17.6″d
  • Ports/Connectors
    • (48) PoE+
    • (1) USB Type A
    • (1) RJ-45 Serial
    • (1) RJ-45 LAN
    • (1) Mini USB Type B
    • (2) SFP+
  • Protocols
    • Networking Protocol : PoE+
    • Networking Protocol : SSH
    • Networking Protocol : IEEE 802.3
    • Networking Protocol : IEEE 802.3u
    • Networking Protocol : IEEE 802.3z
    • Networking Protocol : IEEE 802.1D
    • Networking Protocol : IEEE 802.3ab
    • Networking Protocol : IEEE 802.1p
    • Networking Protocol : IEEE 802.3af (PoE)
    • Networking Protocol : IEEE 802.3x
    • Networking Protocol : IEEE 802.3ad
    • Networking Protocol : IEEE 802.1w (RSTP)
    • Networking Protocol : IEEE 802.1x
    • Networking Protocol : IEEE 802.3at
    • Remote Management Protocol : CLI
    • Remote Management Protocol : RMON 1
    • Remote Management Protocol : RMON 2
    • Remote Management Protocol : RMON 3
    • Remote Management Protocol : RMON 9
    • Remote Management Protocol : SNMP 1
    • Remote Management Protocol : SNMP 2c
    • Remote Management Protocol : SNMP 3
    • Remote Management Protocol : Telnet
    • Remote Management Protocol : SSH
    • Routing Protocol : Static IP routing
  • Returns Policy : Due to manufacturer restrictions, all sales on this item are final.
  • Shipping Weight : 1 lbs
  • Standards
    • Compliant Standards : RoHS
    • Compliant Standards : KCC
    • Compliant Standards : FCC Part 15 A
    • Compliant Standards : VCCI Class A
