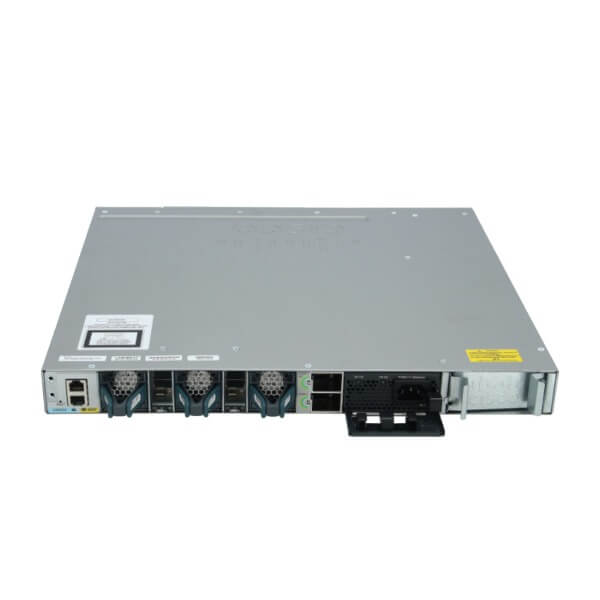

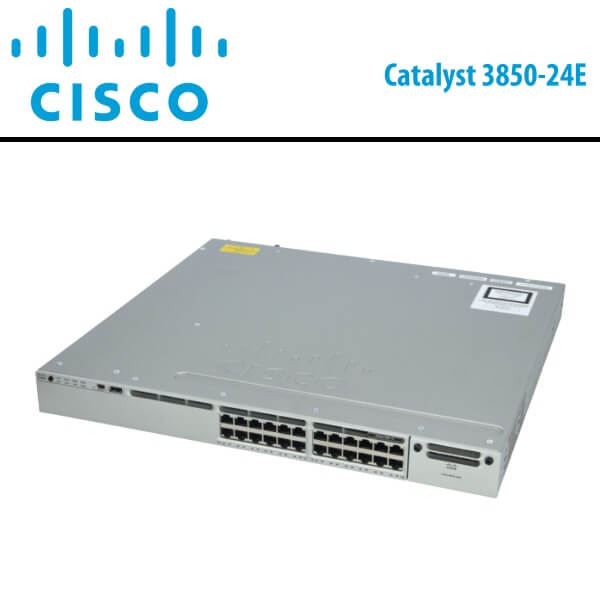

Cisco Catalyst3850-24E Dubai

The Cisco Catalyst3850-24E Dubai is an enterprise-level switch that can be stacked, featuring 24 SFP ports within the IP service feature set. The WS-C3850-24S-E provides advanced layer 2-4 switching capabilities, making it an optimal solution for both access and aggregation layers.

Tailored to support the convergence of wired and wireless access, the Cisco Catalyst3850-24E Dubai Switch incorporates the new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC). This ASIC empowers the switch, enabling uniform enforcement of wired-wireless policies, along with features like application visibility, flexibility, and application optimization. The resilience of the Cisco StackWise-480 technology underpins this convergence.

Moreover, the Cisco Catalyst3850-24E supports full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45, and fiber-based downlink interfaces, along with redundant fans and power supplies.

Features

• Cisco Catalyst3850-24E Dubai has Integrated wireless controller capability with support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
• 24 10/100/1000 Ethernet PoE+ [435W] ports with Energy-Efficient Ethernet (EEE)
• Cisco Catalyst3850-24E Dubai is integrated with Cisco StackWise-480 technology which provides scalability and resiliency with 480 Gbps of stack throughput
• Cisco StackPower technology provides power stacking among stack members for power redundancy
• Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor
• 715WAC power supply 1 RU
• IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
• Cisco Catalyst3850-24E Dubai supports IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS
• Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features
• Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
• Cisco Catalyst3850-24E Dubai offers Cisco DNA services delivered through Cisco ONE^™Software, providing simplified, high-value solutions with license portability and flexibility
• Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models
• Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
