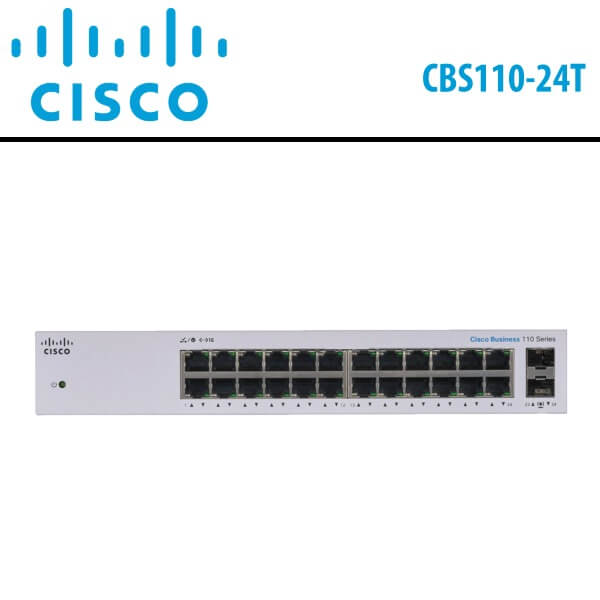

Cisco CBS110-24T Dubai

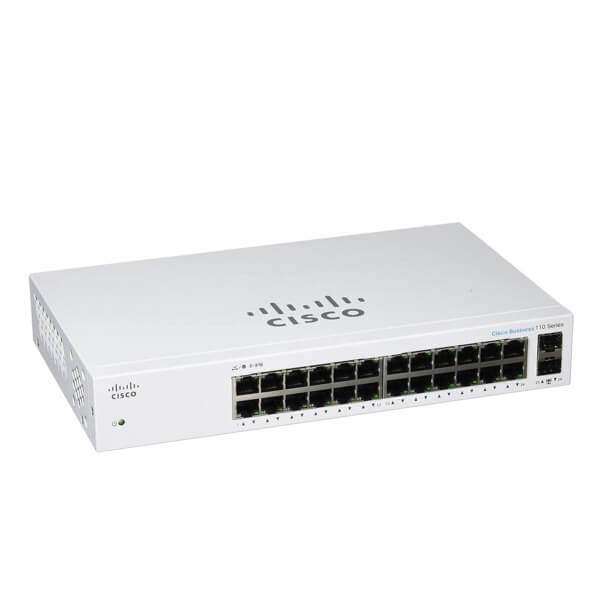

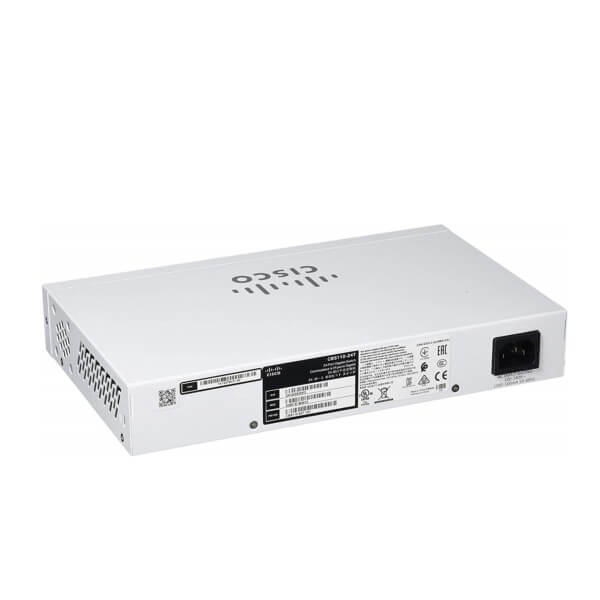

The Cisco CBS110-24T Dubai switch boasts 24 standard Gigabit Ethernet ports tailored for conventional networking functionalities. For enhanced versatility, it incorporates two extra SFP expansion slots, enabling the attachment of optional fiber-optic modules. Each port operates on Gigabit Ethernet and 10/100/1000Base-T technologies, accompanied by layer 2 support, ensuring efficient and accurate data transmission across your network. With the Cisco CBS110-24T Dubai Unmanaged Ethernet Switch, expand your small business’s network capabilities seamlessly, without the necessity for extensive IT knowledge or services.

This Cisco switch is explicitly crafted to furnish your business with fundamental network connectivity, offering a hassle-free plug-and-play setup that eliminates the need for additional hardware or software. The inclusion of mounting brackets allows for secure placement in networking racks and cabinets, streamlining the integration process for your business.

Features

Built for Simplicity

You can use this device immediately out of the box without configuration. Cisco CBS110-24T Dubai unmanaged switch is designed to provide basic connection to the internet while optimizing network performance.

Stable Network

Whether you are a small business focusing on minimal network connections or repeatedly using cloud-based services, Cisco CBS110-24T Dubai switch provides you with stability suitable for online document management, streaming media, and live-chat conference calls.

Reduced Energy Cost

Cisco CBS110-24T Dubai switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard, reducing energy consumption by monitoring traffic and putting specific links to sleep during quiet periods.

Advanced Technologies

Advanced Cisco traffic-handling features keep your applications running at maximum performance, streamlining your network efficiency. Integrated QoS, loop detection, cable diagnostics, and fast store-and-forward switching all work automatically without configuration, simplifying your network.

Specifications

Specifications	Description
Performance
Switching capacity and forwarding rate All switches are wire- speed and non-blocking	Model	Capacity in millions of packets per second (mpps) (64-byte packets)		Switching capacity in gigabits per second (Gbps)
	CBS110-5T-D	7.4 mpps		10 Gbps
	CBS110-8T-D	11.9 mpps		16 Gbps
	CBS110-8PP-D	11.9 mpps		16 Gbps
	CBS110-16T	23.8 mpps		32 Gbps
	CBS110-16PP	23.8 mpps		32 Gbps
	CBS110-24T	35.7 mpps		48 Gbps
	CBS110-24PP	35.7 mpps		48 Gbps
General
Head-of-Line (HOL) blocking	HOL blocking prevention
MAC table	2K addresses for CBS110-5T-D 8K addresses for all other models
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Ports	Model name	Total system ports	RJ-45 ports	Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])
	CBS110-5T-D	5 Gigabit Ethernet	5 Gigabit Ethernet	–
	CBS110-8T-D	8 Gigabit Ethernet	8 Gigabit Ethernet	–
	CBS110-8PP-D	8 Gigabit Ethernet	8 Gigabit Ethernet	–
	CBS110-16T	16 Gigabit Ethernet	16 Gigabit Ethernet	–
	CBS110-16PP	16 Gigabit Ethernet	16 Gigabit Ethernet	–
	CBS110-24T	24 Gigabit Ethernet	24 Gigabit Ethernet	2 SFP (combo with 2 Gigabit Ethernet)
	CBS110-24PP	24 Gigabit Ethernet	24 Gigabit Ethernet	2 SFP (combo with 2 Gigabit Ethernet)
Power over Ethernet (PoE) 802.3af	Model	Power dedicated to PoE		Number of ports that support PoE
	CBS110-8PP-D	32W		4
	CBS110-16PP	64W		8
	CBS110-24PP	100W		12
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE^, Max PoE^ ^*if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP
CPU	400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory	128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP
Packet buffer	All numbers are aggregate across all ports as the buffers are dynamically shared:
	Model Name		Packet Buffer
	CBS110-5T-D		1 Mbit
	CBS110-8T-D		2 Mbit
	CBS110-8PP-D		2 Mbit
	CBS110-16T		2 Mbit
	CBS110-16PP		2 Mbit
	CBS110-24T		2 Mbit
	CBS110-24PP		2 Mbit
Supported SFP modules	SKU	Media	Speed	Maximum distance
	MGBSX1	Multimode fiber	1000 Mbps	500 m
	MGBLX1	Single-mode fiber	1000 Mbps	10 km
	MGBLH1	Single-mode fiber	1000 Mbps	40 km
	MGBT1	UTP cat 5e	1000 Mbps	100 m
Environmental
Unit dimensions (W x D x H)	Model name		Unit dimensions
	CBS110-5T-D		110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in)
	CBS110-8T-D		160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)
	CBS110-8PP-D		160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
	CBS110-16T		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-16PP		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-24T		279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
	CBS110-24PP		440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in)
Unit weight	Model name		Unit weight
	CBS110-5T-D		0.23 kg (0.52 lb)
	CBS110-8T-D		0.43 kg (0.94 lb)
	CBS110-8PP-D		0.55 kg (1.2 lb)
	CBS110-16T		0.97 kg (2.14 lb)
	CBS110-16PP		1.30 kg (2.87 lb)
	CBS110-24T		1.56 kg (3.43 lb)
	CBS110-24PP		2.98 kg (6.57 lb)
Power	100 to 240V, 50 to 60 Hz, external, universal: CBS110-5T-D, CBS110-8T-D, CBS110-8PP-D 100 to 240V, 50 to 60 Hz, internal, universal: CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
Power consumption (worst case)	Model	System power consumption	Power consumption (with PoE)	Heat dissipation (BTU/hr)
	CBS110-5T-D	110V=2.74W 220V=2.69W	N/A	9.34
	CBS110-8T-D	110V=4.09W 220V=4.13W	N/A	14.09
	CBS110-8PP-D	110V=5.1W 220V=5.29W	110V=38.02W 220V=38.2W	130.34
	CBS110-16T	110V=11.33W 220V=11.53W	N/A	39.34
	CBS110-16PP	110V=11.16W 220V=11.41W	110V=80.28W 220V=80.38W	274.27
	CBS110-24T	110V=16.3W 220V=16.34W	N/A	55.75
	CBS110-24PP	110V=17.21W 220V=17.29W	110V=135.67W 220V=133.82W	462.93
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B^* ^*select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, non-condensing
Storage humidity	5% to 90%, relative, non-condensing
Acoustic noise and Mean Time Between Failures (MTBF)	Model name	Fan (number)	Acoustic noise	MTBF at 25°C (hours)
	CBS110-5T-D	Fanless	N/A	4,243,002
	CBS110-8T-D	Fanless	N/A	2,066,844
	CBS110-8PP-D	Fanless	N/A	465,437
	CBS110-16T	Fanless	N/A	2,685,092
	CBS110-16PP	Fanless	N/A	1,971,811
	CBS110-24T	Fanless	N/A	524,296
	CBS110-24PP	Fanless	N/A	340,703
Warranty	Limited lifetime
Package contents
Cisco Business 110 Series switch Power cord or adapter Quick start guide Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet Cat5e or better Ethernet cable Network interface card for each computer
