Description

Cisco CBS350-24NGP4X Dubai

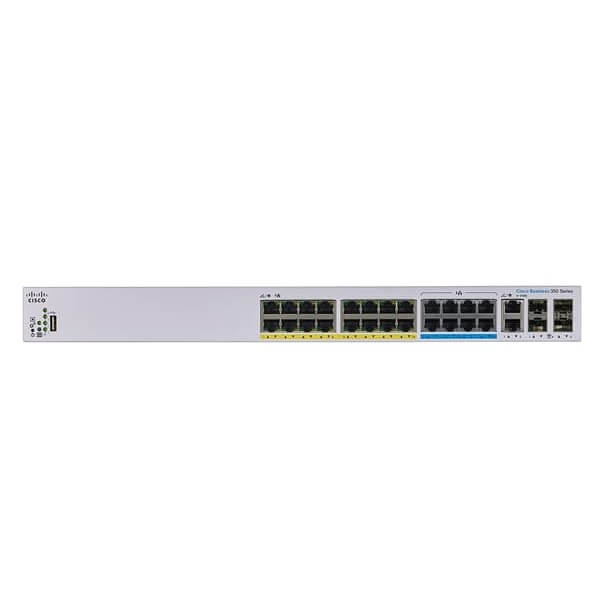

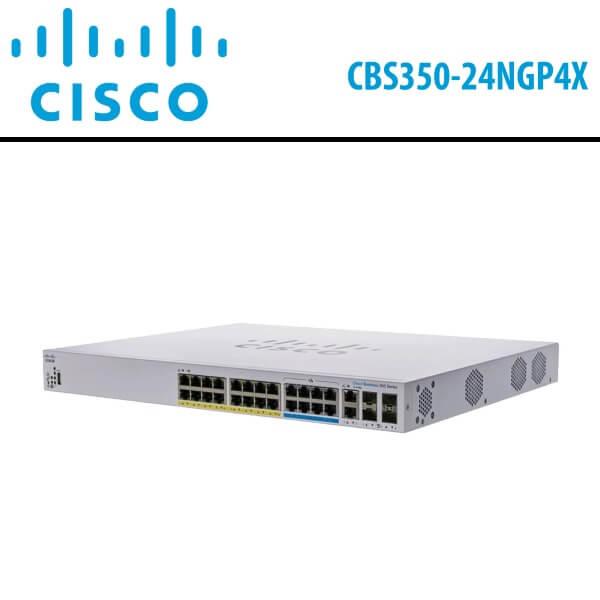

The Cisco CBS350-24NGP4X Dubai caters to high-bandwidth power over Ethernet devices, serving as a 24-Port Multi-Gig PoE++ Compliant Managed Network Switch from Cisco. This adaptable managed rackmount switch encompasses sixteen 30W PoE+ Gigabit Ethernet ports alongside eight 60W 5G ports, fostering compatibility with various wired devices such as advanced security cameras and network-attached storage systems. Additionally, it integrates two 10G SFP+ ports and two fiber SFP+/copper RJ45 combo ports, facilitating high-speed uplink connections. The Cisco CBS350-24NGP4X Dubai showcases extensive Layer 2 and Layer 3 capabilities, ensuring secure connections, clear communications, and link aggregation, allowing the creation of up to eight port groups for multi-Gig connections to compatible devices. With a robust 192 Gb/s switching capacity and a 142.85 Mpps forwarding rate, this switch guarantees seamless and reliable data transfers.

Effortlessly configure and monitor the Cisco CBS350-24NGP4X Dubai and its interconnected devices using the Cisco Business Dashboard portal and mobile app. Its three-fan design aids in maintaining optimal temperatures, ensuring the switch operates quietly and efficiently in the background.

Features

Reliable Performance

The Cisco CBS350-24NGP4X Dubai switch is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 140 Gb/s switching capacity and 104.16 Mpps forwarding rate.

Power over Ethernet

The Cisco CBS350-24NGP4X Dubai switch has a 370W power budget to operate advanced surveillance cameras, videophones, thin client devices, and more. The twenty PoE+ ports support up to 30W of power each while the four PoE++ ports support up to 60W

Extensive Security

• The Cisco CBS350-24NGP4X Dubai has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
• Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
• The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-24NGP4X Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible with previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS350-24NGP4X Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications
