Description

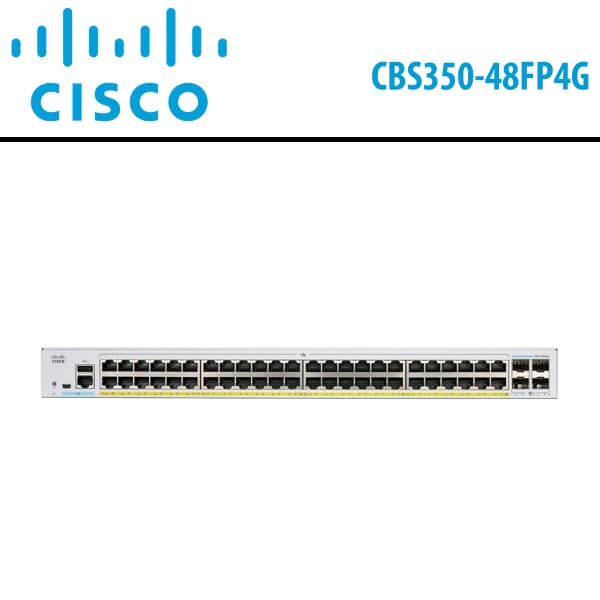

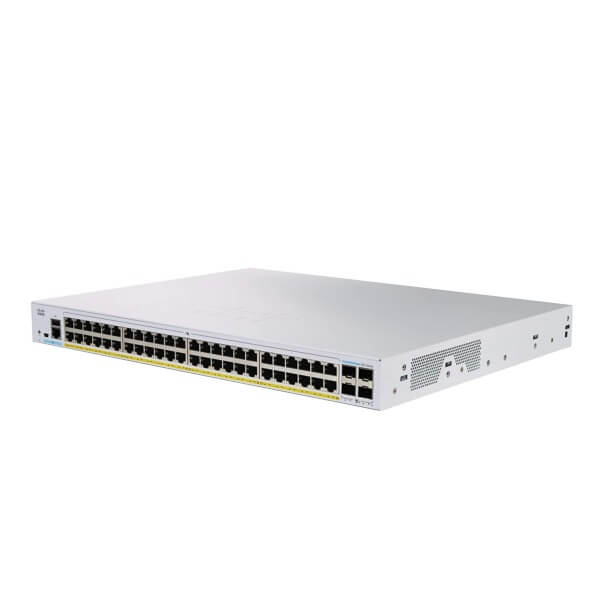

Cisco CBS350-48FP4G Dubai
The Cisco CBS350-48FP4G Dubai represents a cost-effective managed switch, serving as a crucial foundation for small office networks. Simplifying network setup with its intuitive dashboard and driving digital transformation through advanced features, this switch prioritizes pervasive security to safeguard vital business transactions. Offering an optimal blend of affordability and functionality, the Cisco CBS350-48FP4G Dubai contributes to the creation of a more efficient and interconnected workforce. Employ the Cisco Business Dashboard portal and mobile app to effortlessly configure and monitor the Cisco Business CBS350-48FP-4G and its connected devices. Additionally, its single-fan cooling design ensures minimal disruptions to your environment, operating with reduced noise levels.
The Cisco CBS350-48FP4G Dubai is a 48-Port Gigabit PoE+ Compliant Managed Network Switch by Cisco, boasting a 740W budget to power compatible devices. This managed rackmount switch boasts 48 PoE+ compliant Gigabit Ethernet ports alongside four Gigabit SFP ports, catering to high-speed fiber connections. With extensive Layer 2 and Layer 3 features ensuring secure connections and clear communications, it also enables link aggregation for multi-Gig connections to compatible devices, allowing the creation of up to eight groups of 16 ports. With a 104 Gb/s switching capacity and a 77.38 Mpps forwarding rate, this switch guarantees seamless and dependable data transfers.
Features
High Reliability and Resiliency
The Cisco CBS350-48FP4G Dubai switch supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.
IPv6 Support
As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco CBS350-48FP4G Dubai Switch can support the transition to the next generation of networking. This switch continues to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.
Advanced Layer 3 Traffic Management
The Cisco CBS350-48FP4G Dubai switch enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Energy Efficient
The Cisco CBS350-48FP4G Dubai has support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Compact Design
The sleek and compact design for the Cisco CBS350-48FP4G Dubai provides additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.
Specifications
Feature | Description |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 77.38 |
Switching Capacity in Gigabits per Second (Gbps) | 104.0 |
Total System Ports | 52 x Gigabit Ethernet |
RJ-45 Ports | 48 x Gigabit Ethernet |
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 4 x SFP |
Packet Buffer | 3 MB |
Unit dimensions (W x D x H) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
Layer 3 | |
IPv4 routing | Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
IPv6 routing | Wirespeed routing of IPv6 packets |
Layer 3 Interface | Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
Classless Interdomain Routing (CIDR) | Support for classless interdomain routing |
RIP v2 | Support for Routing Information Protocol version 2 for dynamic routing |
Policy-Based Routing (PBR) | Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
DHCP Server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options |
DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
Quality of Service | |
Priority levels | 8 hardware queues |
Scheduling | Strict priority and Weighted Round-Robin (WRR) |
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
Congestion avoidance | A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
iSCSI traffic optimization | A mechanism for giving priority to iSCSI traffic over other types of traffic |
Green (power efficiency) | |
Energy Detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
EEE Compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
Disable port LEDs | LEDs can be manually turned off to save on energy |
Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) |
Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy |
General | |
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
MAC table | 16K addresses |
Hardware | |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Environmental | |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, non-condensing |
Storage humidity | 10% to 90%, relative, non-condensing |
