Description

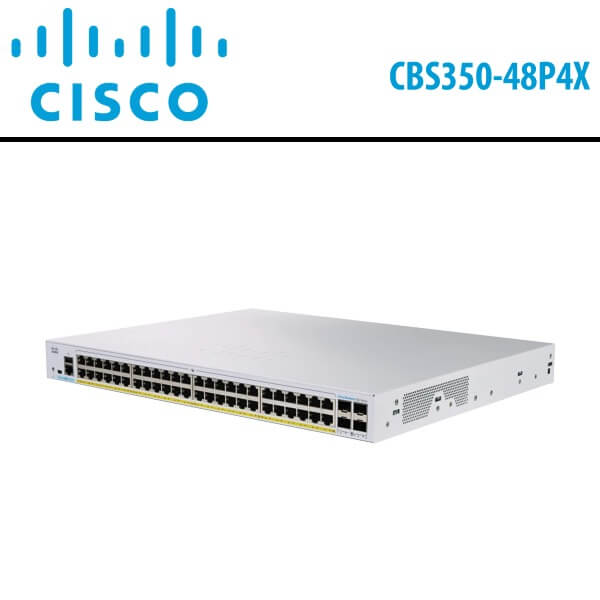

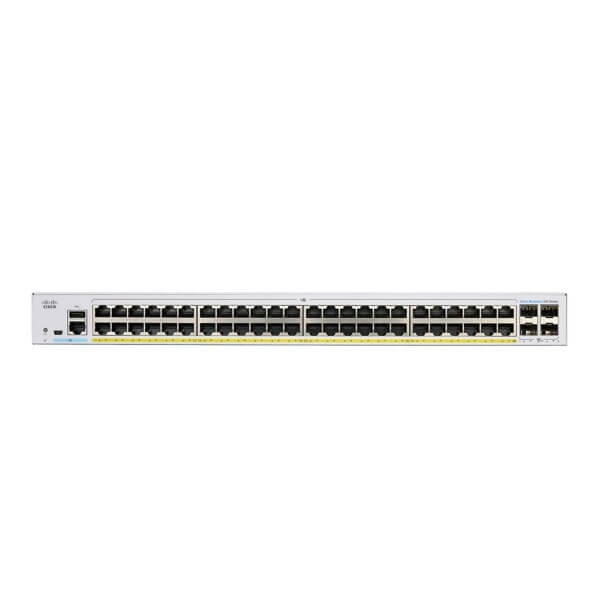

Cisco CBS350-48P4X Dubai
The Cisco CBS350-48P4X Dubai, part of the Cisco Business line of network solutions, constitutes an array of cost-effective managed switches serving as vital components for any small office network. Simplifying network setup through its intuitive dashboard, it incorporates advanced features that expedite digital transformation, while robust security measures protect critical business transactions. The Cisco CBS350-48P4X Dubai Switch amalgamates affordability with a host of capabilities, fostering a more efficient and interconnected workforce. Seamlessly and securely linking employees in small offices with each other and with essential servers, printers, and other networking devices, this switch ensures high performance and dependable connectivity, thereby expediting file transfers and data processing, enhancing network uptime, and promoting continuous employee productivity.
Functioning as a managed network solution, the Cisco CBS350-48P4X Dubai provides the necessary performance and advanced traffic-handling intelligence required to transmit all communications and data over a unified network. Additionally, Cisco offers a complete portfolio of IP telephony and other unified communications products specifically tailored for businesses. The Cisco CBS350-48P4X Dubai has undergone rigorous testing to ensure seamless integration and complete compatibility with these and other products, presenting a comprehensive business solution.
Features
Highly secure guest connectivity
The Cisco CBS350-48P4X Dubai extends highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.
IPv6 Support
As the IP address scheme evolves to accommodate a growing number of network devices, Cisco CBS350-48P4X Dubai switch can support the transition to the next generation of networking. This switch c ontinues to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.
Advanced Layer 3 Traffic Management
The Cisco CBS350-48P4X Dubai enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
Compact Design
The sleek and compact design for the Cisco CBS350-48P4X Dubai provides additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.
Specifications
Feature | Description |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 77.38 |
Switching Capacity in Gigabits per Second (Gbps) | 104.0 |
Total System Ports | 52 x Gigabit Ethernet |
RJ-45 Ports | 48 x Gigabit Ethernet |
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 4 x SFP |
Packet Buffer | 3 MB |
Unit dimensions (W x D x H) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
Layer 3 | |
IPv4 routing | Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
IPv6 routing | Wirespeed routing of IPv6 packets |
Layer 3 Interface | Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
Classless Interdomain Routing (CIDR) | Support for classless interdomain routing |
RIP v2 | Support for Routing Information Protocol version 2 for dynamic routing |
Policy-Based Routing (PBR) | Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
DHCP Server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options |
DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
Quality of Service | |
Priority levels | 8 hardware queues |
Scheduling | Strict priority and Weighted Round-Robin (WRR) |
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
Congestion avoidance | A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
iSCSI traffic optimization | A mechanism for giving priority to iSCSI traffic over other types of traffic |
Green (power efficiency) | |
Energy Detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
EEE Compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
Disable port LEDs | LEDs can be manually turned off to save on energy |
Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) |
Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy |
General | |
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
MAC table | 16K addresses |
Hardware | |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Environmental | |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, non-condensing |
Storage humidity | 10% to 90%, relative, non-condensing |
Warranty | Limited lifetime with next business day advance replacement (where available) |
Package Contents | |
Cisco Business 350 Series Managed Switch
Power Cord (Power adapter for select 8-port and 16-port SKUs) Mounting Kit Quick Start Guide |
|
Minimum Requirements | |
Web browser : Chrome, Firefox, Edge, Safari
Category 5e Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed |
