Description

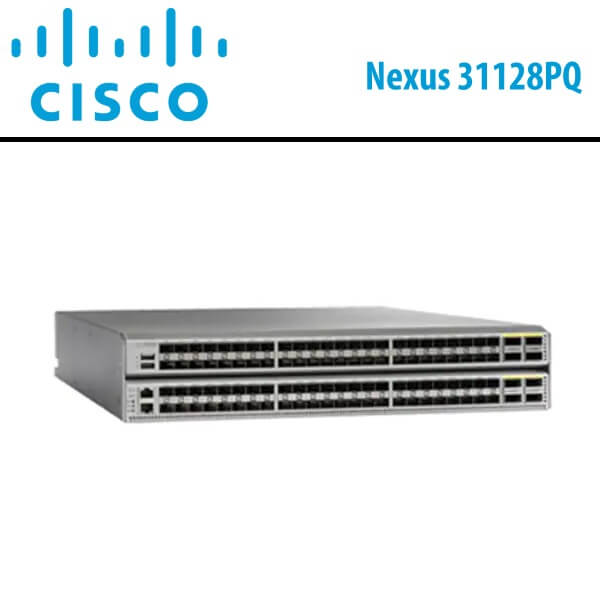

Cisco Nexus31128PQ Dubai

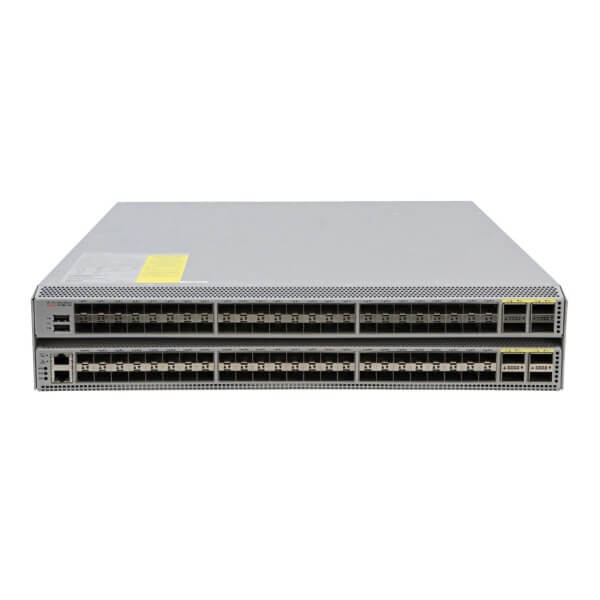

The Cisco Nexus31128PQ Dubai is packaged in a streamlined two-rack-unit (2RU) form factor, seamlessly operating on the industry-renowned Cisco NX-OS Software operating system. This integration ensures that customers have access to an extensive array of features and functions that have been widely adopted and trusted in diverse operational environments. Functioning as a robust member of the Cisco Nexus 3100 switches, the Cisco Nexus31128PQ Dubai Switch serves as a dense, high-performance Layer 2 and 3, 10- and 40-Gbps switch, delivering unparalleled performance within a compact framework.

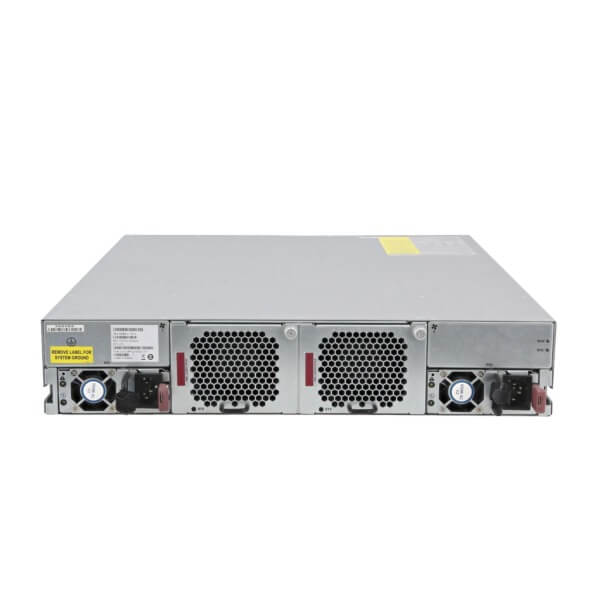

Embedded within the second-generation Cisco Nexus 3000 series, the Cisco Nexus31128PQ Dubai introduces an array of enhancements, including improved port density, scalability, and advanced features compared to its predecessors. Notably, it accommodates both forward and reverse airflow schemes, offering versatility with options for both port side exhaust and port side intake. Moreover, the switch is designed to support both AC and DC power inputs, ensuring adaptability in diverse data center environments.
The Cisco Nexus31128PQ Dubai is ideally suited for data centers seeking a cost-effective and power-efficient solution, specifically tailored to deliver line-rate Layer 2 and 3 access or leaf switch capabilities. Its robust performance and streamlined design make it a valuable asset for organizations seeking to optimize their data center infrastructure without compromising on efficiency or performance.
Features
Wire-rate Layer 2 and 3 switching on all ports
The Cisco Nexus31128PQ Dubai features Layer 2 and 3 switching of up to 2.5 Terabits per second (Tbps) and up to 1.4 Billion packets per second (bpps) is provided in a compact 2RU form-factor switch.
High availability
- Cisco Nexus31128PQ Dubai has Virtual PortChannel (vPC) technology providing Layer 2 multipathing through the elimination of Spanning Tree Protocol and enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.
- The 64-way Equal-Cost Multipath (ECMP) routing enables the use of Layer 3 fat-tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
- Hot swappable Power-Supply Units (PSUs) and fans.
High Performance
The Cisco Nexus31128PQ Dubai delivers low nominal latency, which enables customers to implement high-performance infrastructure for High-Frequency Trading (HFT) and High-Performance Computing (HPC) workloads.
Purpose-built Cisco NX-OS operating system with comprehensive, proven innovations
- PowerOn Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.
- Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.
- Advanced buffer monitoring reports real-time buffer utilization per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.
- Ethanalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.
- Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.
- Complete Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast Sparse Mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).
Cisco Nexus31128PQ Specifications
| Description | Specification | |
| Physical |
|
|
| Performance |
|
|
| Hardware tables and scalability | Number of MAC addresses | 288,000 |
| Number of VLANS | 4096 | |
| Number of spanning-tree instances | RSTP : 512
MSTP : 64 |
|
| Number of Access Control List (ACL) entries | 4000 ingress
1000 egress |
|
| Routing table | 16,000 prefixes and 16,000 host entries
8000 multicast routes |
|
| Number of EtherChannels | 64 (with vPC) | |
| Number of ports per EtherChannel | 16 | |
| Buffer size | 12 MB shared | |
| Boot flash memory | 64 GB SSD | |
| Power | Frequency | 50 to 60 Hz |
| Power supply types | AC (forward and reversed airflow)
DC (forward and reversed airflow) |
|
| Typical operating power | 148 watts (W) | |
| Maximum power | 413 watts (W) | |
| AC PSUs
Input voltage Frequency Efficiency |
100 to 240 VAC 50 to 60 Hz 89 to 91% at 220V |
|
| DC PSUs
Input voltage Maximum current (PSU output – System input) Efficiency |
-40 to -72 VDC 78A 85 to 88% |
|
| Power-supply efficiency | 89 to 91% at 220V | |
| Typical heat dissipation | 505 BTU/hr | |
| Maximum heat dissipation | 1409 BTU/hr | |
| Cooling |
|
|
| Sound | Measured sound power (maximum)
Fan speed : 40% duty cycle Fan speed : 70% duty cycle Fan speed : 100% duty cycle |
66.1 dBA 70.6 dBA 76.9 dBA |
| Environment | Dimensions (height x width x depth) | 3.39 x 17.40 x 23.70 in. (8.6 x 44.2 x 60.2 cm) |
| Weight | 22.2 lb (10.1 kg) | |
| Operating temperature | 32 to 122°F (0 to 50°C) | |
| Storage temperature | -40 to 158°F (-40 to 70°C) | |
| Operating relative humidity | 10 to 85% non-condensing
Up to 5 days at maximum (85%) humidity Recommend ASHRAE data center environment |
|
| Storage relative humidity | 5 to 95% non-condensing | |
| Altitude | 0 to 10,000 ft (0 to 3000m) | |
Software features
| Description | Specification |
| Layer 2 |
|
| Layer 3 |
|
| Multicast |
|
| Quality of service (QoS) |
|
| Security |
|
| Management |
|
