Description

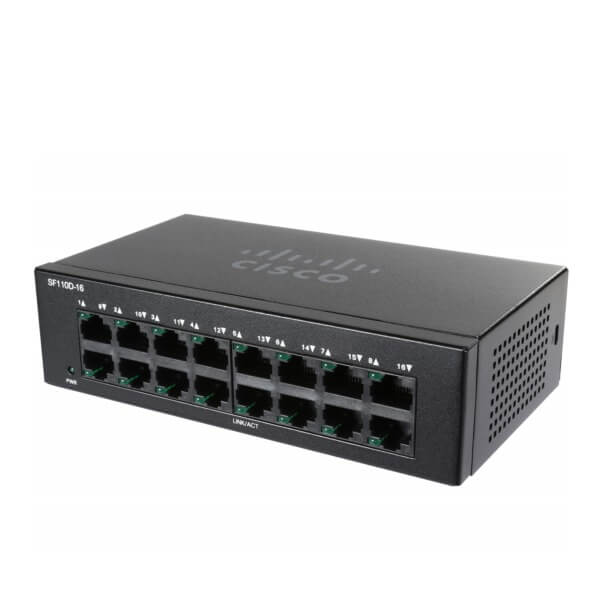

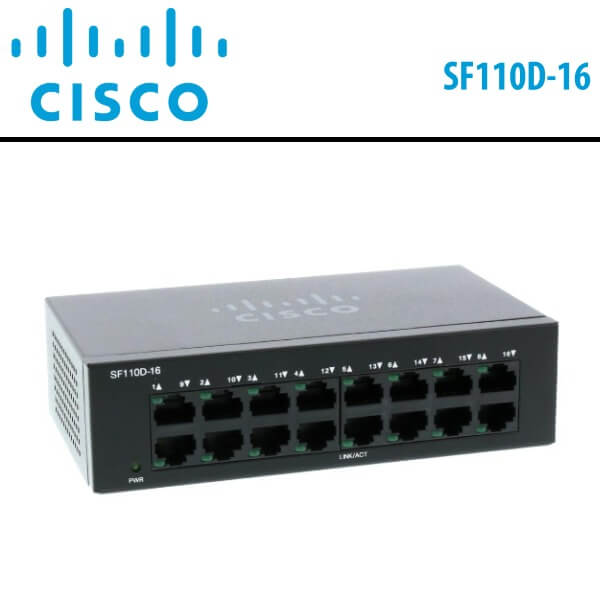

Cisco SF110D-16 Dubai
The Cisco SF110D-16 Dubai switches are ready to use straight out of the box, requiring no software installation or manual configuration. Each switch port independently configures itself for optimal speed and automatically determines whether to operate in half- or full-duplex mode. Aligned with Cisco standards, these switches are designed to seamlessly integrate with all devices in your network, supporting various speeds such as 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps). They also feature automatic cable detection, eliminating concerns about using the wrong cable type, and ensure compatibility with network devices from different vendors.
Features
- Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
- 5- to 24-port models that are desktop or rack mountable
- Power over Ethernet models to provide power to IP phones, access points, and other devices
- Works right out of the box: plug and play and no setup
Simple Setup
Designed for small office spaces, Cisco SF110D-16 Dubai switches are available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.
High Performance
Cisco SF110D-16 Dubai switches deliver the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced Energy Costs
Cisco SF110D-16 Dubai switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.
Technical Specs
| Specifications | Description |
| Cabling type | Category 5e or better |
| LED indicators | System/PWR, link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present |
| Physical Interfaces | |
| Ports | 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord |
| Power supply | DC 12V, 1.0A |
| Weight | 1.03 lb. (0.46 kg) |
| Ports | 16 RJ-45 connectors for 10BASE-T/100BASE-TX |
| Performance | |
| Switching capacity | 3.2 Gbps |
| Forwarding capacity | 1.4 mpps |
| Capabilities | |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Jumbo frame | 9216 bytes |
| Quality of service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Mounting and Physical Security | |
| Mounting options | Desktop or rack mount |
| Physical security lock | Kensington lock slot |
| Environmental | |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 158°F (-20° to 70°C) |
| Operating humidity | 10% to 90%, relative, non-condensing |
| System memory | 128-MB RAM
128-MB Flash |
| Package Contents | Cisco 110 Series switch,
Power cord/power adapter, Quick-start guide, Mounting hardware |
