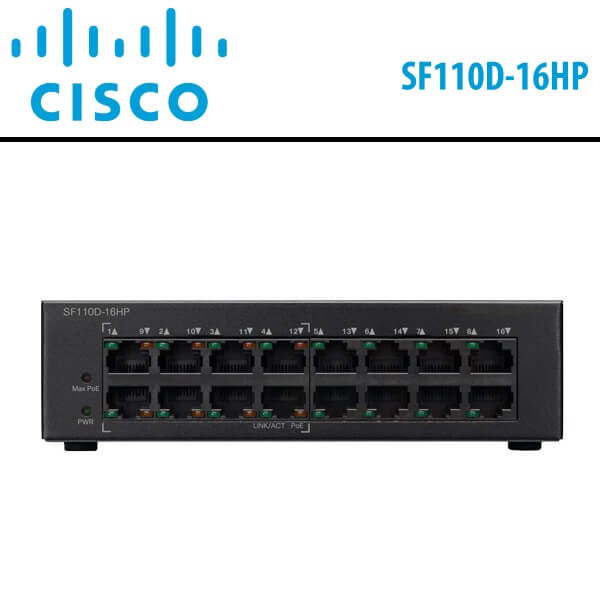

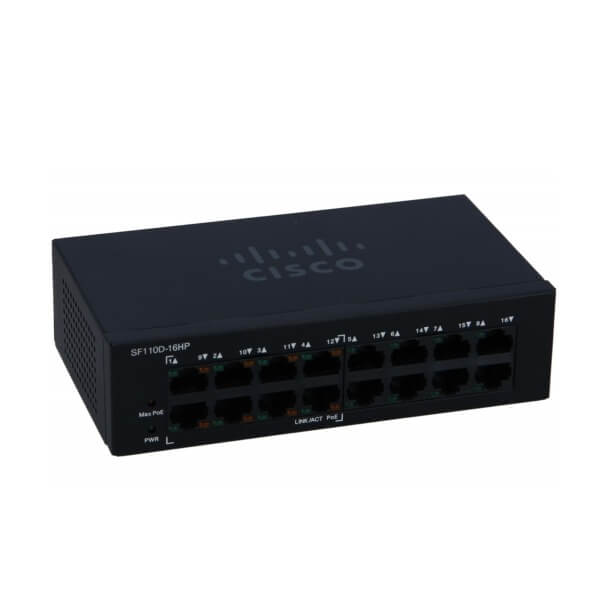

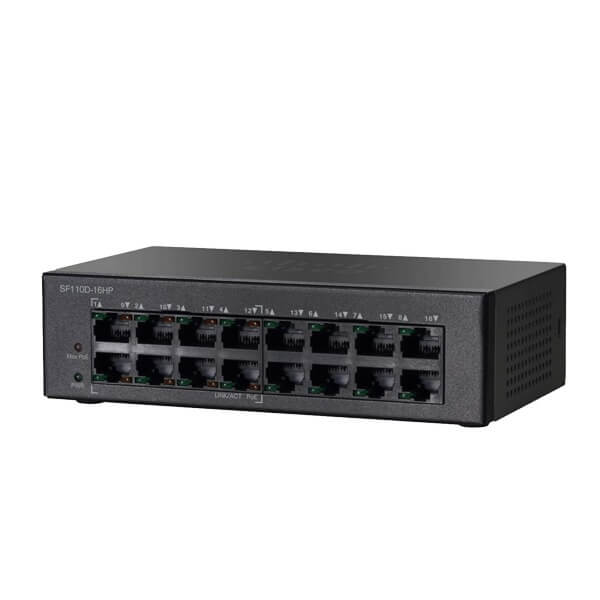

Cisco SF110D-16HP Dubai

Cisco SF110D-16HP Dubai

The Cisco SF110D-16HP Dubai serves as a cost-effective, business-class network solution that significantly enhances the speed and performance of your office network, ensuring an effortless setup process at an affordable price point.

Category:

Description

Cisco SF110D-16HP Dubai

The Cisco SF110D-16HP Dubai serves as a cost-effective, business-class network solution that significantly enhances the speed and performance of your office network, ensuring an effortless setup process at an affordable price point. Seamlessly construct a highly dependable network connecting computers, printers, copiers, and other essential office equipment, even without the presence of an in-house IT staff. With the Cisco SF110D-16HP Dubai Unmanaged Switch, you can immediately establish a high-performance, business-class office network that operates flawlessly right out of the box, catering to the diverse requirements of users, workgroups, labs, departments, and expanding offices, facilitating rapid transmission of substantial multimedia, image, and video data across the network.

This switch is equipped with all the anticipated features, expandability, and investment protection characteristic of Cisco, eliminating the need for installation software or complex configurations. Simply plug it in, connect your computers and other business equipment, and initiate your operations promptly.

As part of the Cisco Small Business networking solutions, the Cisco SF110D-16HP Dubai belongs to a line of unmanaged switches providing wire-speed Fast Ethernet and Gigabit Ethernet connectivity to interconnect your small business office. Available in both desktop and rack-mount models, these switches are designed to accommodate the basic network requirements of any office space, emphasizing power efficiency. The Cisco SF110D-16HP Dubai minimizes power consumption while delivering the robust and reliable connectivity crucial for your business, while also supporting advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all within a switch that can be effortlessly set up within minutes. By incorporating the proven reliability and investment protection inherent in Cisco networking solutions, the Cisco SF110D-16HP Dubai Unmanaged Switch ensures basic network connectivity and reliability for small businesses, with a user-friendly approach and a budget-friendly setup.

Features

Simple

Cisco SF110D-16HP Dubai switch works right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco SF110D-16HP Dubai is designed to immediately accommodate all of the devices in your network, including:

  • Support for 10 Megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network
  • Automatic cable detection, so you do not have to worry about using the wrong cable type
  • Compatibility with network devices from other vendors

Easy to Setup

Designed for small office spaces, Cisco SF110 series Dubai is available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.

Reliability

Cisco SF110D-16HP Dubai Switch delivers the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. Cisco SF110D-16HP Dubai supports Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

Reduced energy costs

Cisco SF110D-16HP Dubai is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.

Power over Ethernet (PoE)

Cisco SF110D-16HP Dubai comes with PoE ports on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.

Support for advanced technologies

All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

Peace of mind

Cisco 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

Specifications

Specifications Description
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Cabling type Category 5e or better
LED indicators System/PWR, link/activity, 100M,*PoE, *Max PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*

*if present

Physical Interfaces
Ports 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
Power supply SF110D-05, SF110D-08 : DC 12V, 500mA

SF110D-16, SG110D-08, SG110D-05 : DC 12V, 1.0A

SF110D-08HP, SG110D-8HP : DC 48V. 1.25A

SF110-16, SF110D-16HP, SF110-24, SF112-24, SG110-16, SG110-16HP, SG110-24, SG110-24HP, SG112-24 : 110-240VAC, 50-60 Hz, internal, universal

Lock slot Slot for Kensington lock
Physical Specifications
Physical dimensions (W x D x H) SF110D-05 : 4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm)

SF110D-08 : 6.30 x 3.54 x 1.18 inches (160 x 90 x 30 mm)

SF110D-08HP : 6.30 x 5.06 x 1.18 inches (160 x 129 x 30 mm)

SF110D-16 : 6.30 x 3.54 x 1.73 inches (160 x 90 x 44 mm)

SF110-16 : 11 x 6.69 x 1.73 inches (279 x 170 x 44 mm)

SF110D-16HP : 6.30 x 3.54 x 1.73 inches (160 x 90 x 44 mm)

SF110-24 : 11 x 6.69 x 1.73 inches (279 x 170 x 44 mm)

SF112-24 : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm)

SG110D-05 : 4.33 x 2.95 x 1.18 inches (110 x 75 x 30 mm)

SG110D-08 : 6.30 x 4.07 x 1.18 inches (160 x 104 x 30 mm)

SG110D-08HP : 6.30 x 5.06 x 1.18 inches (160 x 129 x 30 mm)

SG110-16 : 11 x 6.7 x 1.73 inches (279 x 170 x 44 mm)

SG110-16HP : 11 x 6.7 x 1.73 inches (279 x 170 x 44 mm)

SG110-24 : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm)

SG110-24HP : 17.32 x 7.97 x 1.73 inches (440 x 203 x 44 mm)

SG112-24 : 11 x 6.7 x 1.73 inches (279.4 x 170 x 44 mm)

Weight SF110D-05 : 1.01 lb. (0.46 kg)

SF110D-08 : 1.39 lb. (0.63 kg)

SF110D-08HP : 1.08 lb. (0.49 kg)

SF110D-16 : 0.99 lb. (0.45 kg)

SF110-16 : 2.54 lb. (1.15 kg)

SF110D-16HP : 3.00 lb. (1.36 kg)

SF110-24 : 2.14 lb. (0.97 kg)

SF112-24 : 4.25 lb. (1.93 kg)

SG110D-05 : 0.51 lb. (0.23 kg)

SG110D-08 : 0.95 lb. (0.43 kg)

SG110D-08HP : 1.12 lb. (0.51 kg)

SG110-16 : 2.14 lb. (0.97 kg)

SG110-16HP : 2.87 lb. (1.30 kg)

SG110-24 : 5.80 lb. (2.63 kg)

SG110-24HP : 6.57 lb. (2.98 kg)

SG112-24 : 3.42 lb. (1.55 kg)

Ports SF110D-05 : 5 RJ-45 connectors for 10BASE-T/100BASE-TX

SF110D-08 : 8 RJ-45 connectors for 10BASE-T/100BASE-TX

SF110D-08HP : 8 RJ-45 connectors for 10BASE-T/100BASE-TX;

SF110D-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX

SF110D-16HP : 16 RJ-45 connectors for 10BASE-T/100BASE-TX

SF110-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX

SF110-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX

SF112-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots

SG110D-08 : 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG110D-08HP : 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG110-16 : 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG110-16HP : 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG110-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

SG110-24HP : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

SG112-24 : 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

All units : automatic Medium Dependent Interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Power over Ethernet (PoE) Model Name

SF110D-08HP

SF110D-16HP

SG110D-08HP

SG110-16HP

SG110-24HP

Power Dedicated to PoE

32 watts

64 watts

32 watts

64 watts

100 watts

Number of PoE Ports

4

8

4

8

12

Fan/fanless models All models have no fans and are fanless, except for SG100-24HP
Performance
Switching capacity SF110D-05 : 1 Gbps

SF110D-08 : 1.6 Gbps

SF110D-08HP : 1.6 Gbps

SF110D-16 : 3.2 Gbps

SF110-16 : 3.2 Gbps

SF110D-16HP : 3.2 Gbps

SF110-24 : 4.8 Gbps

SF112-24 : 8.8 Gbps

SG110D-05 : 10 Gbps

SG110D-08 : 16 Gbps

SG110D-08HP : 16 Gbps

SG110-16 : 32 Gbps

SG110-16HP : 32 Gbps

SG110-24 : 48 Gbps

SG110-24HP : 48 Gbps

SG112-24 : 48 Gbps

Forwarding capacity Forwarding rate in million packets per second (mpps) (based on 64-byte packets) :

SF110D-05 : 0.74 mpps

SF110D-08 : 1.4. mpps

S110D-08HP : 1.2 mpps

SF110D-16 : 1.4 mpps

SF110-16 : 1.4 mpps

SF110D-16HP : 1.4 mpps

SF110-24 : 3.6 mpps

SF112-24 : 6.5 mpps

SG110D-05 : 7.4 mpps

SG110D-08 : 11.9 mpps

SG110D-08HP : 11.9 mpps

SG110-16 : 23.8 mpps

SG110-16HP : 23.8 mpps

SG110-24 : 35.7 mpps

SG110-24HP : 35.7 mpps

SG112-24 : 35.7 mpps

Capabilities
Head-of-line (HOL) blocking HOL blocking prevention
Jumbo frame 9216 bytes
Quality of service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Mounting and Physical Security
Mounting options Desktop or rack mount
Physical security lock Kensington lock slot
Environmental
Compliance/
certifications
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*

*select models

Operating temperature  32° to 104°F (0° to 40°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 5% to 90%, relative, noncondensing
Package Contents
Cisco 110 Series switch

Power cord/power adapter

Quick-start guide

Mounting hardware

Minimum Requirements
Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet

Cat5 or better Ethernet cable

Network interface card for each computer
