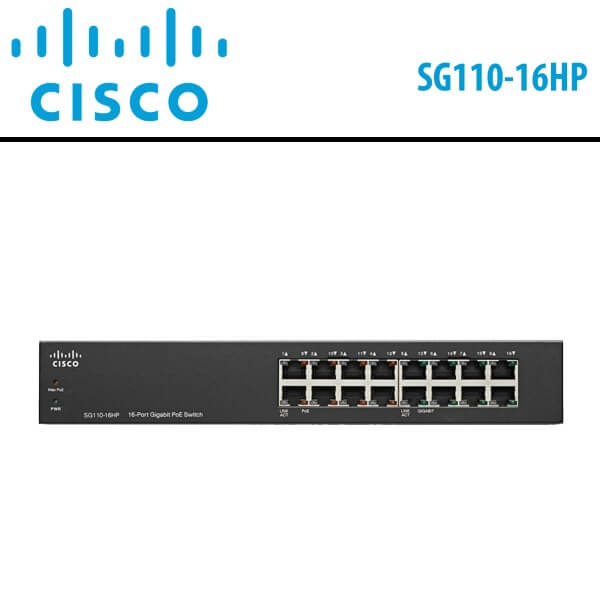

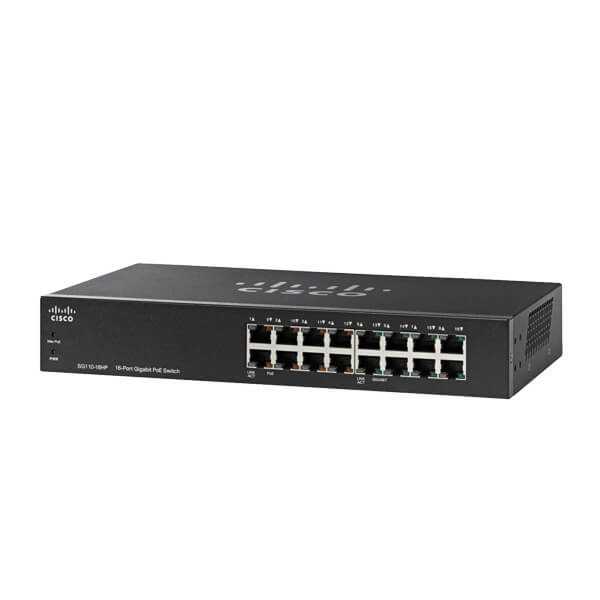

The Cisco SG110-16HP Dubai Switch forms an integral component of the Cisco Small Business networking solutions, belonging to a line of unmanaged switches that provide both wire-speed Fast Ethernet and Gigabit Ethernet connectivity.

Category:

Description

Cisco SG110-16HP Dubai

The Cisco SG110-16HP Dubai Switch forms an integral component of the Cisco Small Business networking solutions, belonging to a line of unmanaged switches that provide both wire-speed Fast Ethernet and Gigabit Ethernet connectivity, ensuring seamless integration within your small business office. Tailored to accommodate various office environments, the Cisco 110 series is available in desktop and rack-mount models, emphasizing adaptability to diverse office spaces with basic network requirements while prioritizing optimal power efficiency. Additionally, the Cisco SG110-16HP Dubai Switch is engineered to consume minimal power while delivering robust and dependable connectivity that meets the demands of your business. It also offers support for advanced features such as quality of service (QoS), loop detection, and cable diagnostics, all within a switch that can be easily set up within minutes.

The Cisco SG110-16HP Dubai Switch provides an affordable and user-friendly solution for small business networks, requiring zero configuration. This switch empowers organizations to construct a highly reliable network, seamlessly connecting computers, printers, copiers, and other office equipment. Especially beneficial for small companies operating without an in-house IT staff, the Cisco SG110-16HP Dubai facilitates the creation of a high-performance, business-class office network that operates seamlessly right out of the box. Whether it’s for users, workgroups, labs, departments, or expanding offices, this switch enables the swift transfer of substantial amounts of multimedia, images, and video data across the network in nearly no time. The Cisco SG110-16HP Dubai Unmanaged Switch ensures straightforward and budget-friendly basic network connectivity and reliability for small businesses, incorporating all the essential features, expandability, and investment protection you anticipate from Cisco, without the need for any installation software or intricate configurations. Simply plug in the switch, connect your computers and other business equipment, and you’re ready to dive into your work.

Features

Simple Design

Cisco SG110-16HP Dubai is a plug and play switch with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco SG110-16HP Dubai is also designed to immediately accommodate all of the devices in your network, including:

  • Support for 10 megabits per second (Mbps), 100 Mbps, and up to 1 gigabit per second (1000 Mbps) devices in the same network
  • Automatic cable detection, so you do not have to worry about using the wrong cable type
  • Compatibility with network devices from other vendors

Simple Setup

Designed for small office spaces, Cisco 110 Series switches are available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room.

High Performance

Cisco SG110-16HP Dubai Switch delivers the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

Saves Energy

Cisco SG110-16HP Dubai is designed to conserve energy by optimizing power use without compromising performance, saving on energy costs. In addition, this switch supports Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. In addition, Cisco SG110-16HP Dubai has no fans, so they run silently and unobtrusively while lowering energy costs.

Power over Ethernet (PoE)

Cisco 110 Series switches are available with PoE ports on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.

Support for Advanced Technologies

Cisco SG110-16HP Dubai includes advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on Cisco SG110-16HP Dubai automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

Peace of Mind

Cisco 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

Specifications

Performance
Switching capacity and forwarding rate Product Name Switching Capacity Forwarding Capacity
SF110D-05 1 Gbps 0.74 mpps
SF110D-08 1.6 Gbps 1.4 mpps
SF110D-08HP 1.6 Gbps 1.2 mpps
SF110D-16 3.2 Gbps 1.4 mpps
SF110-16 3.2 Gbps 1.4 mpps
SF110D-16HP 3.2 Gbps 1.4 mpps
SF110-24 4.8 Gbps 3.6 mpps
SF112-24 8.8 Gbps 6.5 mpps
SG110D-05 10 Gbps 7.4 mpps
SG110D-08 16 Gbps 11.9 mpps
SG110D-08HP 16 Gbps 11.9 mpps
SG110-16 32 Gbps 23.8 mpps
SG110-16HP 32 Gbps 23.8 mpps
SG110-24 48 Gbps 35.7 mpps
SG110-24HP 48 Gbps 35.7 mpps
SG112-24 48 Gbps 35.7 mpps
Capabilities
Head-of-line (HOL) blocking HOL blocking prevention
Jumbo frame 9216 bytes
Quality of service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Cabling type Category 5e or better
LED indicators System/PWR, link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC*

*if present

Physical Interfaces
Ports 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
Power supply SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Lock slot Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
Physical Specifications
Physical Dimensions Model Name Unit Dimensions (W x H x D)
SF110D-05 3.65 x 1.06 x 3.57 inches (92.6 x 27 x 90.6 mm)
SF110D-08 5.12 x 1.06 x 5.12 inches (130 x 27 x 130 mm
SF110D-08HP 6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm)
SF110D-16 5.12 x 1.52 x 5.12 inches (130 x 38.5 x 130 mm)
SF110-16 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
SF110D-16HP 6.29 x 3.54 x 1.69 inches (160 x 90 x 43 mm)
SF110-24 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
SF112-24 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
SG110D-05 4.33 x 1.18 x 3.93 inches (110 x 30 x 110 mm)
SG110D-08 5.51 x 1.31 x 5.51 inches (140 x 33.35 x 140 mm)
SG110D-08HP 6.29 x 1.18 x 5.05 inches (160 x 30 x 128.5 mm)
SG110-16 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
SG110-16HP 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
SG110-24 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
SG110-24HP 17.35 x 1.74 x 7.99 inches (440.6 x 202.82 x 44.32 mm)
SG112-24 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm)
Weight Model Name Unit weight
SF110D-05 0.47 lb. (0.22 kg)
SF110D-08 0.83 lb. (0.38 kg)
SF110D-08HP 1.2 lb. (0.545 kg)
SF110D-16 1.03 lb. (0.46 kg)
SF110-16 2.79 lb. (1.25 kg)
SF110D-16HP 0.99 lb. (0.45 kg)
SF110-24 2.91 lb. (1.32 kg)
SF112-24 4.93 lb. (2.00 kg)
SG110D-05 0.70 lb. (0.32 kg)
SG110D-08 0.94 lb. (0.43 kg)
SG110D-08HP 1.2 lb. (0.55 kg)
SG110-16 3.15 lb. (2.13 kg)
SG110-16HP 4.15 lb. (1.43 kg)
SG110-24 3.59 lb. (1.63 kg)
SG110-24HP 4.59 lb. (2.43 kg)
SG112-24 5.05 lb. (2.3 kg)
Ports
Ports Model Name
SF110D-05 5 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110D-08 8 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110D-08HP 8 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110D-16 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110-16 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110D-16HP 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF110-24 24 RJ-45 connectors for 10BASE-T/100BASE-TX
SF112-24 24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots
SG110D-05 5 RJ-45 connectors for 10BASE-T/100BASE-TX
SG110D-08 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG110D-08HP 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG110-16 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG110-16HP 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG110-24 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
SG110-24HP 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
SG112-24 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
Power over Ethernet (PoE) Model Name Power Dedicated to PoE Number of PoE Ports
SF110D-08HP 32 Watts 4
SF110D-16HP 64 Watts 8
SG110D-08HP 32 Watts 4
SG110-16HP 64 Watts 8
SG110-24HP 100 Watts 12
Fan/fanless models All models have no fans and are fanless, except for SG100-24HP
Mounting options Desktop or rack mount
Physical security lock Kensington lock slot
System memory 128-MB RAM

128-MB Flash

Package Contents Cisco 110 Series switch

Power cord/power adapter

Quick Start Guide

Mounting hardware

Minimum Requirements Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet

Category 5 or better Ethernet network cable

Network interface card for each computer

Warranty Limited lifetime
Environmental
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*

*select models

Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 5% to 90%, relative, non-condensing
