Description

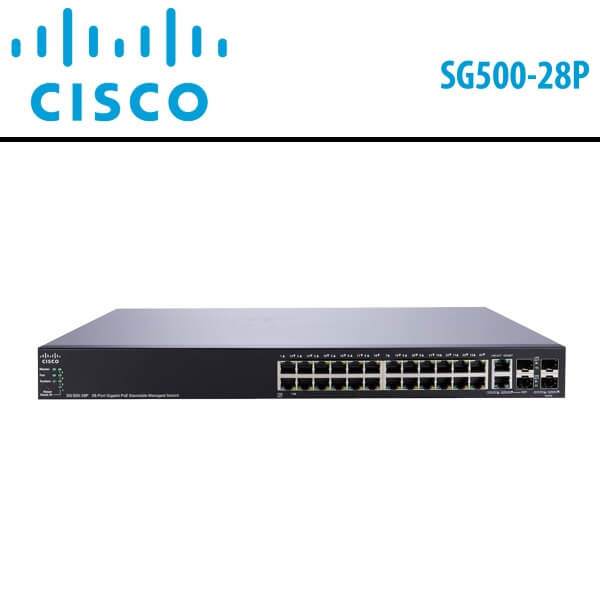

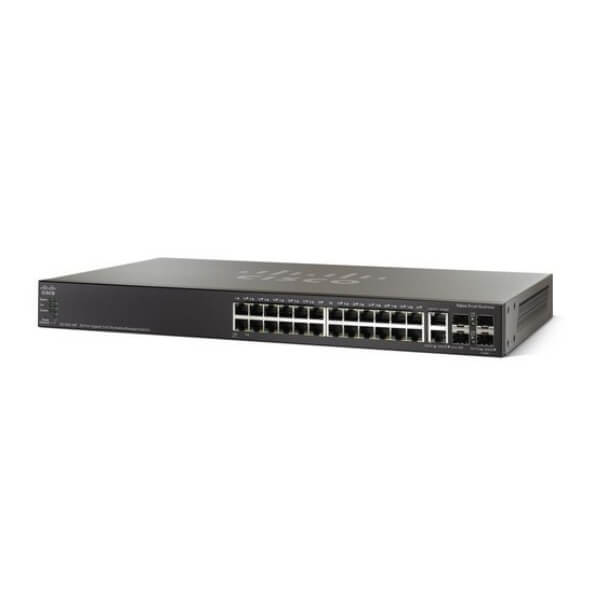

Cisco SG500-28P Dubai
The Cisco SG500-28P Dubai switches offer a combination of 28 Fast Ethernet ports and 28 Gigabit Ethernet ports, along with optional 10 Gigabit uplinks. This configuration establishes a reliable foundation for your current business applications and those envisioned for the future. Despite their advanced features, these switches are designed for easy deployment and management, eliminating the need for an extensive IT staff.
The Cisco SG500-28P Dubai switches are crafted to safeguard your technology investment as your business expands. Setting them apart from switches that claim stackability but manage elements separately, the Cisco 500 Series boasts true stacking capability. This enables you to configure, manage, and troubleshoot multiple physical switches as a cohesive unit, simplifying network expansion. Additionally, the Cisco SG500-28P Dubai Series includes fanless models, marking a pioneering move in stackable switches within the industry. This feature enhances reliability, power efficiency, and reduces noise, making it a noteworthy choice in the realm of stackable switches.
Features:
Simple-to-use graphical interfaces
Simple-to-use graphical interfaces of the Cisco SG500-28P Dubai reduce the time required to deploy.
Software upgrades
Software upgrades without network downtime.
True stacking
True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity using the Cisco SG500-28P Dubai
Advanced security
Advanced security features you need to protect your business data and keep unauthorized users off the network.
Limited lifetime warranty
Peace of mind: all switches come with a limited lifetime warranty and include one year of technical support and free software fixes for the term of the warranty.
Technical Specs
| Product code | SG500-28P |
| Device Type | Switch – 28 ports – managed – stackable |
| Enclosure Type | Rack-mountable |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x SFP |
| Power Over Ethernet (PoE) | Yes |
| Routing Protocol | Static IP routing |
| Features | Stacking, Flow control, layer 2 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support,
Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, LACP support, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port transmission speed, system, PoE, link/activity |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 4 x SFP (mini-GBIC) |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.8 lbs |
| Cables Included | 1 x serial cable |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty – replacement – lifetime – response time: next business day,
Technical support – phone consulting – 1 year, Technical support – web support – 1 year |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 – 90% (non-condensing) |
