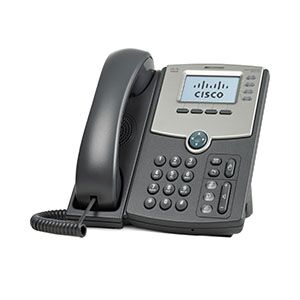

Cisco SPA514G Specification

Data networking:

• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol v4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706), SRV record (RFC 2782)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• ICMP – Internet Control Message Protocol (RFC 792)
• TCP – Transmission Control Protocol (RFC793)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ – Differentiated Services (RFC 2475)
• ToS – Type of Service(RFC 791, 1349)
• VLAN tagging 802.1p/Q – Layer 2 quality of service (QoS)
• SNTP – Simple Network Time Protocol (RFC 2030)

Voice gateway:

• SIP v2 – Session Initiation Protocol version 2 (RFC 3261, 3262, 3263, 3264)
• SPCP – Smart Phone Control Protocol with UC500
• SIP proxy redundancy – dynamic via DNS SRV, A records
• Reregistration with primary SIP proxy server
• SIP support in NAT networks (including STUN)
• SIPFrag (RFC 3420)
• Secure (encrypted) calling via SRTP
• Codec name assignment
• Voice algorithms:
• G.711 (A-law and μ-law)
• G.726 (16/24/32/40 kbps)
• G.729 A
• G.722
• Dynamic payload support
• Adjustable audio frames per packet
• DTMF – Dual-tone multifrequency, in-band and out-of-band (RFC 2833) (SIP INFO)
• Flexible dial plan support with interdigit timers
• IP address/URI dialing support
• Call progress tone generation
• Jitter buffer: adaptive
• Frame loss concealment
• VAD – Voice activity detection with silence suppression
• Attenuation/gain adjustments
• MWI – Message waiting indicator tones
• VMWI – Voicemail waiting indicator, via NOTIFY, SUBSCRIBE
• Caller ID support (name and number)
• Third-party call control (RFC 3725)

Provisioning, administration,and maintenance :

• Integrated web server provides web-based administration and configuration
• Telephone keypad configuration via display menu/navigation
• Automated provisioning and upgrade via HTTPS, HTTP, TFTP
• TR-69, TR-104, and TR-111 Provisioning
• Asynchronous notification of upgrade availability via NOTIFY
• Nonintrusive in-service upgrades
• Report generation and event logging
• Statistics transmitted in BYE message
• Debug and syslog server records: configurable per line

Power supply :

• Power supply is optional and is purchased separately
• Models: PA100-NA, PA100-EU, PA100-UK, PA100-AU
• Switching type (100-240V) automatic
• DC input voltage: +5 VDC at 2.0A maximum
• Power adapter: 100-240V50-60 Hz (26-34 VA) AC input

Indicator lights/LED :

• Speakerphone on/off button with LED
• Headset on/off button with LED
• Mute button with LED
• Message waiting indicator LED
• Voicemail message retrieval button
• Hold button
• LED test function

Cisco SPA514G Features

• One voice line with two call appearances
• Backlit pixel-based display: 128 x 64 monochrome graphical liquid crystal display (LCD)
• Line status: active line indication, name and number
• Menu-driven user interface
• Shared line appearance
• Speakerphone
• Call hold
• Music on hold
• Call waiting
• Caller ID name and number
• Outbound caller ID blocking
• Call transfer: attended and blind
• Three-way call conferencing with local mixing
• Multiparty conferencing via external conference bridge
• Automatic redial of last calling and last called numbers
• On-hook dialing
• Call pickup: selective and group
• Call park and unpark
• Call swap
• Call back on busy
• Call blocking: anonymous and selective
• Call forwarding: unconditional, no answer, on busy
• Hot line and warm line automatic calling
• Call logs (100 entries each): made, answered, and missed calls
• Redial from call logs
• Personal directory with auto-dial (150 entries)
• Do not disturb (callers hear line busy tone)
• Digits dialed with number auto-completion
• Anonymous caller blocking
• Uniform Resource Identifier (URI) (IP) dialing support (vanity numbers)
• On-hook default audio configuration (speakerphone and headset)
• Multiple ring tones with selectable ring tone per line
• Called number with directory name matching
• Ability to call number using name: directory matching or via caller ID
• Subsequent incoming calls show calling name and number
• Date and time with support for intelligent daylight savings
• Call duration and start time stored in call logs
• Call timer
• Name and identity (text) displayed at startup
• Distinctive ringing based on calling and called number
• 12 user-customizable ring tones
• Speed dialing, eight entries
• Configurable dial/numbering plan support
• Intercom
• Group paging
• NAT Traversal, including STUN support
• DNS SRV and multiple A records for proxy lookup and proxy redundancy
• Advanced Port Mirroring between PC Port and SW Port
• Debug, syslog, report generation, and event logging
• Secure call encrypted voice communication support
• Built-in web server for administration and configuration with multiple security levels
• Automated remote and secure provisioning via TFTP, HTTP or HTTPS
• Option to require administrator password to reset unit to factory defaults
