Cisco WAP125 Dubai

Cisco WAP125 Dubai

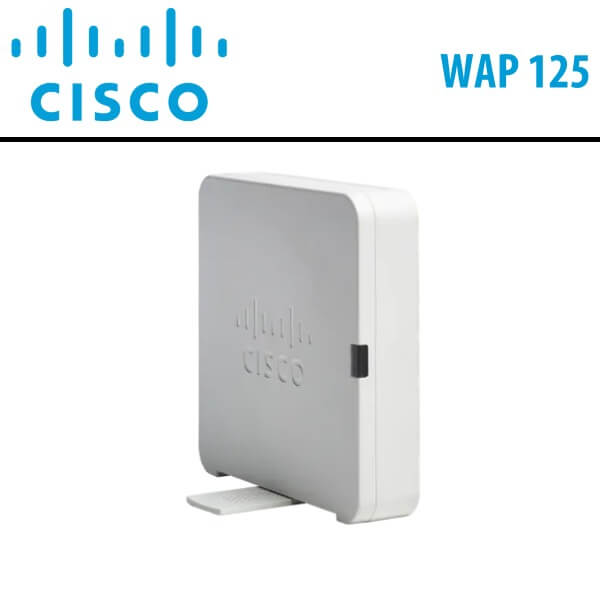

The Cisco WAP125 Dubai serves as an introductory access point designed to meet the connectivity requirements of small businesses, home offices, and compact office setups, delivering swift, straightforward, and secure Wi-Fi connectivity.

Category:

Description

Cisco WAP125 Dubai

The Cisco WAP125 Dubai serves as an introductory access point designed to meet the connectivity requirements of small businesses, home offices, and compact office setups, delivering swift, straightforward, and secure Wi-Fi connectivity solutions at a budget-friendly price point. Equipped with Power over Ethernet (PoE), this robust Wireless-AC Dual Band Desktop Access Point, known as the Cisco Wi-Fi Dubai, provides an uncomplicated and cost-effective means to extend secure, high-performance mobile networking to both employees and guests, ensuring seamless connectivity throughout the office environment. The Cisco WAP125 Dubai can accommodate numerous employees and can readily scale to meet the demands of additional users and evolving business needs.

Employing concurrent dual-band radios, the Cisco WAP125 Dubai enhances coverage for mobile devices. The presence of a Gigabit Ethernet LAN interface with PoE allows for adaptable installations, thereby reducing costs associated with cabling and wiring. Intelligent Quality-of-Service (QoS) features empower users to prioritize bandwidth-sensitive traffic for Voice over IP (VoIP) and video applications. In order to ensure highly secure guest access for visitors and other users, the Cisco Wi-Fi Dubai supports a captive portal with a variety of authentication options, along with the capability to configure user rights, roles, and bandwidth. A customized guest login page not only provides access details but also reinforces brand identity with the inclusion of company logos and personalized welcome messages.

The setup and usage of the Cisco WAP125 Dubai are hassle-free, thanks to its intuitive wizard-based configuration that enables swift deployment within minutes. Its appealing and compact design, complete with an integrated stand, allows the access point to be conveniently placed on a desk or any other flat surface. To reinforce reliability and safeguard sensitive business information, the Cisco WAP125 Dubai access point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, ensuring robust encryption for all wireless transmissions. Additionally, 802.1X RADIUS authentication serves as an additional layer of security, effectively preventing unauthorized access. Notably, the Cisco Wi-Fi Dubai also features a captive portal for guest access, providing control over internet access for guests and offering an improved customer experience.

Features :

  • Cisco WAP125 Dubai provides cost-effective 802.11ac wireless connectivity for 2.4-GHz and 5-GHz clients with speeds up to 867 Mbps.
  • Gigabit Ethernet LAN interface with Power over Ethernet (PoE) enables flexible installation.
  • Cisco WAP125 Dubai offers simple web-based configuration and mobile friendly setup wizard allows setup in minutes.
  • Cisco WAP125 Dubai supports social media login for guest access (Google and Facebook).
  • Cisco Wi-Fi Dubai is integrated with Cisco Umbrella to help manage security across all wireless devices.
  • Supported by the new Cisco® FindIT Network Management platform for easy management, monitoring and control your Cisco 100, 300 and 500 access points.

Specifications

Technical Specification
Cabling Category 5e or higher
Standards IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (secure authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Antennas Internal antennas optimized for desktop installation
Operating system Linux
Physical Interfaces

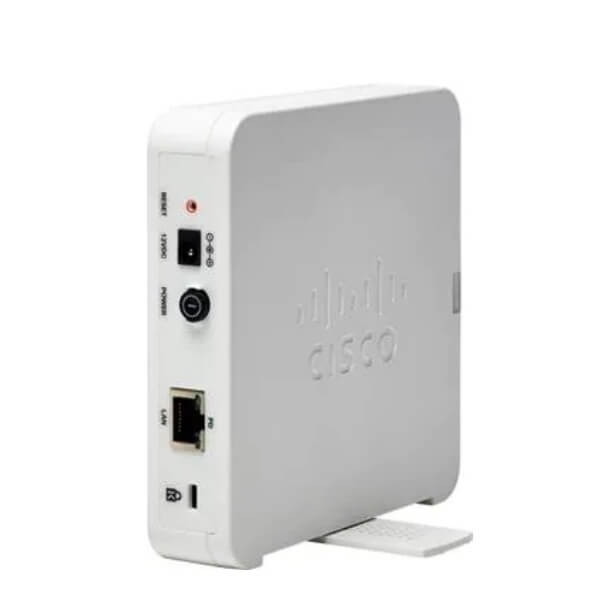

Ports 1 x 10/100/1000 Ethernet, with 802.3af/at PoE support, power port for AC adapter (included)
Power supply 802.3af/at PoE or external 12 V/1 A DC power supply unit
Buttons Reset button, on/off button
Lockout socket Kensington Castle Nest
LEDs One multifunctional LED
Physical specification
Physical dimensions (W x D x H) 123 mm x 123 mm x 31 mm
Weight 303 g
Network capacities
VLAN support Yes
Number of VLANs 1 VLAN manager plus 8 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Automatic channel selection Yes
Spanning Tree Yes
Load balancing Yes
IPv6 Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, NTP protocol
Layer 2 VLANs based on 802.1Q, 8 active VLANs plus 1 VLAN to manage
Security
WPA, WPA2 Yes, including Enterprise authentication
Access control Yes, access control list (ACL), MAC ACL
Safe management HTTPS
SSID broadcast Yes
Detection of hostile access points Yes
Installation and physical safety
Mounting options On the desk
Quality of Service
QoS Wi-Fi traffic and multimedia specification (WMM TSPEC), QoS client
Performance
Wireless network bandwidth Data transfer rate up to 867Mbps (actual throughput may vary)
Number of users Up to 64 connected users, 10 active users per radio
Configuration
User interface Built-in web user interface for easy configuration in the browser (HTTP, HTTPS)
Management
Management protocols Web browser, SNMP (Simple Network Management Protocol) v3, Bonjour
Remote management Yes
Recording of events Local, remote syslog, e-mail alerts
Network diagnostics Registration and interception of packages
Firmware update Possibility to update the firmware via a web browser, imported or exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
Wireless network
Frequency 2.4 GHz and 5 GHz
WLAN
  • 802.11n/ac
  • 2×2 MIMO with 2 streams at 5 GHz
  • 2×2 MIMO with 2 streams at 2.4 GHz
  • 20, 40 and 80 MHz channels for 802.11ac
  • 20 and 40 MHz for 802.11n
  • PHY data rate up to 867 Mbps
Supported data rates
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20 MHz bandwidth : MCS 0-15 for supported data rates
    • 40 MHz bandwidth : MCS 0-15 for supported data rates
  • 802.11ac : 6.5 to 867 Mbps
    • 20 MHz bandwidth : MCS 0-9 for supported data rates
    • 40 MHz bandwidth : MCS 0-9 for supported data rates
    • 80 MHz bandwidth : MCS 0-9 for supported data rates
Wireless insulation Wireless insulation between customers
External antennas None
Internal antennas Internal, fixed PiFA antenna
Antenna reinforcement
  • Maximum antenna gain of 4.02 dBi at 2.4 GHz
  • Maximum antenna gain of 5.63 dBi at 5 GHz
Wireless Distribution System (WDS) Yes
Fast roaming Yes
Multiple SSIDs 8
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with automatic energy saving
Modes of operation
Access point Access point mode, WDS bridge mode, work group bridge mode
Environmental
Power options
  • IEEE 802.3af Ethernet switch
  • PoE Cisco injector : SB-PWR-INJ2-xx
  • 12 V/1 A power supply unit (included)
  • PoE peak power : 6,5 W
Compatibility Security :

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1

Radio authorization :

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • AS/NZS 4268.2003 (Australia and New Zealand)

EMI and sensitivity (Class B) :

  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
Operating temperature 0°C to 40°C
Storage temperature -20°C to 70°C
Moisture 10% to 85%, non-condensing
Storage humidity 5% to 90%, non-condensing
System memory
  • 256 MB RAM
  • 128 MB flash
Package contents
  • WAP125 – access point
  • Quick Start Guide
  • Ethernet network cable
