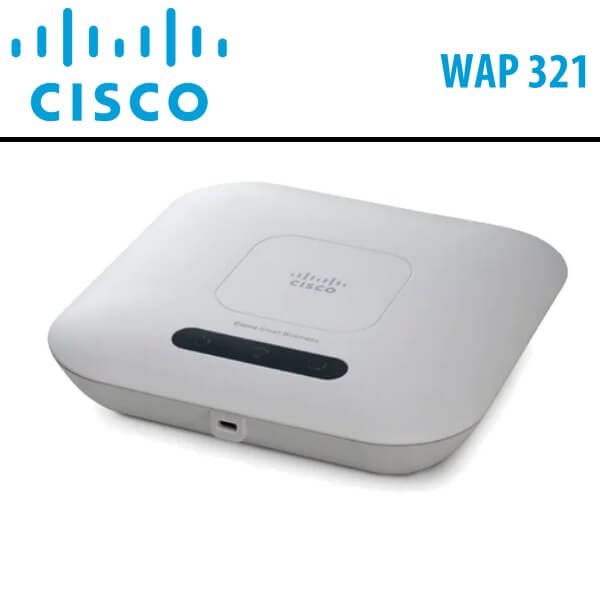

The Cisco WAP321 Dubai Wireless-N Selectable-Band Access Point with Single Point Setup stands out as an elegant, budget-friendly, and easily deployable device, ensuring swift and highly secure wireless connectivity.

Category:

Description

Cisco WAP321 Dubai

The Cisco WAP321 Dubai Wireless-N Selectable-Band Access Point with Single Point Setup stands out as an elegant, budget-friendly, and easily deployable device, ensuring swift and highly secure wireless connectivity. Equipped with a Gigabit Ethernet LAN interface, it supports high-speed connections suitable for demanding applications. This innovative device seamlessly bridges wired LANs together wirelessly, facilitating the expansion of networks for small businesses.

Tailored for the needs of expanding organizations, the Cisco WAP321 Dubai streamlines network scalability by wirelessly bridging wired LANs, effectively reducing cabling and installation costs. It accommodates multiple Service Set Identifiers (SSIDs), enabling the segregation of traffic for different departments, users, and communication devices.

For businesses requiring secure wireless guest access, the Cisco WAP321 Dubai offers captive portal support, facilitating the creation of a wireless hotspot with visitor authentication.

Setting up and using the Cisco WAP321 Dubai is a breeze, thanks to its intuitive wizard-based configuration that ensures a quick start within minutes. Its sleek, compact design, coupled with flexible mounting options, allows the access point to seamlessly integrate into any small business environment. With Power over Ethernet (PoE) support, installation becomes hassle-free, eliminating the need for separate power plugs or costly new wiring.

To bolster reliability and protect sensitive business data, the Cisco Wi-Fi Dubai supports WiFi Protected Access (WPA2), encrypting all wireless transmissions with robust encryption. Additionally, 802.1X RADIUS authentication serves as a security measure, preventing unauthorized access.

The Single Point Setup, a controllerless multi-access point deployment technology, simplifies the deployment and management of multiple access points across your premises in a cost-effective manner. It provides a centralized approach to administer and control wireless services across multiple devices, offering a comprehensive view of the entire WLAN through one access point on the LAN, ensuring consistent configuration, security, and management across all access points.

With the Cisco WAP321 Dubai, you can leverage your existing network to deliver high-performance wireless access, providing the scalability required as your business continues to grow and evolve.

Features

  • Cisco WAP321 Dubai is equipped with a highly secure, high-speed 802.11n wireless networking which delivers enhanced throughput and extended range for bandwidth-intensive applications.
  • Wizard-based setup and configuration enables fast, simple deployment.
  • Single Point Setup controllerless multi-access point deployment and management technology makes configuration simple.
  • Gigabit Ethernet LAN interface provides high-speed connectivity for faster downloads and demanding applications.
  • Selectable-band wireless access lets you switch bands to minimize interference from other office devices and improve performance.
  • Cisco WAP321 Dubai delivers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information.
  • Cisco Wi-Fi Dubai has built-in support for PoE enables easy installation without the expense of additional wiring.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Cisco WAP321 Dubai has elegant, compact design with internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop.
  • Intelligent QoS prioritizes network traffic to keep critical network applications running at top performance.
  • Power-saving sleep mode and port control features help maximize energy efficiency.
  • Highly secure guest access enables safe wireless connectivity for visitors.
  • Cisco WAP321 Dubai has support for IPv6 which lets you deploy future networking applications and operating systems without costly upgrades.

Technical Specs

Specifications Description
Standards IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Ports Ethernet, Power
Switch Power button (on/off)
Buttons Reset
Cabling type Category 5e or better
LEDs Power, Wireless, LAN
Operating system Linux
Physical Interfaces
Ports Gigabit Ethernet, 12V DC power with support for 802.3af PoE
Power supply Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE
Buttons Power (on/off) push button; Reset button
Lock slot Slot for Kensington lock
LED Power, Wireless, Ethernet
Physical Specifications
Physical dimensions (W x D x H) 6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm)
Weight 0.606 lb or 275g
PoE
PoE 802.3af
Peak PoE power 10.6W
Network Capabilities
Network protocols IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)
VLAN support Yes
Number of VLANs 1 management VLAN plus 8 VLANs for SSID
Multiple SSIDs 8
802.1X supplicant Yes
802.11d No
SSID to VLAN mapping Yes
Auto channel selection Yes
Spanning tree Yes
Load balancing Yes
IPv6 Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
Layer 2 802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN
Security
WEP/WPA/WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
Wi-Fi Protected Setup (WPS) Yes (soft WPS, no hardware push button)
SSID broadcast Yes
Rogue access point detection Yes
Mounting and Physical Security
Multiple mounting options Desktop installation; mounting bracket included for easy ceiling or wall mounting
Physical security lock Kensington lock slot
Quality of Service
Quality of service (QoS) Wi-Fi Multimedia Traffic Specification (WMM TSPEC)
Performance
Wireless throughput Data rate =300 Mbps; actual client throughput will vary.
Recommended user support Up to 32 connective users, 20 active users
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Multi-Access Point Management
Single Point Setup Yes
Maximum access points per cluster 8
Active clients per cluster 80
Management
Management protocols Web browser, SNMP v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes, and captive portal
Wireless
Frequency Selectable-band 2.4 GHz or 5 GHz (not concurrent)
Radio and modulation type Single radio, orthogonal frequency division multiplexing (OFDM)
WLAN 802.11n
Operating channels 1 to 13 (depending on country)
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas Internal fixed PIFA antenna
Antenna gain in dBi 2 dBi each antenna
Transmitted output power
  • 802.11b @ 11 Mbps : 17 dBm
  • 802.11g @ 54 Mbps : 13 dBm
  • 802.11n @ HT20HT40, MCS15 : 13 dBm
Receiver sensitivity
  • 802.11b : 11 Mbps @ –86 dBm
  • 802.11g : 54 Mbps @ –71 dBm
  • 802.11n : 300 Mbps @  –64 dBm
Wireless Distribution System (WDS) Yes
Roaming Yes
Fast roaming 802.11i pre-authentication
Active WLAN clients Same as number of users : 32 max connected users, 20 active users recommended
Multiple SSIDs 8
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with automatic power save, and Voice profile
Operating Modes
Access point Access Point mode, WDS bridging, Workgroup Bridge mode
Environmental
Power 12V 1A DC input, and IEEE 802.3af compliant PoE
Certifications FCC class B, CE, IC, Wi-Fi
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature –20° to 70°C (–4° to 158°F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
Mean time between failures (MTBF) 492281 hours
Package Contents
  • Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup
  • Ceiling/wall mounting kit
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable
