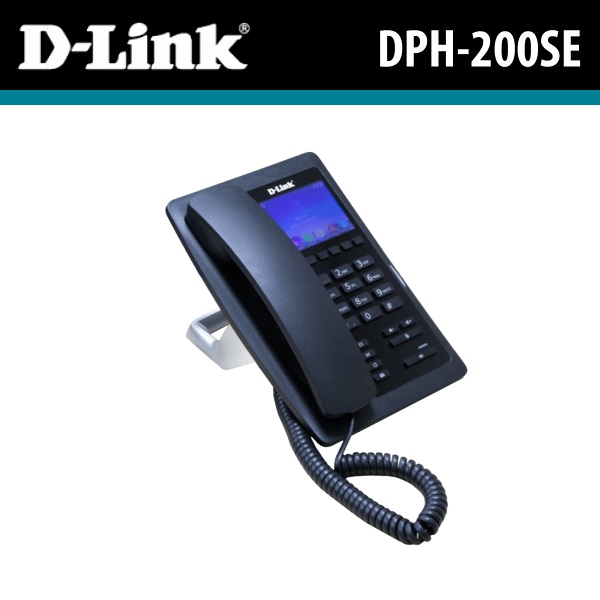

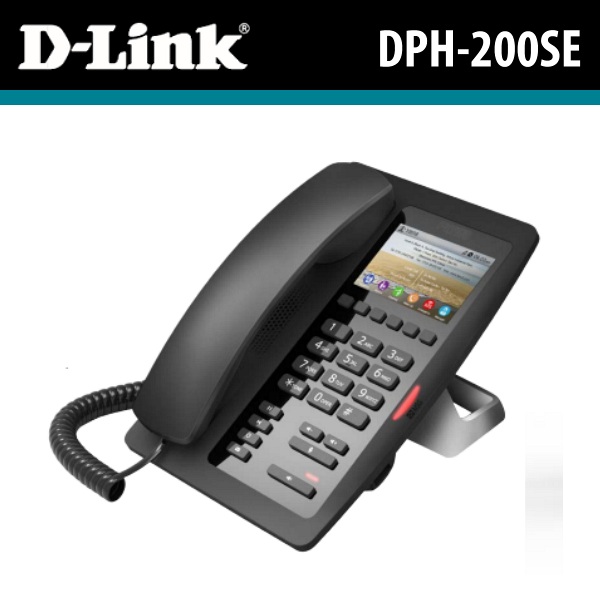

D-Link DPH-200SE Dubai
The D-Link DPH-200SE Dubai is a SIP-based VoIP phone that offers a range of features designed for small to medium-sized businesses. This phone provides clear and natural-sounding audio thanks to its HD voice quality, which is ideal for conference calls and conversations with clients. The phone’s large, backlit LCD display and programmable soft keys make it easy to access frequently used functions and speed dial numbers. It also features a range of call features such as call waiting, call transfer, call hold, and call forwarding.
The D-Link DPH-200SE Dubai is easy to set up and configure, and it supports PoE (Power over Ethernet), which eliminates the need for an external power supply. The phone also supports the latest SIP protocol, which makes it compatible with most IP PBXs (Private Branch Exchanges) and SIP-based services.
One of the key features of the D-Link DPH-200SE Dubai is its security features. The phone supports secure RTP (Real-Time Transport Protocol) and SRTP (Secure Real-Time Transport Protocol) for encrypted voice communication. It also supports TLS (Transport Layer Security) and HTTPS (Hypertext Transfer Protocol Secure) for secure signaling.
The D-Link DPH-200SE Dubai is also designed with user convenience in mind. It features a built-in web interface that allows users to configure the phone remotely, as well as an auto-provisioning feature that simplifies deployment across multiple devices. The phone’s sleek and modern design complements any workspace, and it has a sturdy construction that ensures durability.
Overall, the D-Link DPH-200SE Dubai is an affordable and reliable SIP phone that offers a range of features ideal for small to medium-sized businesses. Its HD voice quality, security features, and user-friendly interface make it a versatile and cost-effective choice for businesses looking to upgrade their phone systems.
D-Link DPH-200SE Specifications
Phone Features
- VxWorks OS
- Support SIP2.0 (RFC3261) and correlative RFCs SIP support 1 SIP servers, and backup SIP proxy servers
- Supports SIP UDP / TCP/ TLS SIP support SIP domain, SIP authentication
Key Features
- 6 Soft keys programmable
- Multi languages displayed
Audio
- HD voice: HD handset
- Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722,G.726-32
- DTMF: in-band, RFC2833 and SIP INFO
- Full-duplex Acoustic Echo Canceller (AEC) –Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Advanced Features
- Call transfer (unattended/ attended/ semi-attended)
- Call holding
- Call waiting
- Redial
- Call completion
- MWI
- Flexible dial plan
- Barring function for outgoing calls
- Do not disturb
- Auto answer
- CLIR (rejects anonymous calls)
- CLIP (to make an anonymous call) Dial without registration
- Call logs with missed calls/ incoming calls/ outgoing
Network/ Security Features
- WAN / LAN: 10/100M Ethernet ports (Bridge mode)
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP (Basic Unencrypted) / OpenVPN
- VLAN
- QoS
Deployment
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD: 3.5inch (480×320) color screen
- Adapter Input: AC100-240V
- Adapter Output: DC 5V/1A
- WAN Port -10/100 BASE-T RJ-45 for LAN
- LAN Port-10/100 BASE-T RJ-45 for PC
- Handset: RJ9
- Power consumption: IDLE: 2.5W Active: 2.8W
- Operation Temperature: 0〜40 ℃
- Relative Humidity: 10〜65%
- Main Chipset: Broadcom
- SDRAM: 16MB
- FLASH: 8MB
- Dimension: 213x170x130 mm
